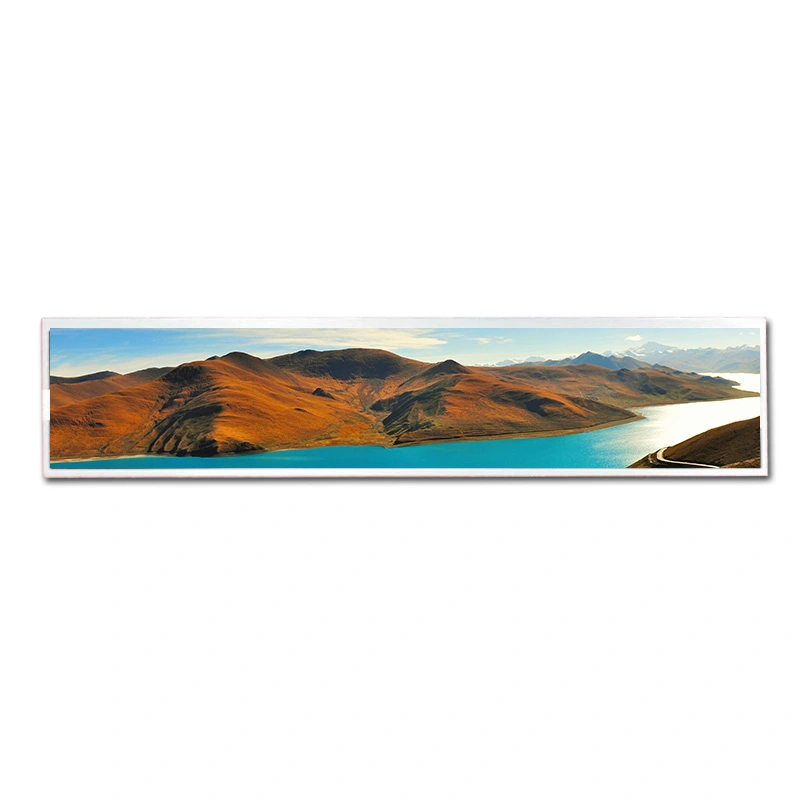

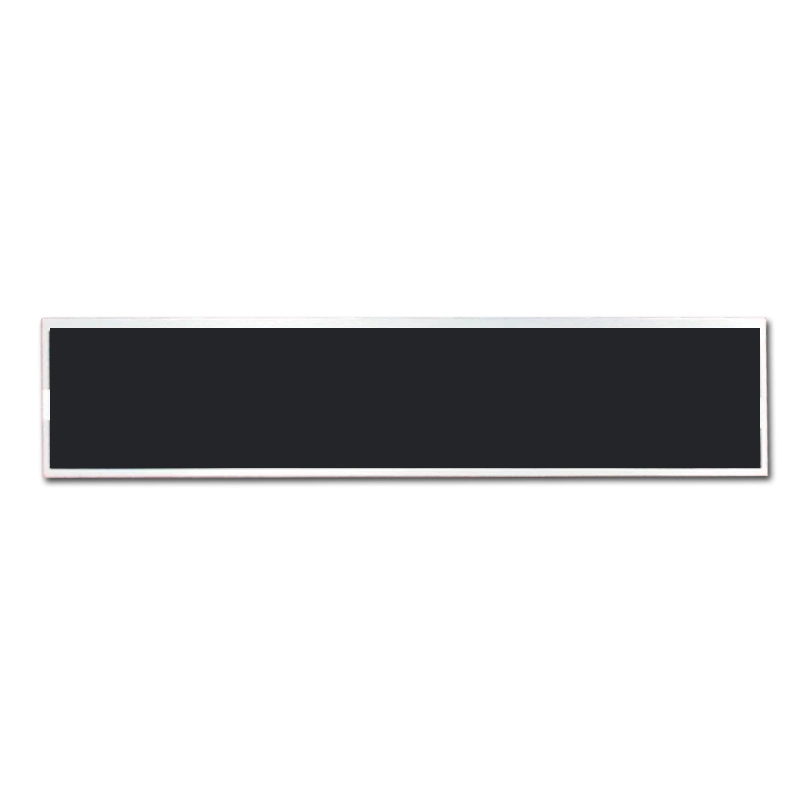

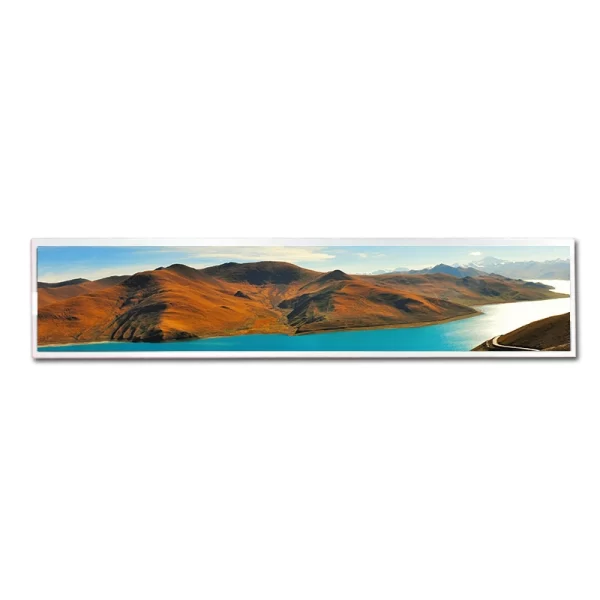

BOE QV190FBM-N10 TFT Panel 19 inch Bar Type Screen 1920×360

SKU: DS50291
Size:

Resolution:

Interface:

Operating Temperature:

-0℃~50℃

Brightness(cd/m²):

300

Touchscreen Support:

Display Type:

BOE QV190FBM-N10 TFT Panel, 19inch, 1920×360, IPS wide viewing angle, Long stretched screen for transportation and advertising.

$99.00
Request Volume Pricing







    Description

    BOE QV190FBM-N10 Description

    BOE QV190FBM-N10: Original Grade A LCD Panels
    Excellent stability and reliability, 1920×360 bar-type panels are ideal for transportation, advertising, and other demanding applications. Widely sold both domestically and internationally, our strip-shaped displays deliver consistent performance and visual clarity for large-scale information display and commercial promotion.

    Key Features:

    BOE original Grade A panels with strict quality control
    Ultra-wide resolution 1920×360 for panoramic content display
    Engineered for high-reliability environments (transportation hubs, outdoor advertising)
    Global market presence with proven sales track record

    19″ TFT Display Specifications

    Model Number QV190FBM-N10
    Size 19
    Resolution 1920*360
    Outline Dimension 491.5*109.4*8.4
    Active Area 476.64*89.37
    Brightness(cd/m²) 300
    Interface LVDS
    View Direction ALL
    Operating Temperature -0~50
    Storage Temperature -20~60
    LED Lifetime 30000
    Touchscreen Support No
    Contrast Ratio 1200:1
    Power Supply 3.3V
    Display Type Color LCD

    19″ TFT LCD Custom Solutions

    Optimize Your Cable Solutions

    Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

    LCD Interface Customization

    Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.

    Elevate User Experience with Touch Screen Technology

    Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.

    custom touch

    Custom Cover Glass

    Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.

    Additional information

    Size:

    Resolution:

    Interface:

    Operating Temperature:

    -0℃~50℃

    Brightness(cd/m²):

    300

    Touchscreen Support:

    Display Type:

    Custom Display Solutions

    Work with our engineering experts to create the perfect display for your application.
