Description
M101NWWB R3 General Desription
The IVO M101NWWB R3 is a 10.1-inch color LCD screen with 1280×800 resolution and IPS technology, delivering 85° wide viewing angles for consistent image quality. Boasting 350 cd/m² brightness and an 800:1 contrast ratio, it ensures vivid visuals even under direct sunlight. Designed for extreme conditions, it operates reliably in temperatures from -20°C to 70°C and survives storage at -30°C~80°C. The LVDS interface guarantees stable signal transmission for industrial systems, while the ultra-slim 4.56mm profile (229.46×149.1mm outline) saves space. With a 25,000-hour LED lifespan and low 3.3V power consumption, it’s built for 24/7 reliability in demanding applications.
Application & Performanc
Perfect for industrial automation, outdoor digital signage, and automotive dashboards, the IVO M101NWWB R3 thrives in harsh environments. Its wide temperature range supports freezer monitoring, desert machinery, and cold-chain logistics. The LVDS interface ensures noise-free connectivity for CNC controls, factory HMIs, and rugged IoT devices. The anti-glare IPS panel enhances readability in bright sunlight, ideal for construction equipment, EV charging stations, and agricultural displays. With shock-resistant construction and a 25,000-hour lifespan, it reduces maintenance costs in mining, transportation, and energy sectors. Compact and durable, it seamlessly integrates into portable medical devices, marine navigation systems, and smart retail kiosks.
10.1" Product Specifications
| Diagonal Size | 10.1 inch |
|---|---|
| Pixel Number | 1280×800 |
| Luminance | 350 |

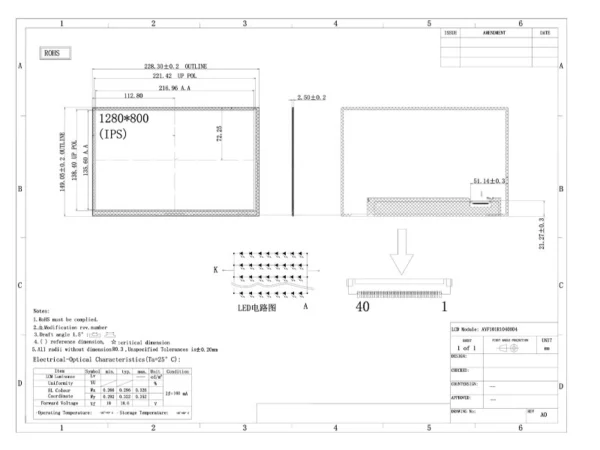

| Module Size | 229.46×149.1×4.56 |
| Active Area | 216.96×135.6 |
| Viewing Direction | IPS |
| View Angle(U/D/R/L) | 85/85/85/85 |
| Interface | LVDS |
| Contrast Ratio | 800 : 1 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| LED Lifetime | 25000 |
| Power Supply | 3.3V |
| Touchscreen Support | Without |
| Display Type | Color TFT |
IVO LCD Display Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
