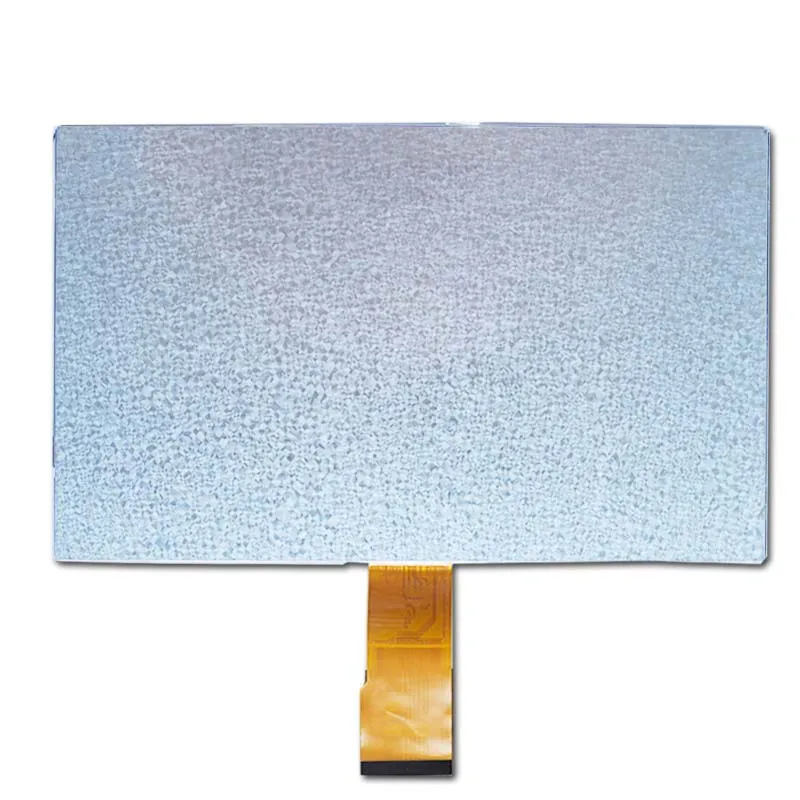

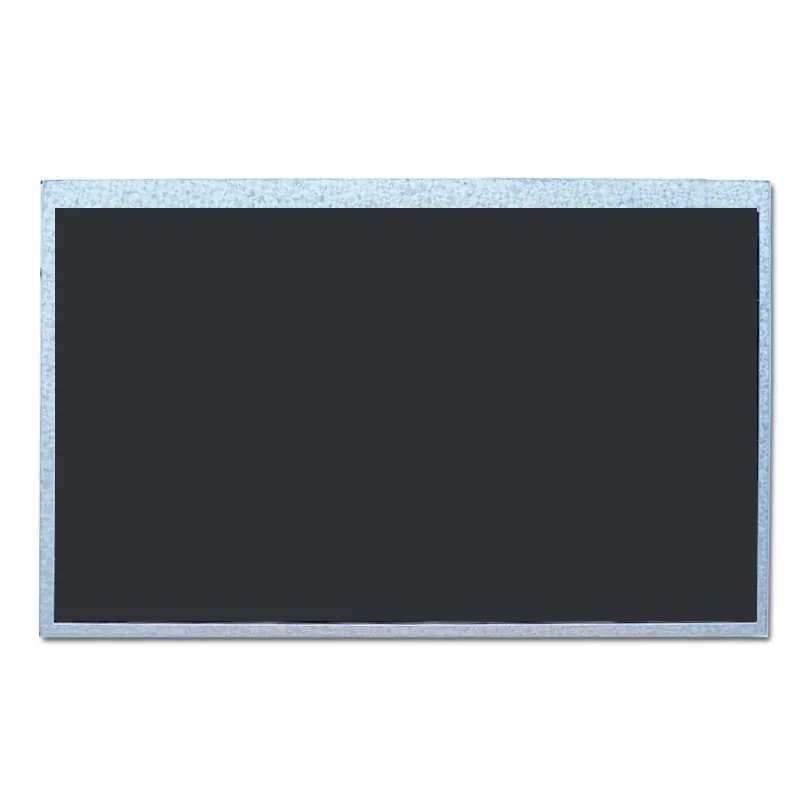

10.1 inch LCD Display IPS 1024*600 LVDS Interface

Artikelnummer: DS20084
Größe:

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

400

Touchscreen-Unterstützung:

Anzeige Typ:

10.1 inch LCD Display IPS, Offering resolution 1024*600 Pixels,  Serial LVDS Interface,  Medical/ Industrial/Vehicle/Military Grade

Preisanfrage für Volumen







    Beschreibung

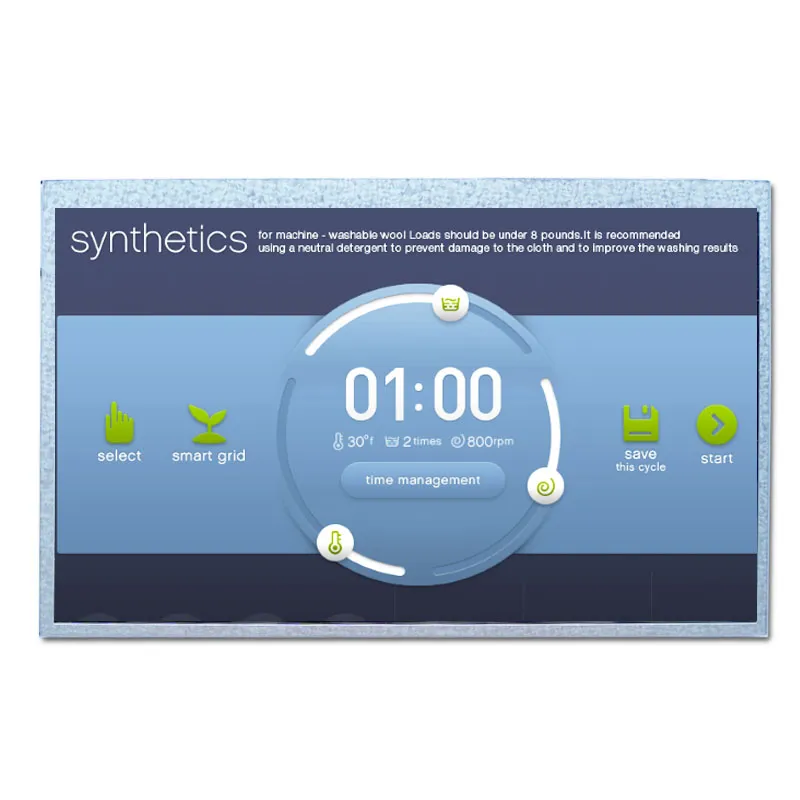

    10.1" LCD Display IPS Features

    This LCD display IPS offers a wide viewing angle of 85° in all directions, ensuring consistent image quality and color accuracy. With a brightness level of 400 cd/m², the display provides excellent visibility in diverse lighting conditions, making it suitable for both indoor and outdoor use.

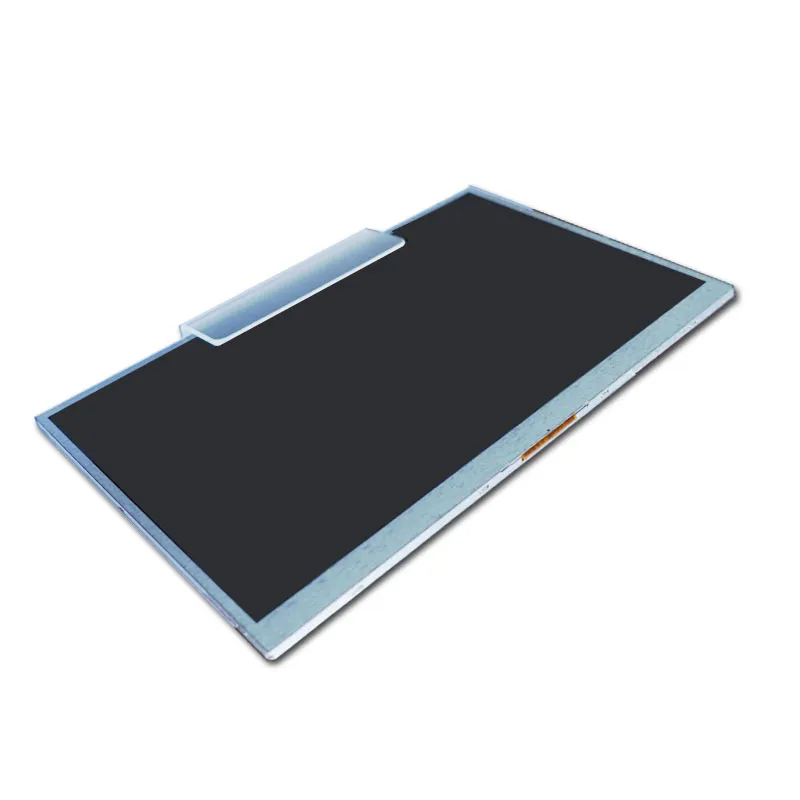

    10.1" LVDS LCD Panel

    The LVDS interface is a high-speed standard that utilizes differential signaling to transmit data, significantly reducing electromagnetic interference (EMI) and enabling fast data transfer rates. This capability is essential for rendering high-resolution images and videos smoothly, making it ideal for applications that require dynamic content. Additionally, the LVDS design minimizes power consumption compared to other signaling methods, making it particularly suitable for battery-operated devices, enhancing overall efficiency in modern electronics.

    10.1" TFT-LCD Product Specifications

    Modellnummer  90-10122-BH1
    Größe 10.1
    Auflösung 1024*600

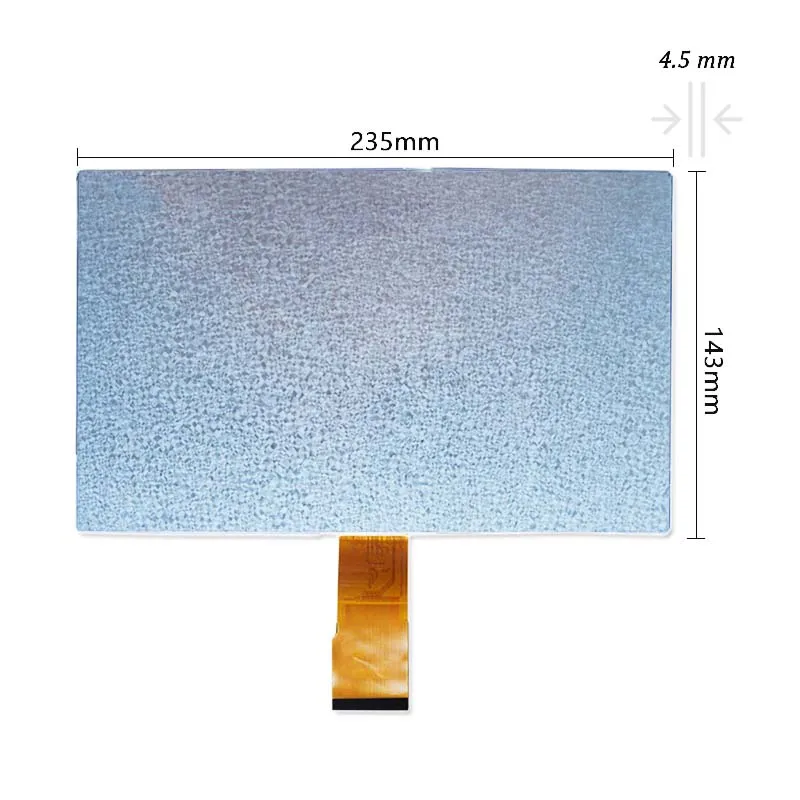

    Umriss Dimension 235*143*4.5
    Aktiver Bereich 222.72*125.28
    Helligkeit(cd/m²) 400
    Schnittstelle LVDS
    Ansicht Richtung ALLE
    Betriebstemperatur -20~70
    Lagertemperatur -30~80
    LED-Lebensdauer 20000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 800:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    10.1" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    10.1-Inch 1024 × 600 LVDS LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 10.1-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 1024 × 600 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 400 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Individuelle Display-Lösungen

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    400

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
