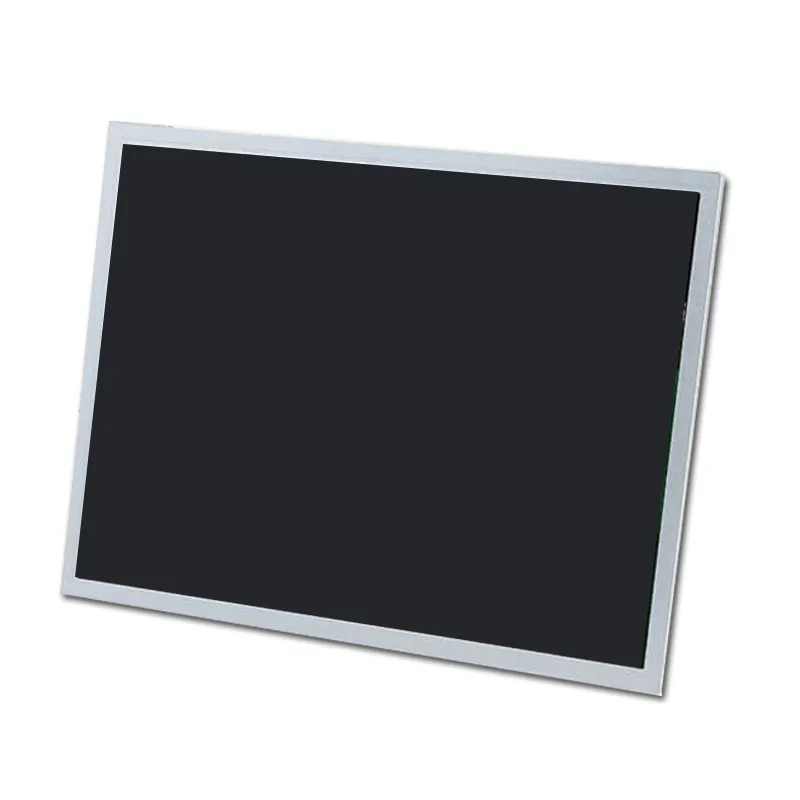

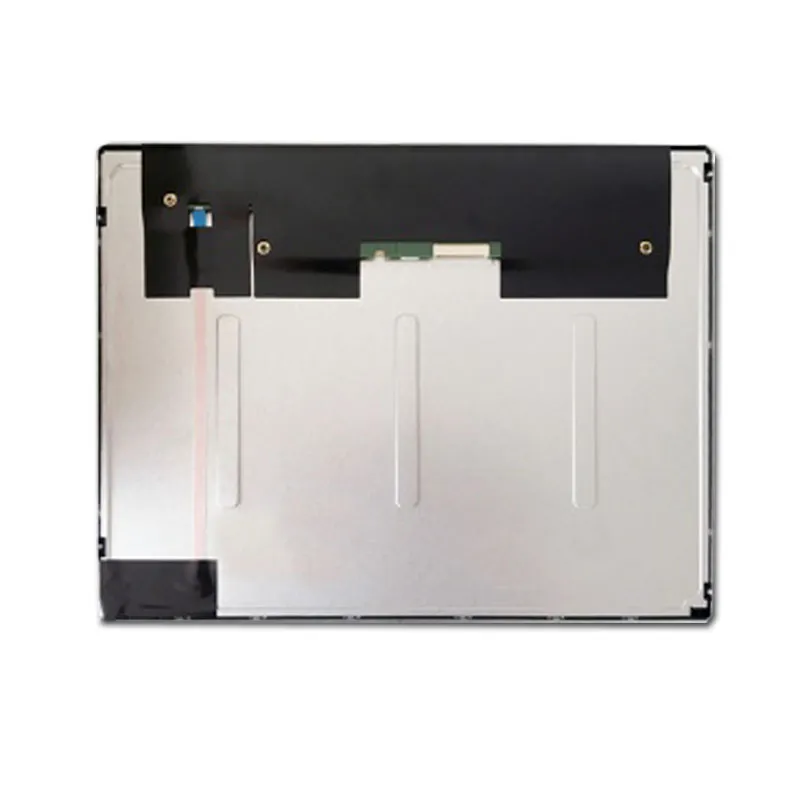

15” Rugged industrial display Innolux G150XNE-L02 - 1024x768, 350nits, -30~70°C, LVDS

Artikelnummer: DS50200
Größe:

Modellnummer

G150XNE-L02

Auflösung:

Schnittstelle:

Betriebstemperatur:

-30℃~70℃

Helligkeit (cd/m²):

350

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

Ultra-Rugged & Long-Lasting! Innolux G150XNE-L02: 15.0" IPS Display, 1024x768, 350nits, -30°C~70°C, 70K Hrs

Preisanfrage für Volumen







    Beschreibung

    Innolux G150XNE-L02 General Description

    Innolux G150XNE-L02 – a 15.0-inch IPS LCD panel engineered for extreme durability and mission-critical performance. With a 1024x768 resolution and 350nits brightness, it delivers crisp visuals and 178° wide viewing angles, perfect for industrial control systems, ruggedized equipment, and 24/7 commercial applications.
    Built to conquer the toughest environments, this display thrives in -30°C to 70°C temperatures and boasts an exceptional 70,000-hour lifespan – 2x longer than standard panels. Its LVDS interface ensures stable connectivity for industrial PCs, embedded controllers, and IoT devices, while IPS technology guarantees consistent color accuracy in harsh lighting conditions.
    Why It Stands Out:
    ✅ Extreme Endurance: Dust-resistant, shockproof design for heavy machinery and outdoor use.
    ✅ Cost-Efficient Longevity: 70K-hour lifespan reduces replacement costs in continuous operations.
    ✅ Adaptive Visibility: 350nits brightness with anti-glare options for sunlit or high-ambient areas.
    ✅ Seamless Integration: LVDS support for plug-and-play compatibility with legacy systems.



    G150XNE-L02 Rugged Industrial Display Application

    Mining/agricultural machinery dashboards
    Factory automation HMI panels
    Transportation fleet monitoring systems
    Energy/power station control displays
    Customize with sunlight-readable enhancements, multi-touch overlays, or IP65-rated enclosures for specialized deployments.

    15" TFT-LCD Product Specifications

    Modellnummer G150XNE-L02
    Größe 15.0
    Auflösung 1024(RGB)×768
    Umriss Dimension 326.5×253.5×9.6
    Aktiver Bereich 304.128×228.096
    Helligkeit(cd/m²) 350
    Schnittstelle LVDS
    Ansicht Richtung IPS
    Betriebstemperatur -30~70
    Lagertemperatur -40~70
    LED-Lebensdauer 70000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 2500:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    15" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    Innolux G150XNE-L02 15-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G150XNE-L02?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 15-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G150XNE-L02?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux G150XNE-L02 compare with the AUO G150XTN06.4?

    Both catalog listings show 15 inches, 1024 × 768 and LVDS. The catalog lists −30 °C to +70 °C for the Innolux panel and −30 °C to +85 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G150XTN06.4

    Is the Innolux G150XNE-L02 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G150XNE-L02

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -30℃~70℃

    Helligkeit (cd/m²):

    350

    Touchscreen-Unterstützung:

    Anzeige Typ:
