19.5 inch Bar Screen Monitor Resolution 1920*540 High Contrast Ratio 3000:1

Artikelnummer: DS30001
Größe:

Auflösung:

Schnittstelle:

, , ,

Helligkeit (cd/m²):

500

Betriebstemperatur:

-0℃~50℃

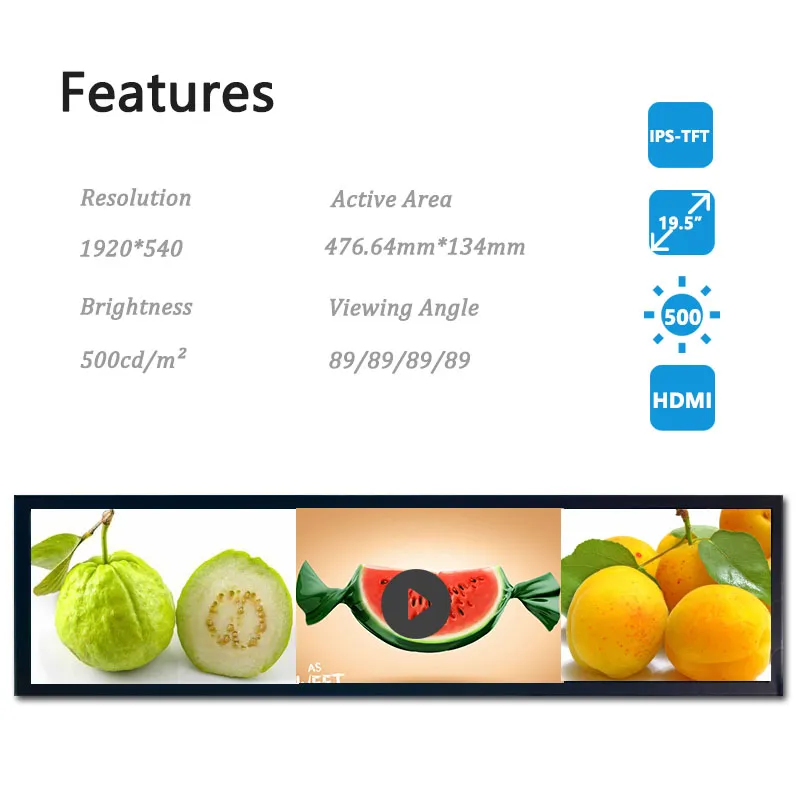

19.5 inch Bar Screen Monitor, offering resolution 1920*540, Aspect Ratio 32:9, Brightness 500cd/m2, Interface with USB*2/RS232/RJ45/DC IN

Preisanfrage für Volumen







    Beschreibung

    19.5 inch Bar screen monitor main features:

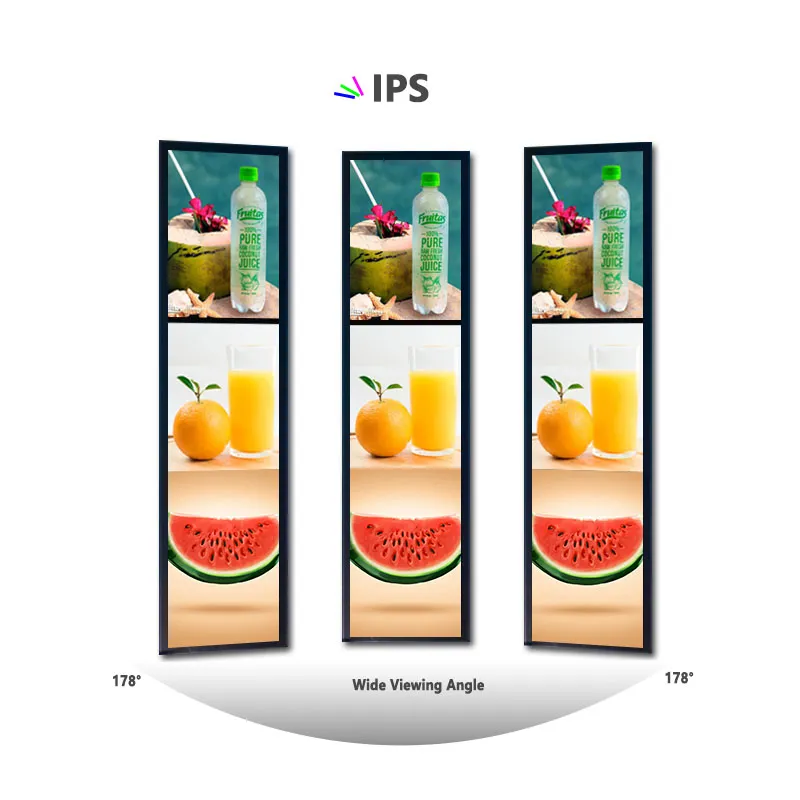

    • 178° ultra-wide viewing angle, 3000:1 high contrast ratio
    • High-definition picture quality, smooth playback
    • Long-strip display, can be hung horizontally or vertically
    • Sheet metal frame, protects screen from bumps
    • Brightness 300~500cd/m2 adjustable, appearance color customizable, driver motherboard solution customizable

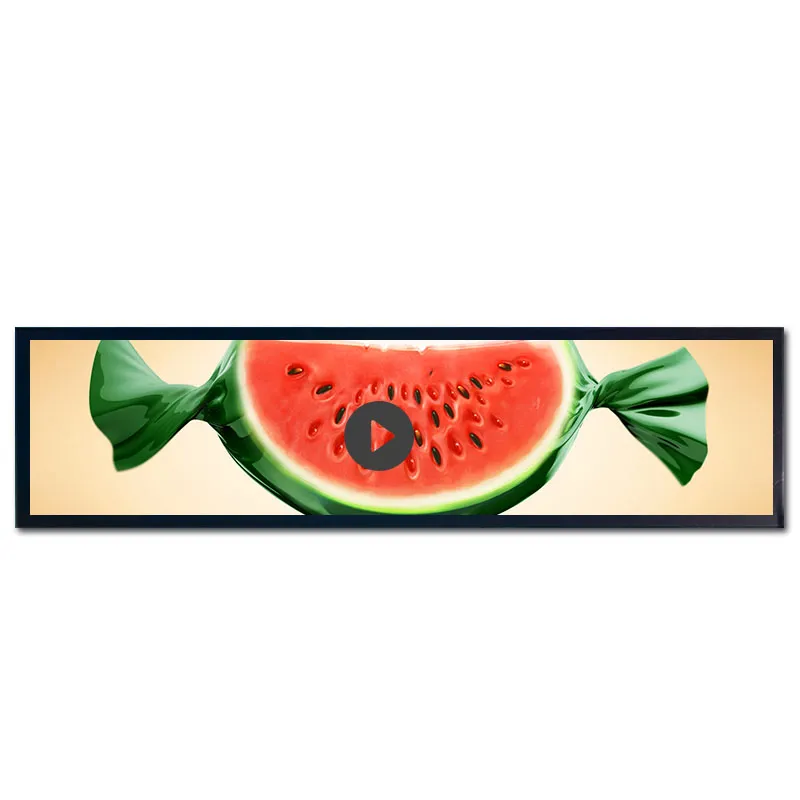

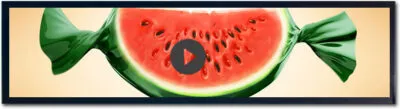

    19.5 inch bar screen monitors



    19.5 inch Bar screen monitor Specification

    LCD Display Screen Size 19.5 inch
    Aktiver Bereich 476.64x134(mm)
    Outline 500x159x34.5(mm)
    Screen Type a-Si TFT-LCD
    Pixel Zahl 1920*540
    Aspect Ratio 32:9
    Luminance 500 cd/m2
    Kontrastverhältnis 3000:1
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
    Color Depth 16.7M   68% NTSC
    Response 13/5(Typ.)(Tr/td)ms
    Pixel Pitch 0.3645×0.3645 mm
    Mainboard CPU A40
    Ram -
    Flash -
    O/S -
    Schnittstelle USB*2/RS232/RJ45/DC IN
    Machine Appearance and Structure Sheet Metal
    Color Black
    Peripheral WIFI/Speaker*2
    Power supply DC12V
    Power consumption ≦20W
    Betriebstemperatur 0℃~50℃
    Lagertemperatur -20℃~60℃
    Installation method Wall hanging
    Net weight 2.2Kg
    Corton size
    Number of boxes -
    Corton weight -

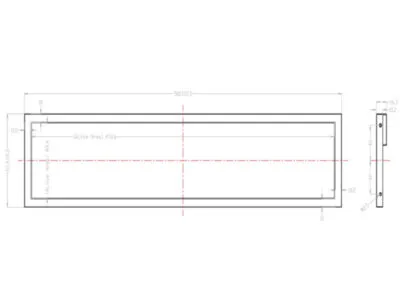

    Drawing and photo 19inch bar lcd draw line

    19.5-Inch 1920 × 540 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 19.5-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    Send us your source model and OS or firmware version so we can check the required interface, pinout and electrical limits against the exact product documentation. Check which port carries video and how power is supplied.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 1920 × 540 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    , , ,

    Helligkeit (cd/m²):

    500

    Betriebstemperatur:

    -0℃~50℃

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
