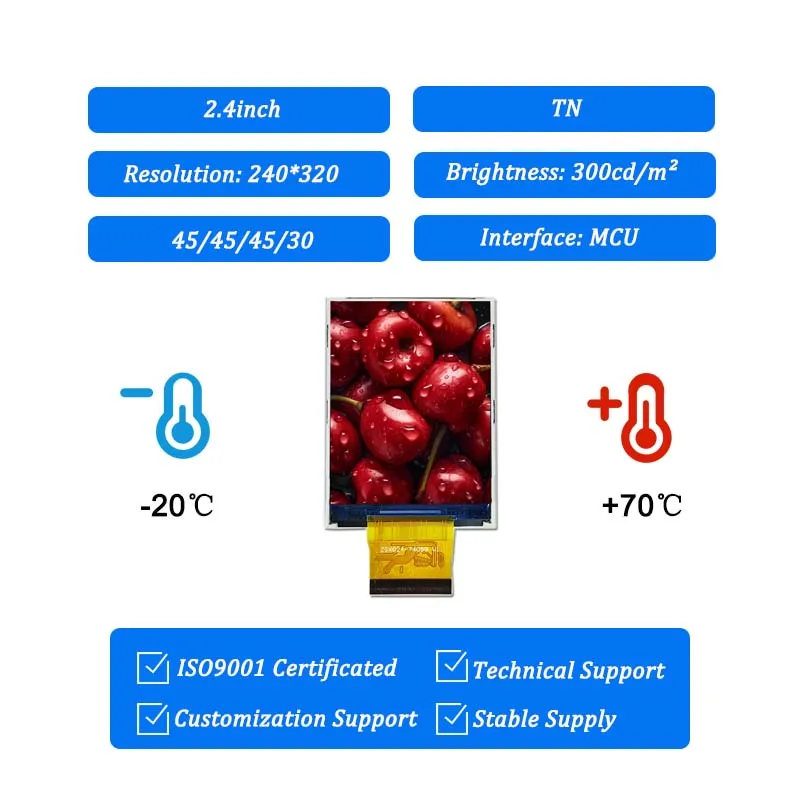

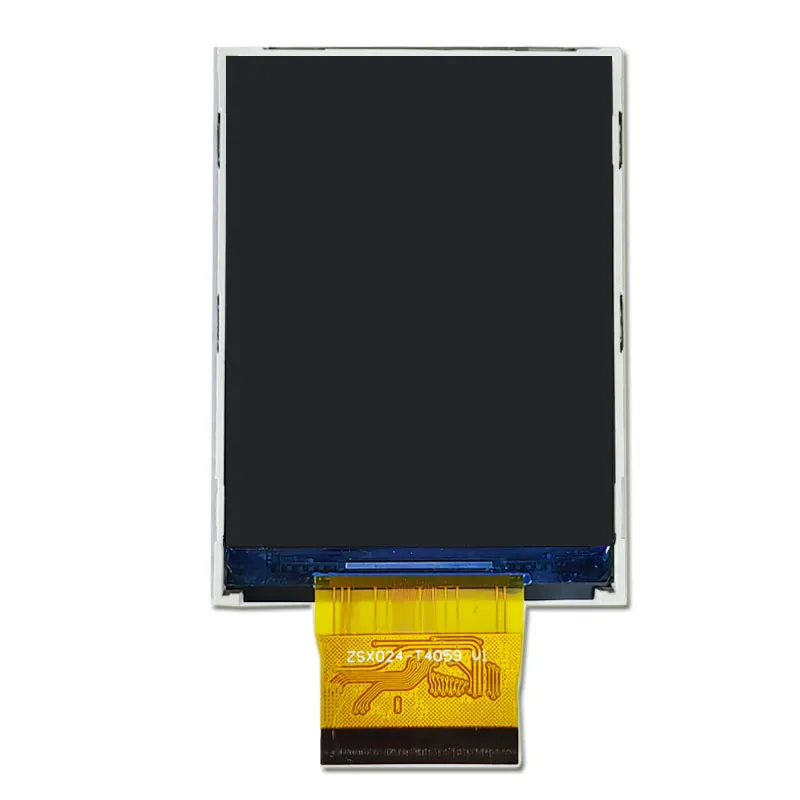

2.4 inch Industrial 240*320 MCU TFT LCD Module

Artikelnummer: DS20009
Größe:

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

300

Touchscreen-Unterstützung:

Anzeige Typ:

2.4 inch tft lcd module  240*320 Pixels  Serial MCU Interface  40 pin FFC ZIF Connection  Customized touch screen

Preisanfrage für Volumen







    Beschreibung

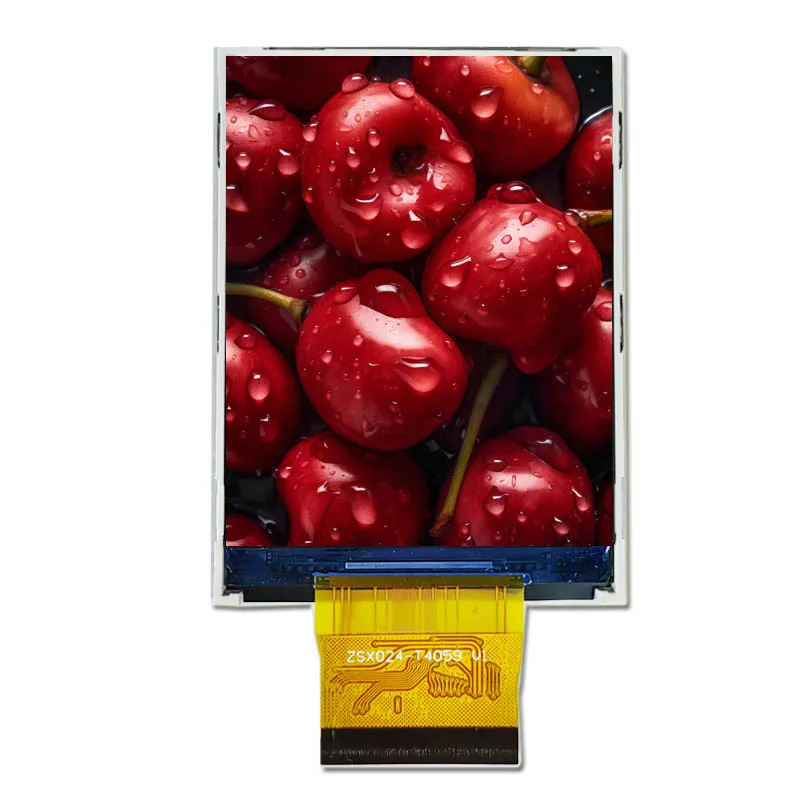

    2.4 inch TFT LCD Module Features

    The 2.4 inch TFT LCD Module is designed for robust performance, operating efficiently within a temperature range of -20°C to 70°C and allowing safe storage from -30°C to 80°C . which ensures flexibility for various environments . It features an MCU (Microcontroller Unit) interface with a 40-pin connection, enabling seamless integration with modern microcontrollers for efficient data transfer and communication . We rate the LED backlight for 20,000 hours to ensure long-lasting performance and reliability across diverse applications.



    2.4”  TFT Screen Application

    The 2.4 inch TFT LCD Module is highly versatile, making it suitable for a range of applications across multiple industries. In consumer electronics, its compact size and vibrant visuals enhance user experience in smartphones, gaming consoles, digital cameras, and remote controls for TVs and home theaters . In embedded systems, it integrates seamlessly into industrial control panels for real-time monitoring and smart home devices for user-friendly interaction . Ideal for wearable technology, the module serves smartwatches and fitness trackers by displaying notifications and health metrics energy-efficiently. In the medical field, we utilize it in patient monitors and portable diagnostic equipment to provide clear, accurate displays of vital signs and essential data for healthcare professionals.

    2.4 inch TFT LCD Module Product Specifications

    Modellnummer  90-02405-001
    Größe  2.4
    Auflösung 240*320

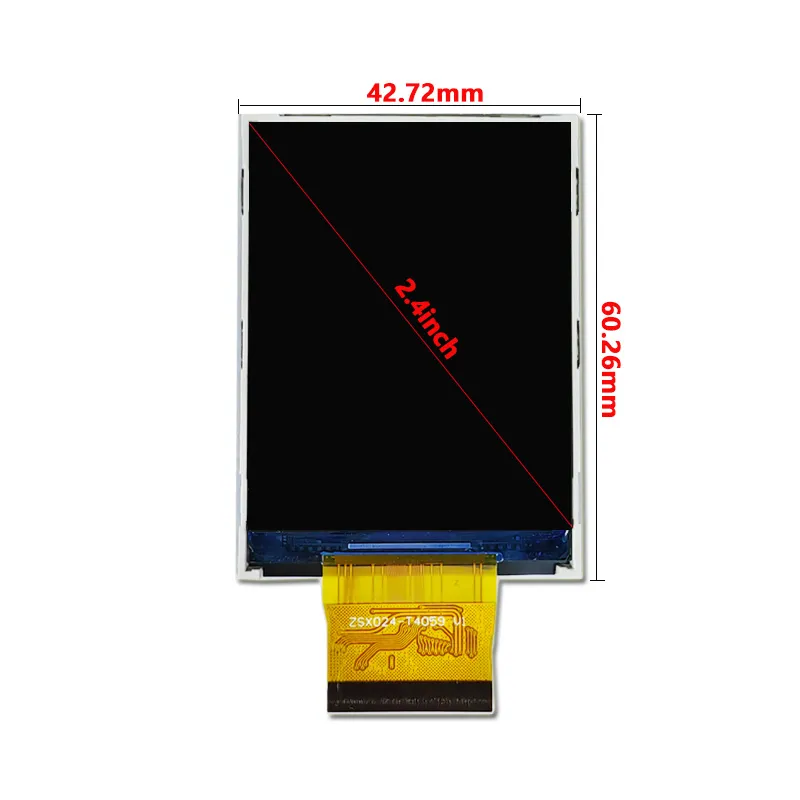

    Umriss Dimension 42.72*60.26*2.35
    Aktiver Bereich 36.72*48.96
    Helligkeit(cd/m²) 300
    Schnittstelle MCU
    Ansicht Richtung 12 O"clock
    Betriebstemperatur -20~70
    Lagertemperatur -30~80
    LED-Lebensdauer 20000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 800:1
    Stromversorgung 3.3v
    Anzeige Typ Farb-LCD

    2.4" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality . We design a customized cable solution to streamline your connections and ensure secure, reliable performance.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    2.4-Inch 240 × 320 TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 2.4-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 240 × 320 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MCU interface, match the exact bus mode, pin assignments, logic levels and display controller commands. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 300 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
