2.8 inch IPS 240*320 MCU TFT Colour Display

Artikelnummer: DS20013
Größe:

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

300

Touchscreen-Unterstützung:

Anzeige Typ:

2.8 inch TFT Colour Display  240*320 Pixels  Serial MCU Interface  24 pin FFC ZIF Connection  Customized touch screen

Preisanfrage für Volumen







    Beschreibung

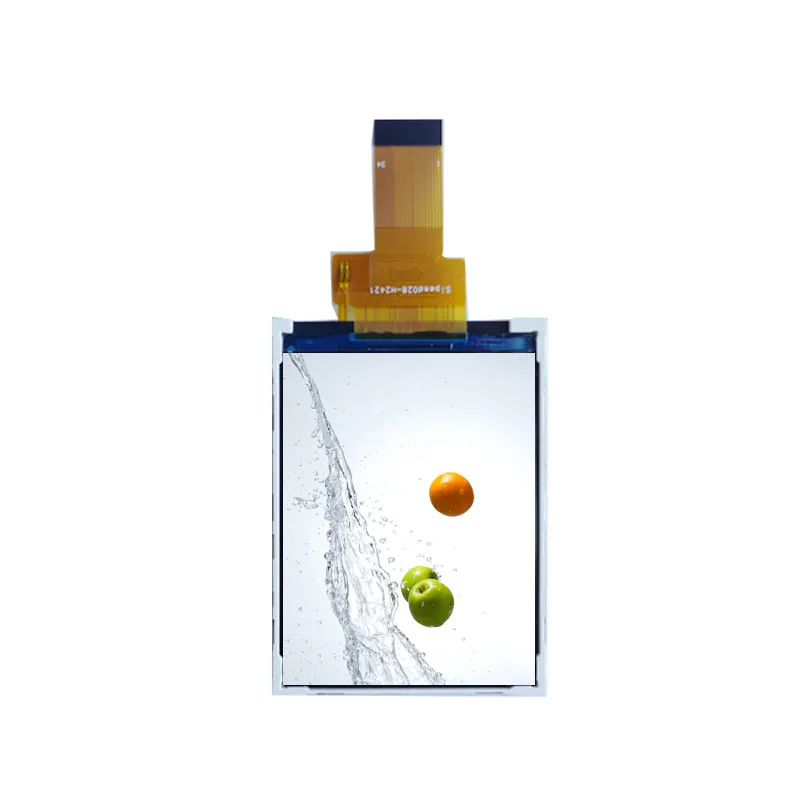

    2.8" Industrial LCD TFT Module

    The 2.8 inch TFT Colour Display offers vibrant visuals with a resolution of 240x320 pixels, makes it well-suited for various applications, including consumer electronics like smartphones and tablets, where high-quality visuals and interactivity are essential. In gaming devices, it enhances the experience with vibrant colors and wide viewing angles, crucial for immersive gameplay. The module is also ideal for industrial displays, providing the clarity and accuracy needed in control panels and monitoring systems. Furthermore, in medical devices, it ensures that critical data is displayed accurately and clearly, which is vital in healthcare settings.



    2.8" LCD TFT Module IPS Technology

    IPS technology offers exceptional viewing angles of up to 80° in all directions, ensuring consistent and accurate colors and brightness regardless of the viewer's position. This feature is particularly beneficial for applications where multiple users may view the display simultaneously. Additionally, modern IPS technology has enhanced response times, effectively reducing motion blur and ghosting effects. This responsiveness is advantageous for dynamic content, such as videos and fast-paced games, providing smooth transitions and interactions for an improved user experience.

    2.8" TFT-LCD Product Specifications

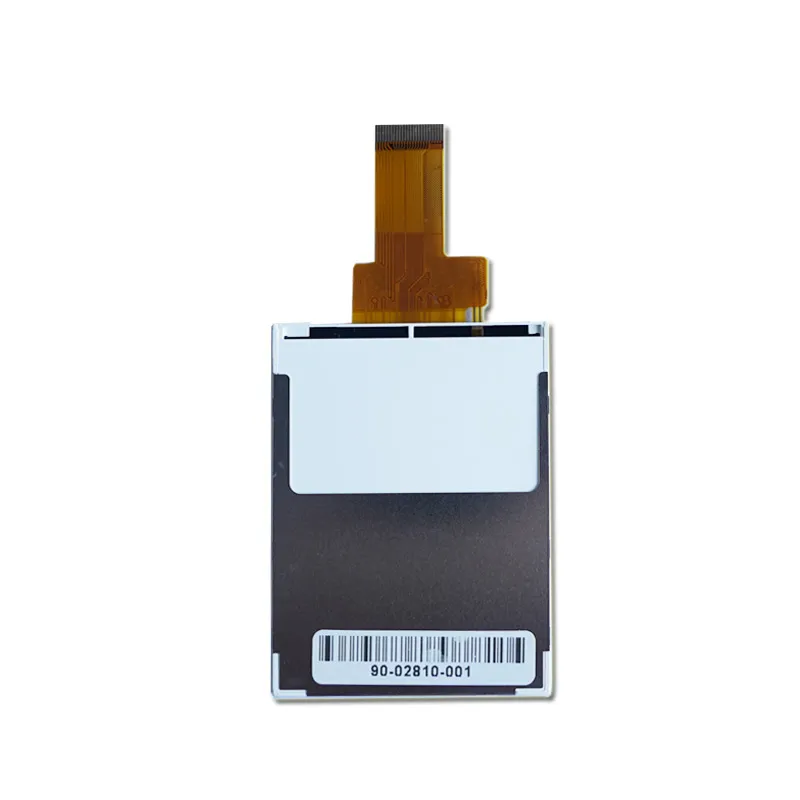

    Modellnummer  90-02810-001
    Größe  2.8
    Auflösung 240*320
    Umriss Dimension 50*69.2*2.3
    Aktiver Bereich 43.2*57.6
    Helligkeit(cd/m²) 300
    Schnittstelle MCU
    Ansicht Richtung ALLE
    Betriebstemperatur -20~70
    Lagertemperatur -30~80
    LED-Lebensdauer 20000
    Touchscreen-Unterstützung Witout
    Kontrastverhältnis 800:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    2.8" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    2.8-Inch 240 × 320 TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 2.8-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 240 × 320 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MCU interface, match the exact bus mode, pin assignments, logic levels and display controller commands. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 300 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Individuelle Display-Lösungen

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    300

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
