28.6 inch Long Strip Monitor Resolution 1920*540 400 cd/m2

Artikelnummer: DS30006
Größe:

Auflösung:

Schnittstelle:

, , ,

Helligkeit (cd/m²):

400

Betriebstemperatur:

-0℃~50℃

28.6 inch Long Strip Monitor, offering resolution 1920*540, Brightness 400cd/m2, Interface with USB/TF/Audio/HDMI IN*2/DC IN/TF

Preisanfrage für Volumen







    Beschreibung

    28.6 inch Long Strip monitor main features:

    • 178° ultra-wide viewing angle, 1200:1 high contrast ratio
    • High-definition picture quality, smooth playback
    • Long-strip display, can be hung horizontally or vertically
    • Sheet metal frame, protects screen from bumps
    • Brightness 300~500cd/m2 adjustable, appearance color customizable, driver motherboard solution customizable

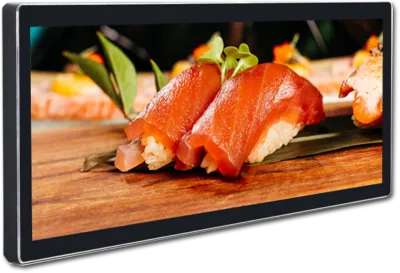

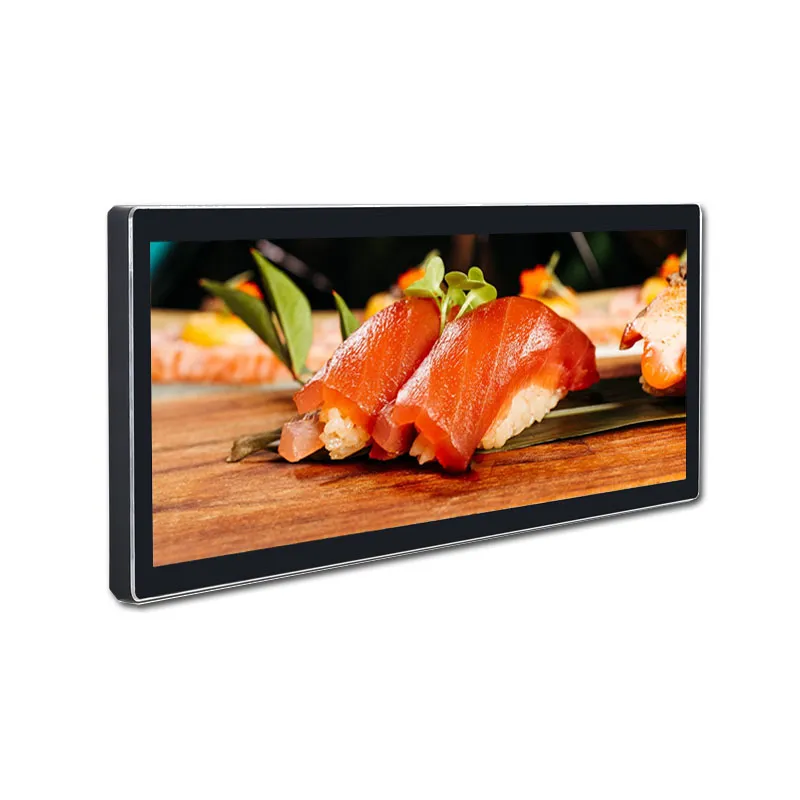

    28.6 inch Long Strip Monitor



    28.6 inch Long Stripe monitor Specification

    LCD Display Screen Size 28.6inch
    Aktiver Bereich 698.4*196.43(mm)
    Outline 743.99*242*49.5(mm)
    Screen Type a-Si TFT-LCD
    Pixel Zahl 1920*540
    Aspect Ratio 32:9
    Luminance 400 cd/m2
    Kontrastverhältnis 1200:1
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
    Color Depth 1.07B   68% NTSC
    Response 8 (Typ.)(G to G) ms
    Pixel Pitch 0.279*0.279(mm)
    Mainboard CPU V53
    Ram -
    Flash -
    O/S -
    Schnittstelle USB/TF/Audio/HDMI IN*2/DC IN/TF
    Machine Appearance and Structure Profile plus tempered glass
    Color Black Customizable
    Peripheral WIFI, optional capacitive touch
    Power supply AC110V-220V
    Power consumption ≦50W
    Betriebstemperatur 0℃~50℃
    Lagertemperatur -20℃~60℃
    Installation method Wall hanging
    Net weight 11Kg
    Corton size 1230*650*210(mm)
    Number of boxes 2PCS/Corton
    Corton weight 25Kg

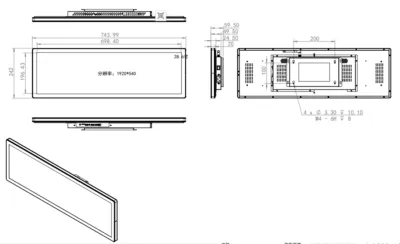

    Drawing and photo 28.6 inch Long Stripe monitor drawings

    28.6-Inch 1920 × 540 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 28.6-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 1920 × 540 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Use the listed 400 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    , , ,

    Helligkeit (cd/m²):

    400

    Betriebstemperatur:

    -0℃~50℃

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
