3.4 Inch Square IPS LCD Display | 480×480 MIPI Interface

Artikelnummer: DS20317
Größe:

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

450

Touchscreen-Unterstützung:

Anzeige Typ:

3.4 inch Square lcd screen, resolution 480x480, mipi interface, -20~70 ℃, brightness 450nits, 80/80/80/80 IPS wide viewing angle, AA 60.48*60.48mm

Preisanfrage für Volumen







    Beschreibung

    3.4 inch square LCD display Description

    This 3.4 inch square LCD display features a 480×480 resolution and an IPS panel that delivers consistent color performance and a wide 80/80/80/80 viewing angle.
    With a MIPI interface, the display supports fast data transmission and is suitable for compact and performance-oriented embedded systems.

    This 3.4-inch square LCD is commonly used in smart control panels, handheld devices, medical equipment, IoT terminals, instrumentation, and consumer electronics, where stable performance and compact size are required.

    3.4 inch square LCD display Specifications

    Modellnummer HYS-034BM5S2P002
    Größe 3.4
    Auflösung 480*480

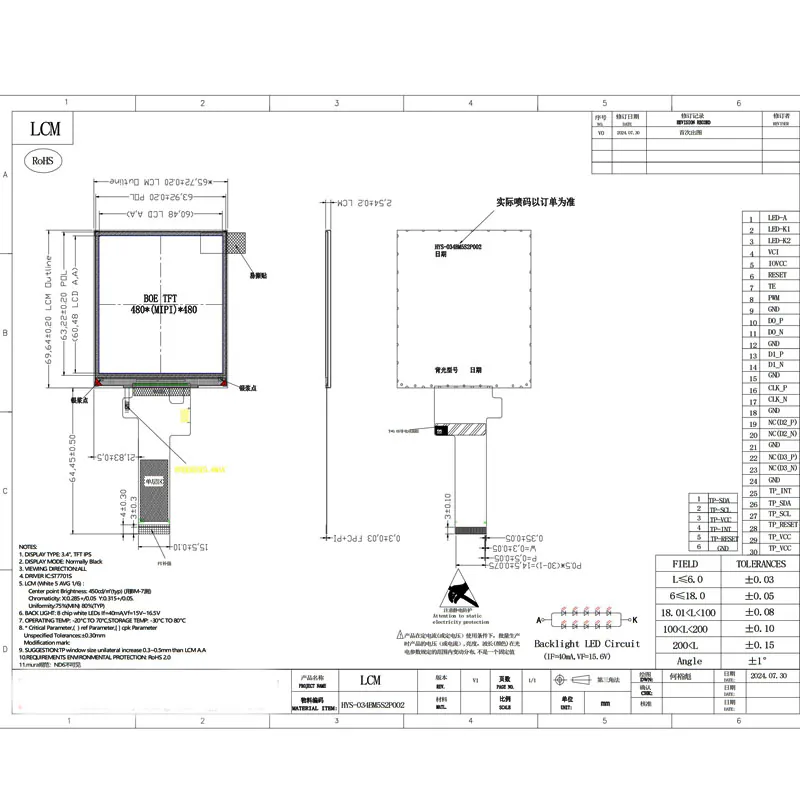

    Umriss Dimension 65.72*69.64*2.54
    Aktiver Bereich 60.48*60.48
    Helligkeit(cd/m²) 450
    Schnittstelle MIPI
    Ansicht Richtung IPS
    Betriebstemperatur -20~70
    Lagertemperatur -30~80
    LED-Lebensdauer 20000
    Touchscreen-Unterstützung NO
    Kontrastverhältnis 1000:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    3.4" TFT Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    3.4-Inch 480 × 480 MIPI LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.4-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 480 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 450 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
