3,5 Zoll TFT 320*480 MCU IPS LCD Bildschirm

Artikelnummer: DSZ0019
Größe:

Auflösung:

Schnittstelle:
Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

350

Touchscreen-Unterstützung:

Anzeige Typ:

3.5 inch tft display  320*480pixels  MCU/RGB Interface  50 pin FFC ZIF Connection  Customized touch screen

Preisanfrage für Volumen







    Beschreibung

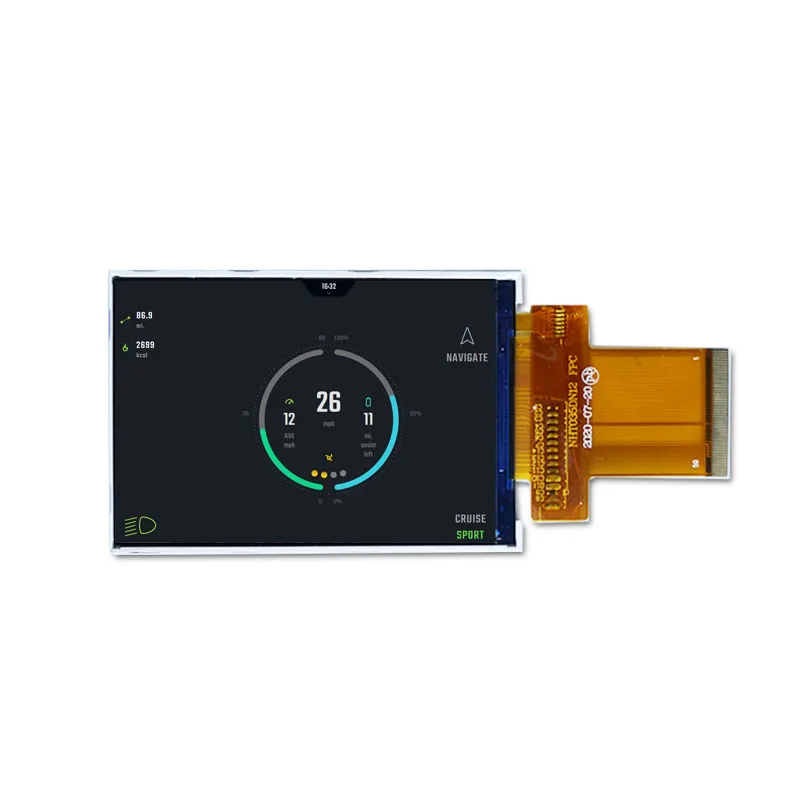

    3.5" Industrial LCD Display Pane

    The 3.5 inch IPS LCD Screen offers clear and vibrant visuals with a resolution of 320x480 pixels, making it ideal for applications that require a compact and reliable display solution. It features a viewing angle of 80° in all directions, ensuring consistent image quality and color accuracy from multiple perspectives, suitable for various environments. With a brightness level of 350 cd/m², the display ensures good visibility in both indoor and outdoor settings. Additionally, its MCU interface allows for seamless integration with modern microcontrollers, facilitating efficient data transfer and communication.



    3.5” LCD Display Application

    The 3.5-inch TFT-LCD display module is well-suited for various applications, including consumer electronics such as handheld devices, GPS systems, and digital cameras, where clear visuals and user interaction are essential. It is also ideal for embedded systems, including industrial control panels and home automation systems, that require reliable performance and real-time data visualization. Additionally, this module is suitable for medical devices, providing essential information in a clear and accessible format for patient monitors and diagnostic equipment.

    3.5" TFT-LCD Product Specifications

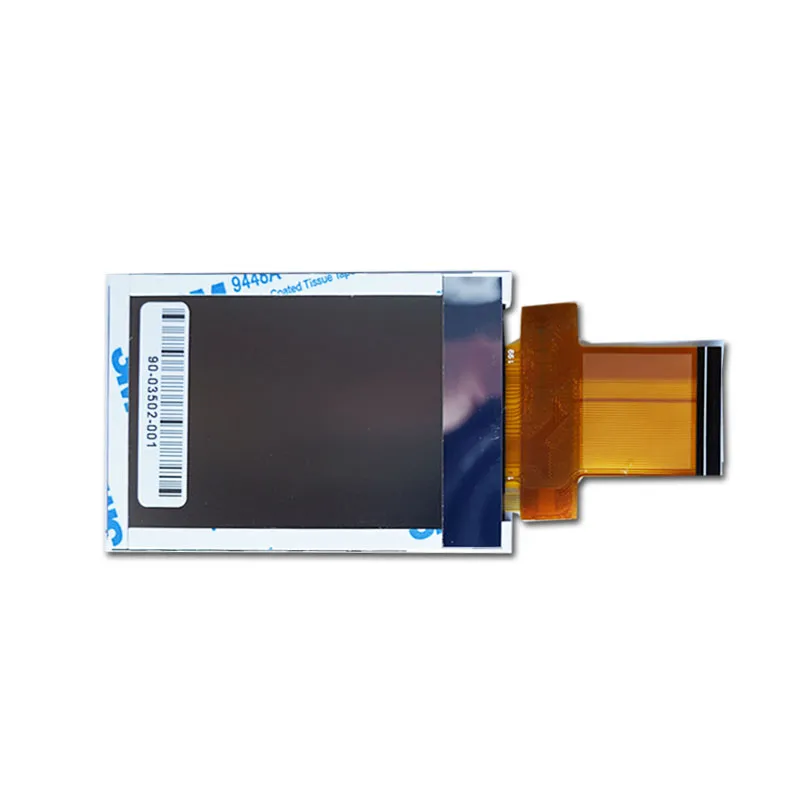

    Modellnummer  90-03502-001
    Größe  3.5
    Auflösung 320*480

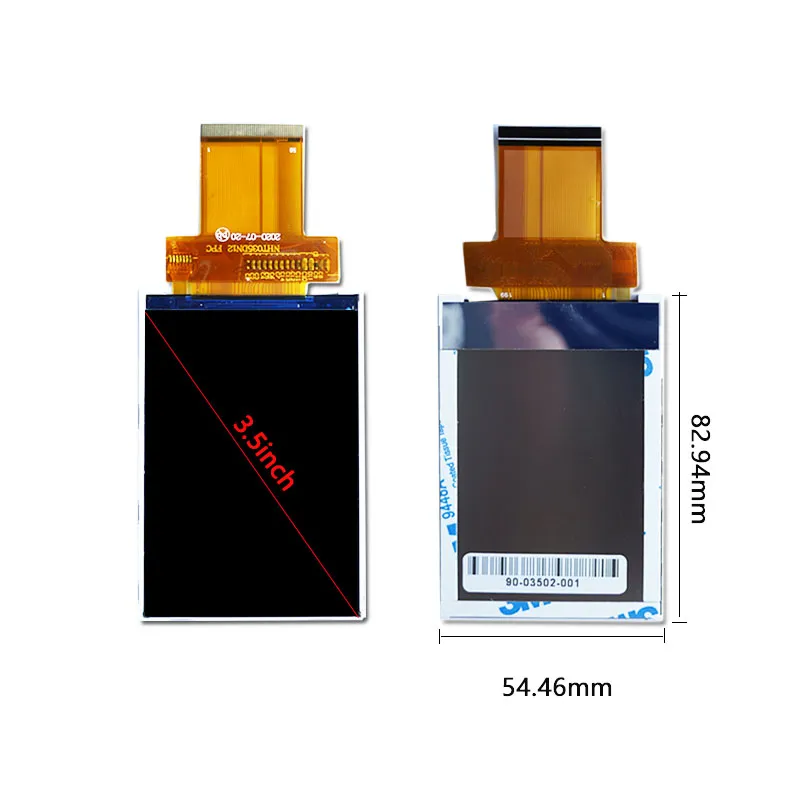

    Umriss Dimension 54.46*82.94*2.25
    Aktiver Bereich 48.96*73.44
    Helligkeit(cd/m²) 350
    Schnittstelle MCU/RGB
    Ansicht Richtung ALLE
    Betriebstemperatur -20~70
    Lagertemperatur -30~80
    LED-Lebensdauer 20000
    Touchscreen-Unterstützung Witout
    Kontrastverhältnis 700:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    3.5" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    3.5-Inch 320 × 480 RGB TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 320 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Individuelle Display-Lösungen

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:
    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    350

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
