3.95 Inch Square TFT LCD Display | 480×480 RGB Interface

Artikelnummer: DS20318
Größe:

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

250

Touchscreen-Unterstützung:

Anzeige Typ:

3.95 inch square tft display, resolution 480*480, AA 71.86*70.18, brightness 250nits, -20~60 operation temperature, RGB interface, 85/85/85/85 wide temperature, 1200:1 high contrast ratio

Preisanfrage für Volumen







    Beschreibung

    3.95 inch square TFT LCD display Description

    This 3.95 inch square TFT LCD display features a 480×480 resolution and a balanced square format that supports flexible and intuitive user interface layouts. With an active area of 71.86 × 70.18 mm, the display is well suited for compact embedded designs and space-constrained applications.

    This 3.95-inch square TFT LCD is commonly used in smart home devices, handheld terminals, instrumentation, consumer electronics, and IoT interfaces, where compact size and reliable visual performance are required.

    Square TFT LCD Specifications

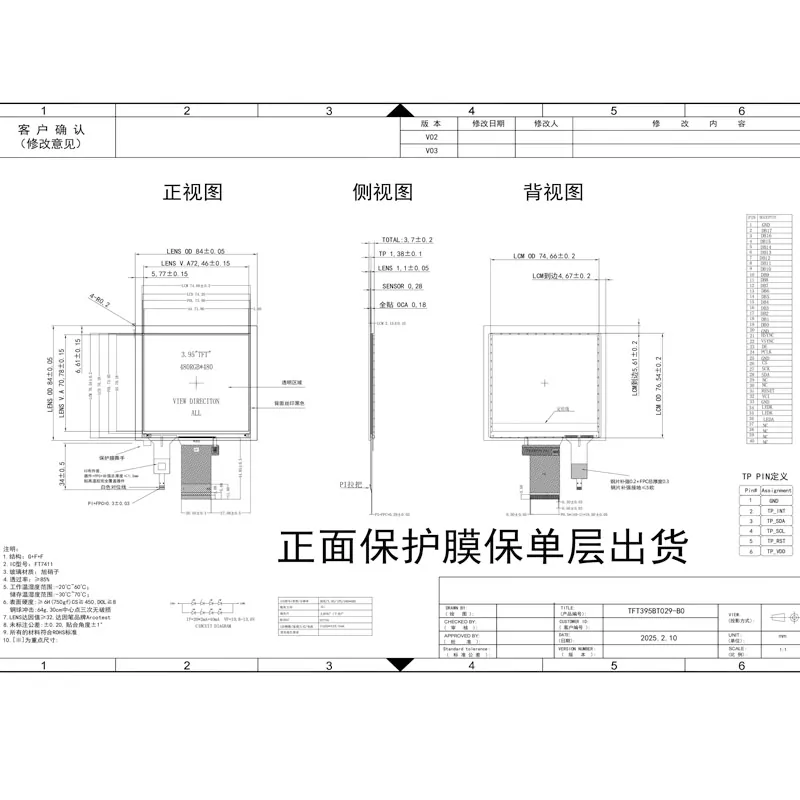

    Modellnummer TFT395BT029-B0
    Größe 3.95
    Auflösung 480*480
    Umriss Dimension 84*84*3.7
    Aktiver Bereich 71.86*70.18
    Helligkeit(cd/m²) 250
    Schnittstelle RGB
    Ansicht Richtung IPS
    Betriebstemperatur -20~70
    Lagertemperatur -30~80
    LED-Lebensdauer 20000
    Touchscreen-Unterstützung NO
    Kontrastverhältnis 1200:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    3.95" TFT Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    3.95-Inch 480 × 480 RGB TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.95-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 480 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 250 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Individuelle Display-Lösungen

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    250

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
