4.3 inch Industrial LCD Displays 480*272 RGB

Artikelnummer: DS20038
Größe:

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

350

Touchscreen-Unterstützung:

Anzeige Typ:

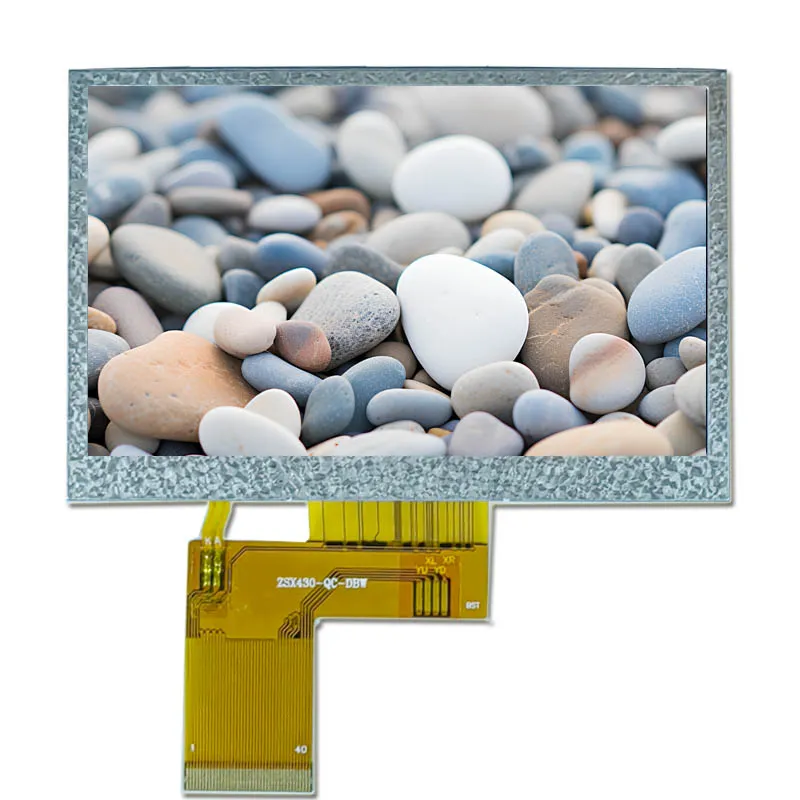

4.3 inch Industrial lcd displays,  480*272 Pixels,  Serial RGB Interface,  40pin FFC Connection, Low power consumption, shockproof and dustproof

Preisanfrage für Volumen







    Beschreibung

    4.3" Industrial LCD Displays Overview

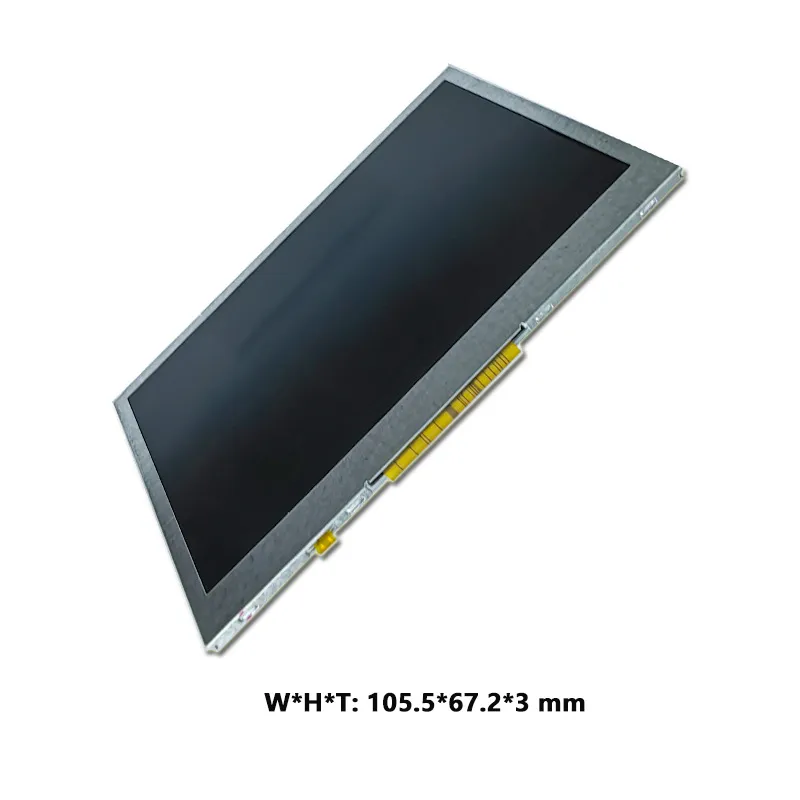

    The 4.3 industrial lcd displays is designed for reliability and performance across various applications, featuring a resolution of 480 x 272 pixels for clear visuals and an active area of 95.04 mm x 53.86 mm to enhance user interaction. With outline dimensions of 105.5 mm x 67.2 mm x 3 mm, it offers a modern design suitable for diverse devices. The display supports a 60° horizontal and 50° vertical viewing angle, ensuring good visibility from multiple positions, and has a brightness of 350 cd/m² and a contrast ratio of 500:1 for effective content presentation. Its LED lifetime is rated at 20,000 hours, and it operates within a temperature range of -20°C to 70°C, with a storage temperature of -30°C to 80°C, making it versatile for various environments.



    Application of 4.3" TFT LCD

    The 4.3-inch LCD display module is widely utilized in various applications, including consumer electronics such as handheld devices and portable gaming consoles, where it offers clear graphics and an engaging interface. It is also ideal for industrial equipment, functioning effectively in control panels and monitoring systems to help operators visualize data in moderate temperature environments. Additionally, this display is suitable for automotive applications, including dashboards, infotainment systems, and navigation units, where clear visibility and a compact design enhance user interaction.

    4.3" TFT-LCD Product Specifications

    Modellnummer  90-04309-001
    Größe 4.3
    Auflösung 480*272
    Umriss Dimension 105.5*67.2*3
    Aktiver Bereich 95.04*53.86
    Helligkeit(cd/m²) 350
    Schnittstelle RGB
    Ansicht Richtung 6 O"clock
    Betriebstemperatur -20~70
    Lagertemperatur -30~80
    LED-Lebensdauer 20000
    Touchscreen-Unterstützung Witout
    Kontrastverhältnis 500:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    4.3" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    4.3-Inch 480 × 272 RGB LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 4.3-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 480 × 272 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Individuelle Display-Lösungen

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    350

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
