4.6″ Bar LCD Display Overview
The 4.6 inch Bar LCD Display Screen features a resolution of 800 x 320 pixels, providing sharp and vibrant images for effective content presentation. Its active area measures 108 mm x 43.2 mm, maximizing usable screen space, while the outline dimensions of 119 mm x 56.54 mm x 5.6 mm ensure a sleek design for easy integration into various devices. With a viewing angle of 60° horizontal and 50° vertical (RLUD), it offers good visibility for flexible installation. The display has a brightness of 450 cd/m² and a contrast ratio of 500:1, delivering clear visuals in diverse lighting conditions. It boasts an LED lifetime of 20,000 hours, operates within a temperature range of -20°C to 70°C, and can be stored between -30°C to 80°C, making it versatile for various environments. The RGB interface facilitates seamless integration with a range of microcontrollers and devices.
4.6″ Bar Type TFT LCD Display
The 4.6-inch TFT LCD display features a bar type format, characterized by a wider horizontal orientation that is ideal for presenting information such as status indicators, progress bars, and menus. This elongated design enhances readability by allowing for clearer segmentation of data, making it easier for users to interpret information quickly—particularly beneficial in dashboards and control panels. The bar type format is versatile, suited for various applications including automotive displays (like speed and fuel gauges), industrial monitors (for system status), and consumer electronics (for notifications and alerts).
4.6″ TFT-LCD Product Specifications
| Model Number | 90-04601-001 |
|---|---|
| Größe | 4.6 |
| Auflösung | 800*320 |

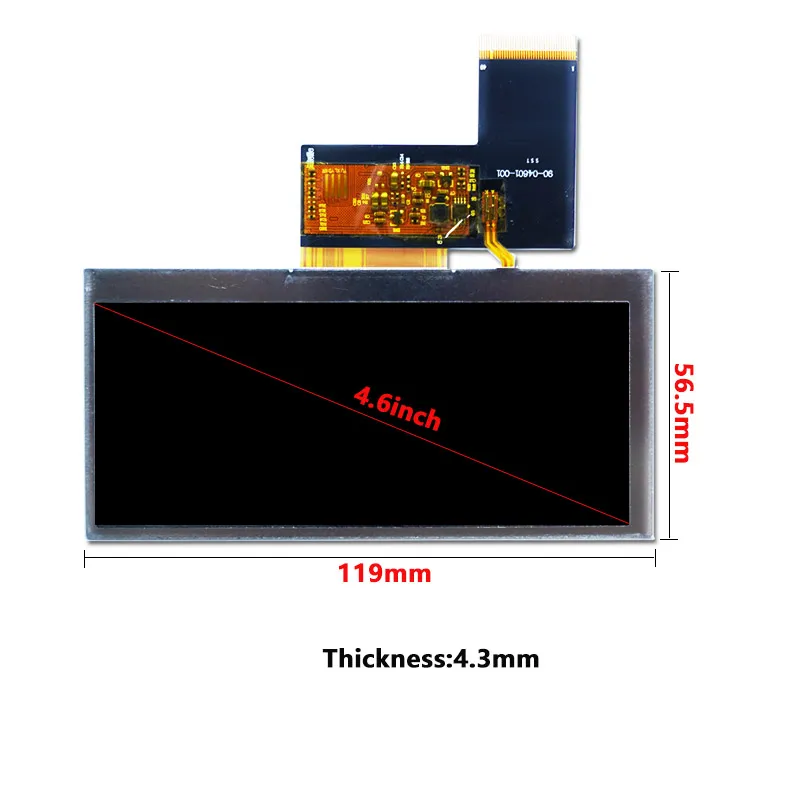

| Outline Dimension | 119.56*56.54*5.6 |
| Active Area | 108*43.2 |
| Brightness(cd/m²) | 450 |
| Schnittstelle | RGB |
| Ansicht Richtung | 6 O”clock |
| Betriebstemperatur | -20~70 |
| Storage Temperature | -30~80 |
| LED Lifetime | 20000 |
| Touchscreen-Unterstützung | Resistive |
| Contrast Ratio | 500:1 |
| Power Supply | 3.3V |
| Anzeige Typ | Color LCD |
4.6″ TFT LCD Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
