4 inch Circular TFT LCD Display 720*720 MIPI

Artikelnummer: DS20033
Größe:

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

250

Touchscreen-Unterstützung:

Anzeige Typ:

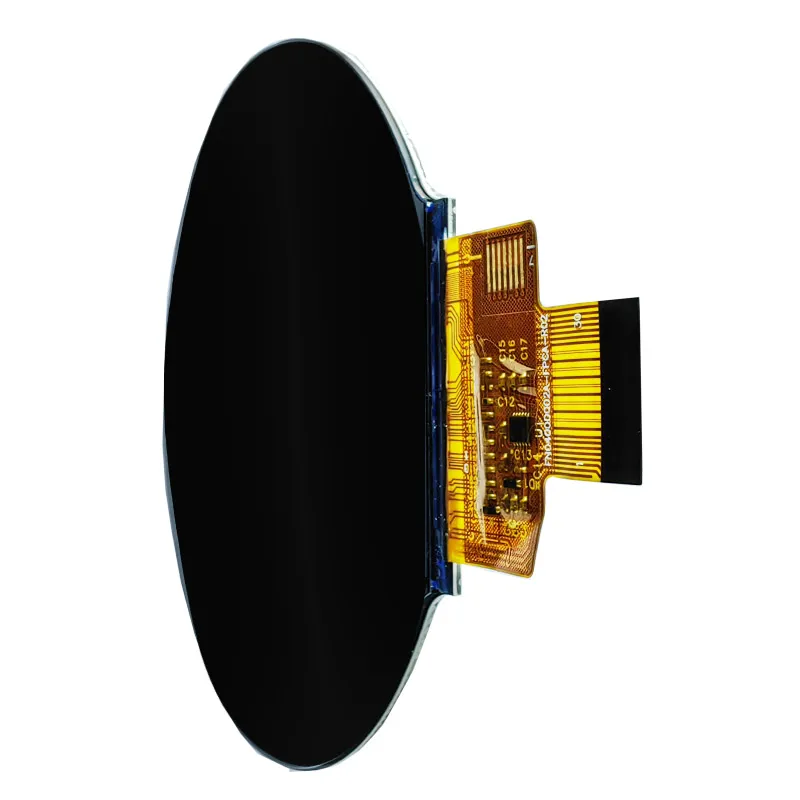

4 inch high resolution round TFT displays  720*720 Pixels  Serial mipi Interface  30pin FFC Connection  Customized touch screen

Preisanfrage für Volumen







    Beschreibung

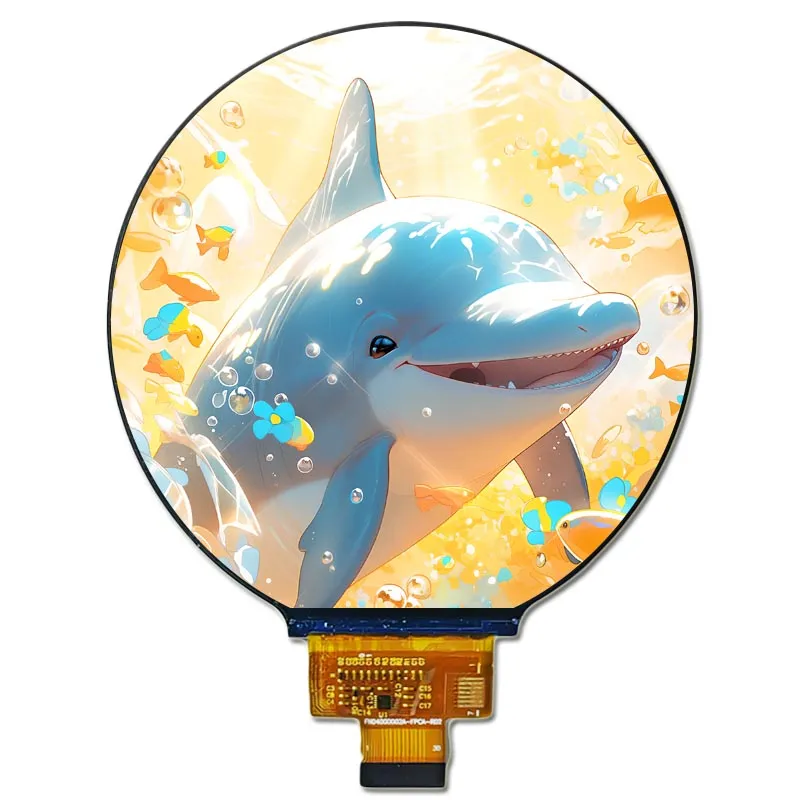

    4" Circular TFT LCD Display Overview

    This 4-inch Circular TFT LCD Display , with its 720 x 720 pixel resolution and 1200:1 contrast ratio, is perfect for applications in consumer electronics, industrial equipment, and more. Its reliable performance and vibrant visuals make it a dependable choice for diverse projects, enhancing user experiences across various platforms.



    4" TFT Circular TFT LCD Display with High Contrast Ratio

    The display's high contrast ratio of 1500:1 indicates a significant difference between the brightest whites and the darkest blacks, which is essential for rendering images with depth and detail. This ratio enhances visual clarity and sharpness, allowing for more vivid colors and distinct details, making it particularly crucial in high-precision applications. Additionally, it enables the reproduction of a wider range of colors with greater accuracy, resulting in lifelike images and improved aesthetics, making the display ideal for graphics-intensive use.

    4.0" TFT-LCD Product Specifications

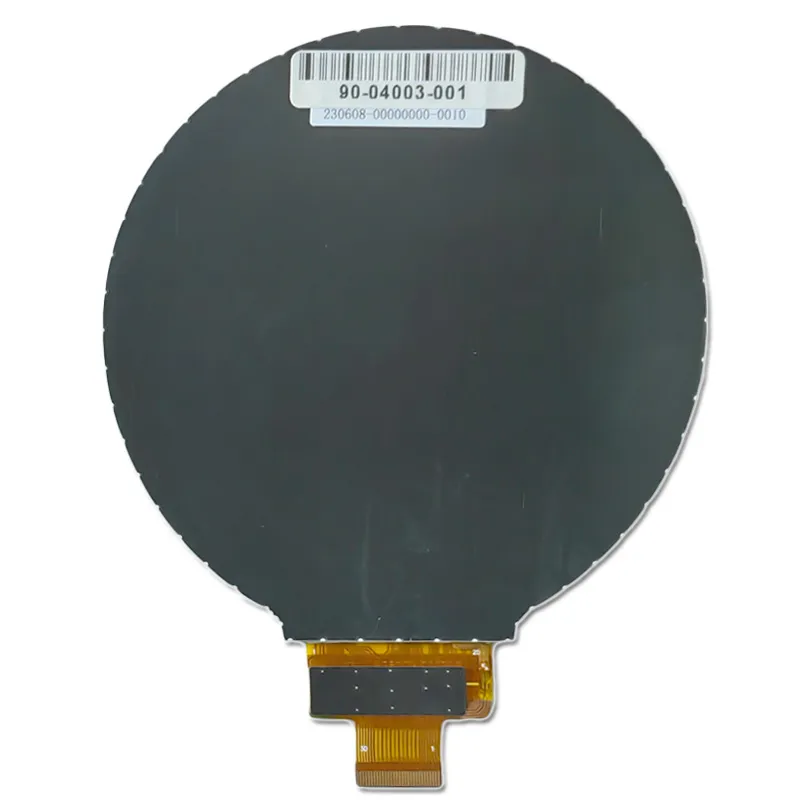

    Modellnummer  90-04003-001
    Größe 4.0
    Auflösung 720*720
    Umriss Dimension 105.6*109.87*2.08
    Aktiver Bereich 101.52*101.52
    Helligkeit(cd/m²) 250
    Schnittstelle MIPI
    Ansicht Richtung ALLE
    Betriebstemperatur -20~70
    Lagertemperatur -30~80
    LED-Lebensdauer 30000
    Touchscreen-Unterstützung Witout
    Kontrastverhältnis 1200:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    4.0" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    4-Inch 720 × 720 Round LCD Display FAQ

    Will the bezel cover any of my dial labels or icons?

    Use the 4-inch diagonal to shortlist round displays, then check the exact drawing for fit. Make a mask from the active circle and bezel drawing. Try your dial, long labels and controls with the mask applied on a 720 × 720 canvas before committing to the enclosure.

    How do I check that the driver and artwork align with the visible circle?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Check orientation and any address-window offsets in the initialization code, then show a marked test grid to verify the center and edge alignment.

    Should I choose a round display or place a rectangular display behind a round bezel?

    Compare the visible arc, text clipping, module clearance and flex routing for both approaches. Use the listed 250 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. A mock-up with your longest labels will show how much of the nominal screen you can actually use.

    Can I add custom cover glass, change the flex cable, or add touch?

    Send the visible circle, cover outline and thickness, desired flex exit and touch interface. We can evaluate a cover-only design and a separate touch assembly around the panel.

    Custom Touch Screen Solutions

    What affects the cost and lead time of a custom round display sample?

    Include your cover drawing, host board, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    250

    Touchscreen-Unterstützung:

    Anzeige Typ:
