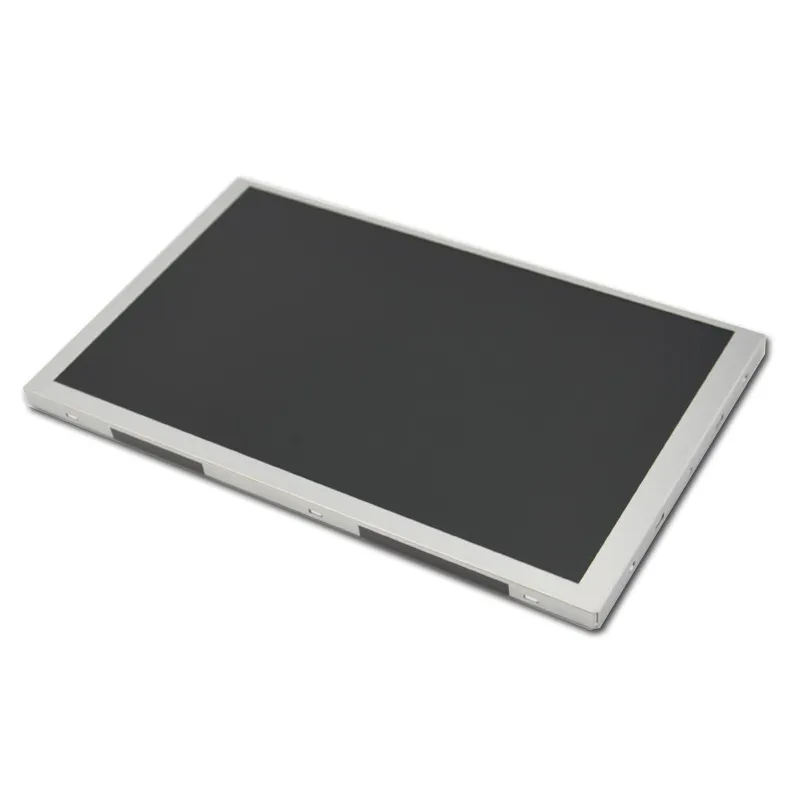

7” High Bright Displays AUO G070VTN02.0- 800x480, 1500nits, RGB, -30~70°C

Artikelnummer: DS50121
Größe:

Modellnummer

G070VTN02.0-

Auflösung:

Schnittstelle:

Betriebstemperatur:

-30℃~70℃

Helligkeit (cd/m²):

1500

Touchscreen-Unterstützung:

Anzeige Typ:

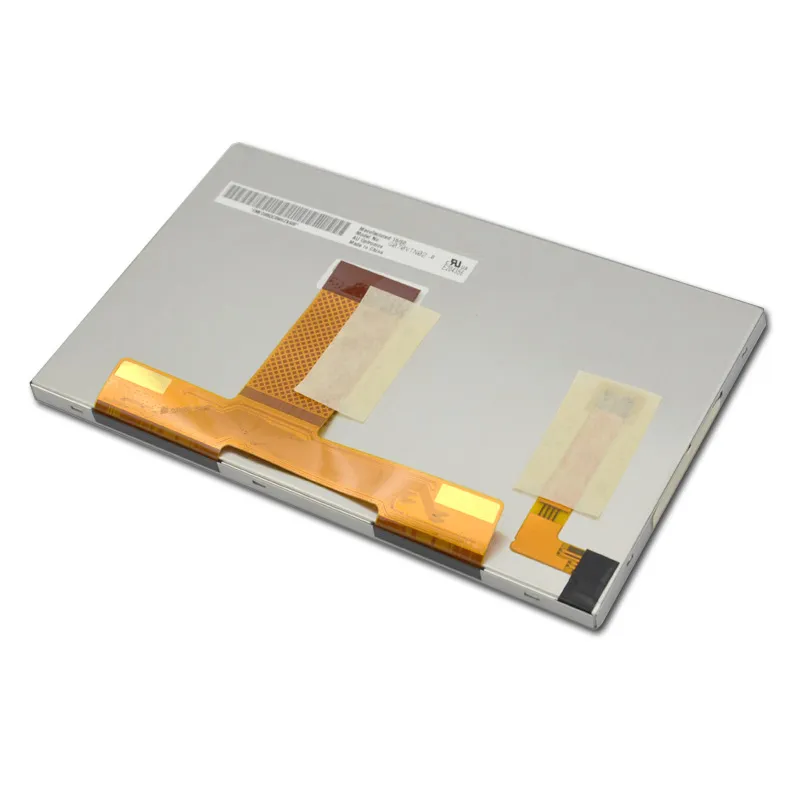

AUO G070VTN02.0 7-inch TN LCD: Ultra-high 1500nits brightness, 800x480 resolution, RGB interface, rugged -30~70°C operation, 10K-hour durability.

Preisanfrage für Volumen







    Beschreibung

    G070VTN02.0 General Desription

    The AUO G070VTN02.0 is a robust 7-inch TN LCD panel engineered for extreme outdoor and industrial environments. With an ultra-high brightness of 1500nits, it guarantees exceptional visibility in direct sunlight or high-glare conditions. Its 800×480 resolution and TN technology deliver crisp visuals for critical applications, while the wide operating temperature range (-30°C to 70°C) ensures reliability in harsh climates.
    Key Features:
    1500nits Ultra-Bright Display: Ideal for outdoor signage, transportation, and solar-powered systems.
    Rugged Design: Operates reliably in extreme cold (-30°C) and heat (70°C).
    RGB Interface: Simplified integration with industrial controllers and embedded systems.
    10,000-Hour Lifespan: Optimized for cost-effective, long-term deployments.
    Anti-Glare Coating: Reduces reflections in bright environments.



    G070VTN02.0 Application

    Outdoor digital signage, marine navigation, and aviation displays.
    Heavy machinery interfaces, mining equipment, and desert/arctic operations.
    Traffic control systems, EV charging stations, and construction site monitors.
    Built to withstand demanding conditions, this display balances ultra-high brightness with rugged performance. Custom mounting, touchscreen overlays, and bulk pricing available.

    G070VTN02.0 Product Specifications

    Diagonale Größe 7.0"(Diagonal)
    Pixel Zahl 800×480 Pixels
    Luminance 1500
    Module Size 169(W)×103.51(H) ×6.52(D)
    Aktiver Bereich 152.4(W)×91.44(H)
    Viewing Direction TN
    View Angle(U/D/R/L) 65/65/50/60
    Schnittstelle RGB
    Kontrastverhältnis 600
    Betriebstemperatur -30~70℃
    Lagertemperatur -40~95℃
    LED-Lebensdauer 10K
    Touchscreen-Unterstützung Ohne
    Stromversorgung 3.3v
    Anzeige Typ Color TFT

    AUO LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G070VTN02.0 7-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G070VTN02.0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the AUO G070VTN02.0?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G070VTN02.0 compare with the Innolux AT070TN92?

    Both catalog listings show 7 inches, 800 × 480 and RGB. The catalog lists −30 °C to +70 °C for the AUO panel and −20 °C to +70 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux AT070TN92

    Is the AUO G070VTN02.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G070VTN02.0-

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -30℃~70℃

    Helligkeit (cd/m²):

    1500

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
