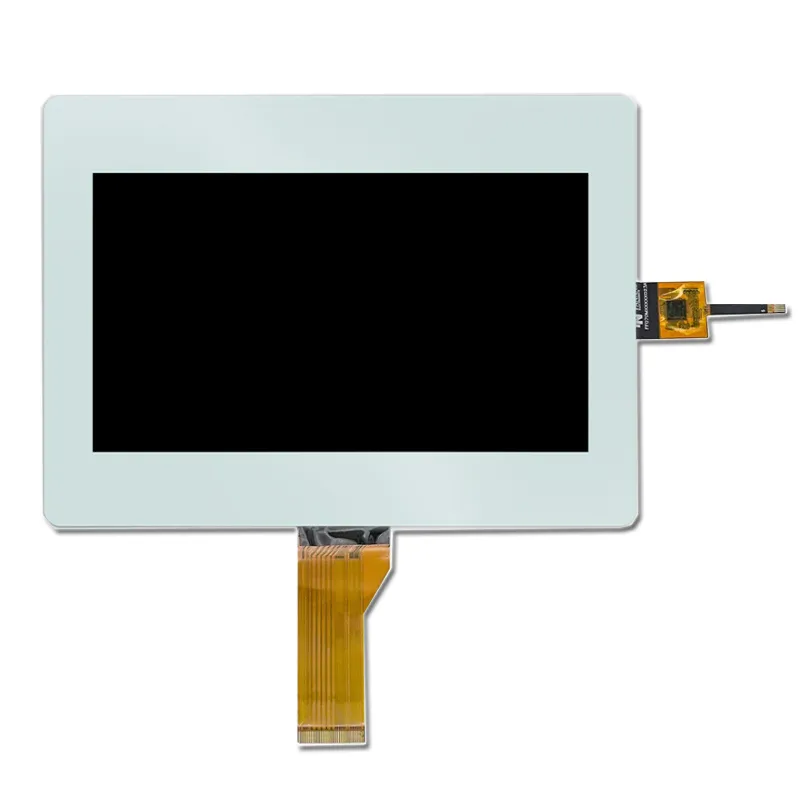

7 inch Capacitive Touch Screen G+G IIC Interface 10 Point Touch

Artikelnummer: DST004
Größe:

Schnittstelle:

Thickness

3 mm

Structure

G+G

Touch IC

microchip

7 inch Capacitive Touch Screen  Aspect Ratio 16:9  G+G Structure  IIC interface  3 mm Cover Thickness  10 Touch point  microchip Touch IC  Industrial Capacitive Touch Screen

Preisanfrage für Volumen







    Beschreibung

    7 inch Capacitive Touch Screen Key Features

    The 7 inch Capacitive Touch Screen is designed for versatility and robust performance in various applications, featuring a 16:9 aspect ratio and a durable G+G (Glass + Glass) structure that enhances touch sensitivity and resilience. With a cover thickness of 3 mm, this industrial-grade touch screen is built to withstand demanding environments while maintaining a sleek profile. It supports up to 10 touch points, allowing for seamless multi-touch interactions that enhance user experience. The screen utilizes an IIC interface for easy integration with a wide range of systems. Equipped with a microchip Touch IC, it provides precise touch recognition and responsiveness, making it ideal for applications in industrial automation, medical devices, and consumer electronics where reliable and intuitive user interaction is essential.



    Independent Research and Development Design

    We offer advanced touch sensor and touch IC solutions with professional production capabilities, including G+G and G+F+ structures. Our industry-leading full lamination process supports multi-touch, waterproof touch, and glove touch functionalities, ensuring high stability and excellent resistance to interference. Our on-site production includes full lamination of PCAP and TFT displays, and we can customize product performance to meet ACE-Q100/IATF16949 standards when required. Additionally, we provide customized cover plate processing options, including anti-glare (AG), anti-reflective (AR), anti-fingerprint (AF), and anti-bacterial (AB) treatments. Committed to quality, our company strictly adheres to the ISO 9001 international quality management system, striving to produce high-standard, high-quality, and high-tech capacitive touch screens.

    7.0" Capacitive Touch Screen Product Specifications

    Size(inch) 7.0(Diagonal)
    Structure G+G
    Active Area (W*H)mm 86.72*155.01
    Outline Dimension(mm) 132.8*181.8
    Thickness(mm) 3
    Touch Point 10
    Schnittstelle IIC
    Touch IC microchip
    Betriebstemperatur -20~70℃
    Lagertemperatur -30~80℃
    - -
    - -
    - -
    - -
    - -

    7.0" Touch Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    7-Inch I²C Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 7-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Get the native pixel layout first, then try your menus and text at that layout before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed I²C interface, check the controller address, logic levels and bus pull-ups on the intended host. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements. Judge readability on the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Individuelle Display-Lösungen

    Zusätzliche Informationen

    Größe:

    Schnittstelle:

    Thickness

    3 mm

    Structure

    G+G

    Touch IC

    microchip

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
