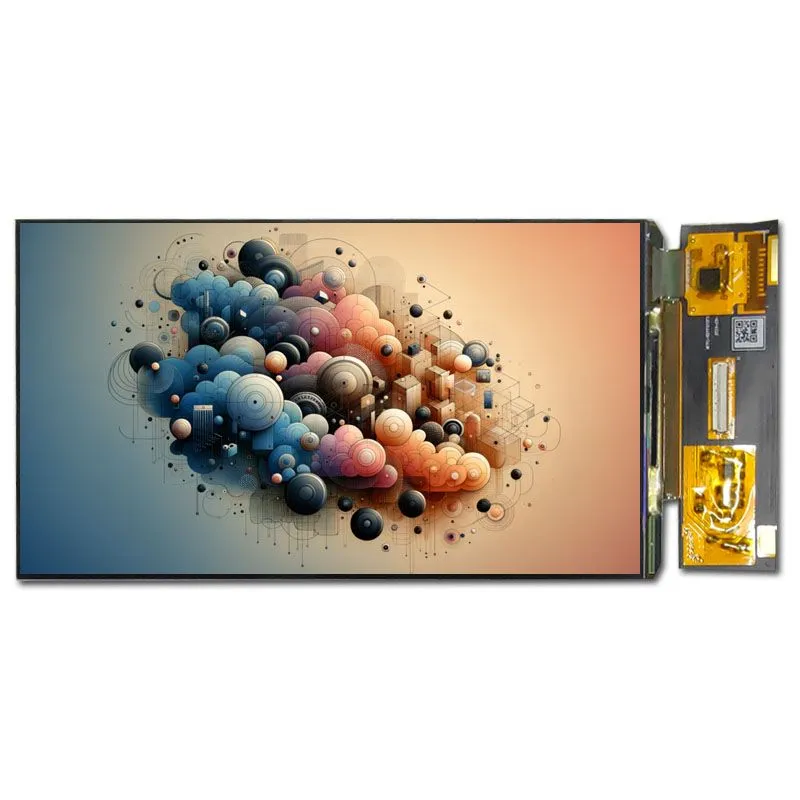

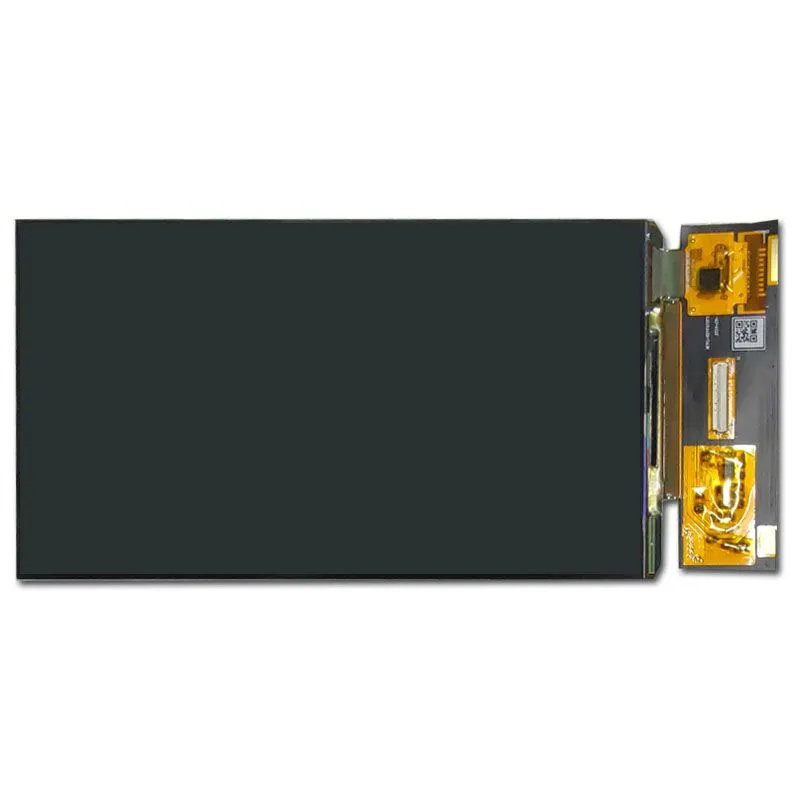

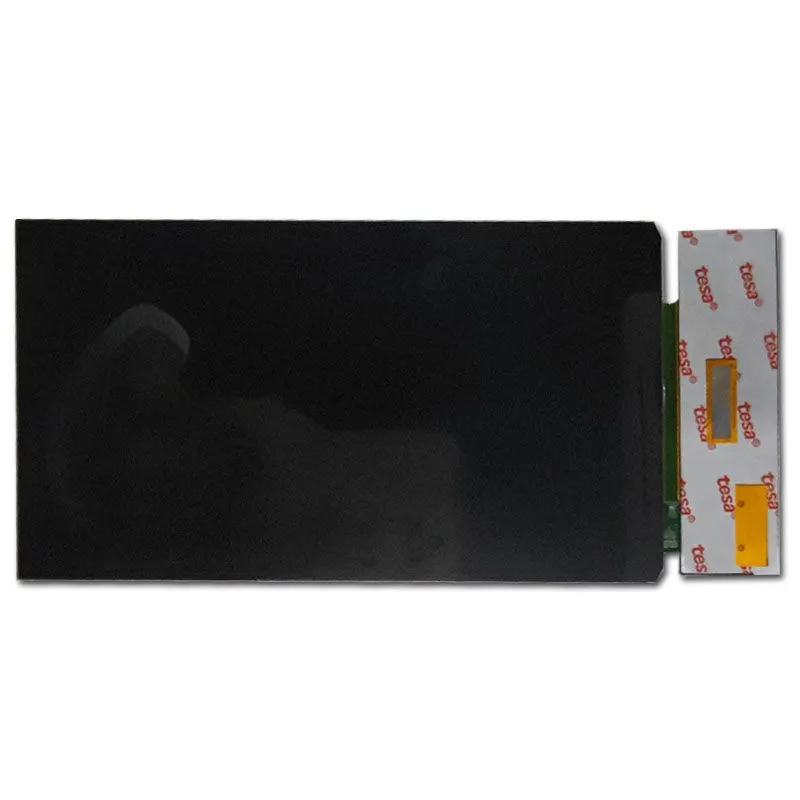

7 inch Oled Display Panel MIPI 1080x1920 Pixels

Artikelnummer: DS10020
Größe:

Auflösung:

Schnittstelle:

Betriebstemperatur:

-30℃~ 85℃

Helligkeit (cd/m²):

600

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

7 inch Oled Display Panel  Offering High Resolution 1080*1920  High Contrast Ratio 100000:1  MIPI Interface  Industrial OLED

Preisanfrage für Volumen







    Beschreibung

    7" Amoled Displays Features

    The 7 inch OLED display panel features a spacious viewing area with a diagonal measurement of 7.0 inches, making it suitable for a variety of applications. It offers a pixel resolution of 1080 x 1920, delivering sharp and clear images ideal for high-definition content. The display supports ALL O'clock viewing directions, ensuring visibility from multiple angles without color distortion. With a high contrast ratio of 100,000, it provides exceptional depth and detail, enhancing the overall visual experience. Additionally, the typical luminance of 600 cd/m² ensures good visibility even in bright lighting conditions.



    7" Amoled Display Application

    This 7 inch OLED display panel is versatile and well-suited for consumer electronics, such as tablets and e-readers, where high resolution and vibrant display quality enhance the user experience. It is also ideal for automotive applications, including dashboard and infotainment systems, where high-quality visuals are essential for navigation, entertainment, and information. Additionally, the display can be integrated into industrial devices, providing clear visuals and touch interaction for control panels and monitoring tasks. Furthermore, it is perfect for medical devices, particularly portable medical equipment, requiring high-quality visuals and reliability across various environmental conditions.

    7" Amoled Display Product Specifications

    LCD Size(inch) 7(Diagonal)
    Number of Pixels 1080(h)*1920(v)
    Pixel Pitch(um) 80.5
    Umriss Dimension 89.04(W) ×161.11(H) ×0.822(D)
    Aktiver Bereich 86.94(H) ×154.56(V)
    Display type AMOLED
    Schnittstelle MI PI
    View direction ALLE
    Stromversorgung 3.3v
    Kontrastverhältnis 100000
    Operation Temperature -30℃~85℃
    Luminance 600(TYP.)
    Driver IC RM692C9
    - -
    - -

    7" Amoled Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    7-Inch 1080 × 1920 MIPI Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 7-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 1080 × 1920 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements. Use the listed 600 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Individuelle Display-Lösungen

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -30℃~ 85℃

    Helligkeit (cd/m²):

    600

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
