7″ Raspberry Pi Touch Screen, 800×480, 5-Point Touch, HDMI, Plug & Play, CE/RoHS

Artikelnummer: DS20196

Größe:	7 inch
Auflösung:	800*480
Schnittstelle:	HDMI
Touchscreen-Unterstützung:	kapazitiv
Board Support	Raspberry Pi

7″ 800×480 touchscreen for Raspberry Pi 1/2/3 & PC. 5-point touch (Windows 7/8/10), single-touch for XP. HDMI input, plug & play, no drivers needed. Backlight control saves power. CE/RoHS certified.

$99.00

Beschreibung

7″ Raspberry Pi Touch Screen main features:

7 inch standard display, 800×480 resolution
Capacitive touch screen, can support 5-point touch
Supports individual backlight control, can turn off backlight to save power
Supports standard HDMI interface input, compatible and can be directly inserted into Raspberry Pi (3rd generation, 2nd generation, 1st generation)
Can be used as a general HDMI display, such as connecting to computer HDMI as a secondary display (resolution output can be adjusted to 800X480)
Used as a Raspberry Pi display, supports Raspbian, Ubuntu, Kodi, win10 IOT, single-point touch, driver-free
Used as a computer monitor, supports win7, win8, win10 system 5-point touch (XP and older system single-point touch), driver-free
This product is CE and RoHS certified

Key Parameters	Größe	7(inch)
	SKU	DS20196
	Physical resolution	800×480(dots)
	Software adjustable resolution	800×480~1920×1080(dots)
	Berühren Sie	5 point capacitive touch screen
	Aktiver Bereich	153.84*85.63(mm)
	Dimensions	164.9*124.27(mm)
	Packaging size	21115053 (mm)
	power consumption	0.74A*5V
	Weight (including packaging)	405(g)

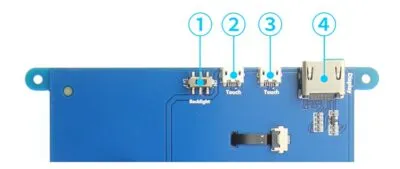

Hardware Description
	①Backlight button	Backlight power switch, control the backlight on and off to save power.
	②&③Touch	USB touch/power supply interface, used for power supply and touch output, both functions are the same, just connect any one
	④Display	HDMI interface, used to connect the mainboard and LCD display for HDMI transmission.
Package include	7-inch HDMI Display x1 HDMI cable x1 USB cable x1 Copper pillar package (4 PCS) x1 Data CD (or network disk) Warranty: 3 months
