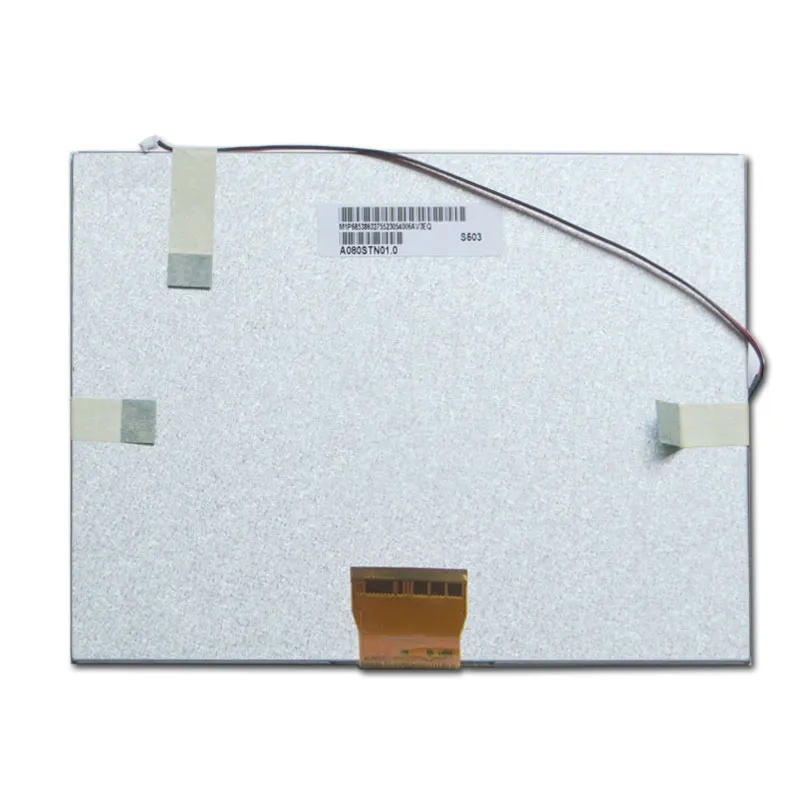

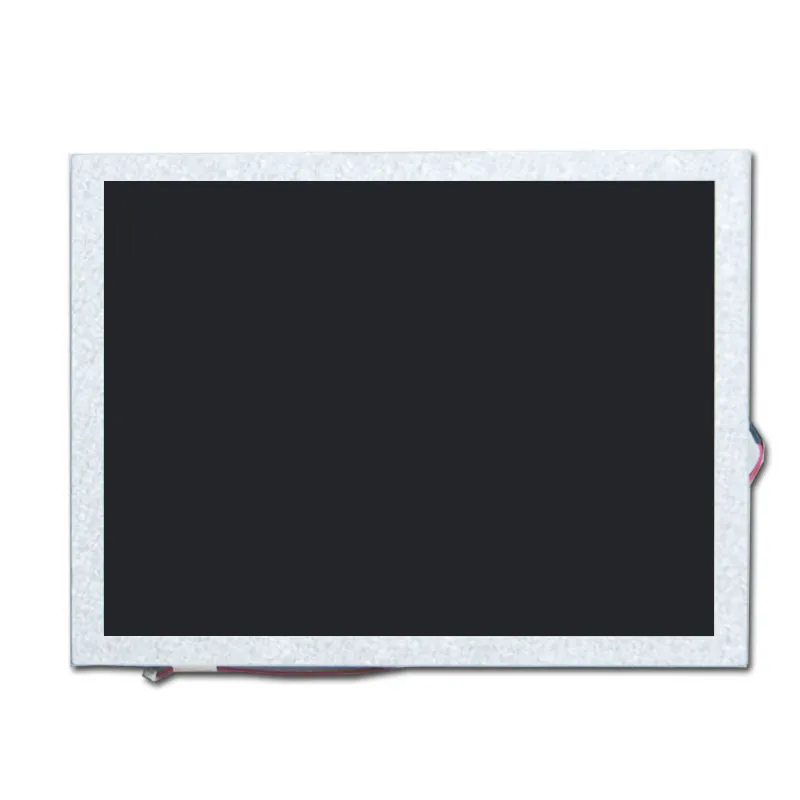

AUO A080STN01.0 8" TN LCD Module - 800x600, 250nits, TTL 60pin

Artikelnummer: DS50129
Größe:

Modellnummer

A080STN01.0

Auflösung:

Schnittstelle:

,

Betriebstemperatur:

-10℃~60℃

Helligkeit (cd/m²):

250

Touchscreen-Unterstützung:

Anzeige Typ:

8-inch TN LCD module with 800x600 resolution, 250nits brightness, TTL 60pin interface. Wide operating temperature (-10°C to 60°C), 500:1 contrast ratio, 10K-hour lifespan.

Preisanfrage für Volumen







    Beschreibung

    A080STN01.0 General Desription

    The AUO A080STN01.0 is an 8-inch TN LCD module designed for industrial and embedded applications requiring reliable performance. Featuring a resolution of 800x600 pixels and 250nits brightness, it delivers clear visibility in diverse lighting conditions. The 6 o’clock viewing angle configuration ensures optimal readability for vertical installations.
    With a robust TTL 60pin interface, this module supports seamless integration into legacy and modern systems. Its 500:1 contrast ratio enhances grayscale precision, while the wide operating temperature range (-10°C to 60°C) ensures stability in harsh environments. Rated for a 10,000-hour lifespan, it is ideal for medical devices, point-of-sale terminals, and industrial control panels.



    A080STN01.0 Technical

    Key specifications include a 5V power supply, 60Hz refresh rate, and anti-glare surface treatment. Compliance with RoHS standards and industrial-grade durability make it a cost-effective solution for high-demand applications. Contact for datasheets, pricing, and custom OEM/ODM support.

    A080STN01.0 Product Specifications

    Diagonale Größe 8.0"(Diagonal)
    Pixel Zahl 800×600 Pixels
    Luminance 250
    Module Size 183(H)×141(V) ×5.2(D)
    Aktiver Bereich 162(W)×121.5(H)
    Viewing Direction TN
    View Angle(U/D/R/L) 70/70/60/65
    Schnittstelle TTL+RGB
    Kontrastverhältnis 500
    Betriebstemperatur -10~60℃
    Lagertemperatur -30~70℃
    LED-Lebensdauer 10K
    Touchscreen-Unterstützung Ohne
    Stromversorgung 3.3v
    Anzeige Typ Color TFT

    AUO LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO A080STN01.0 8-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO A080STN01.0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 8-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing TTL cable and controller with the AUO A080STN01.0?

    For the listed TTL interface, match signal levels, timing and every connector pin before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO A080STN01.0?

    Use 800 × 600 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO A080STN01.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
