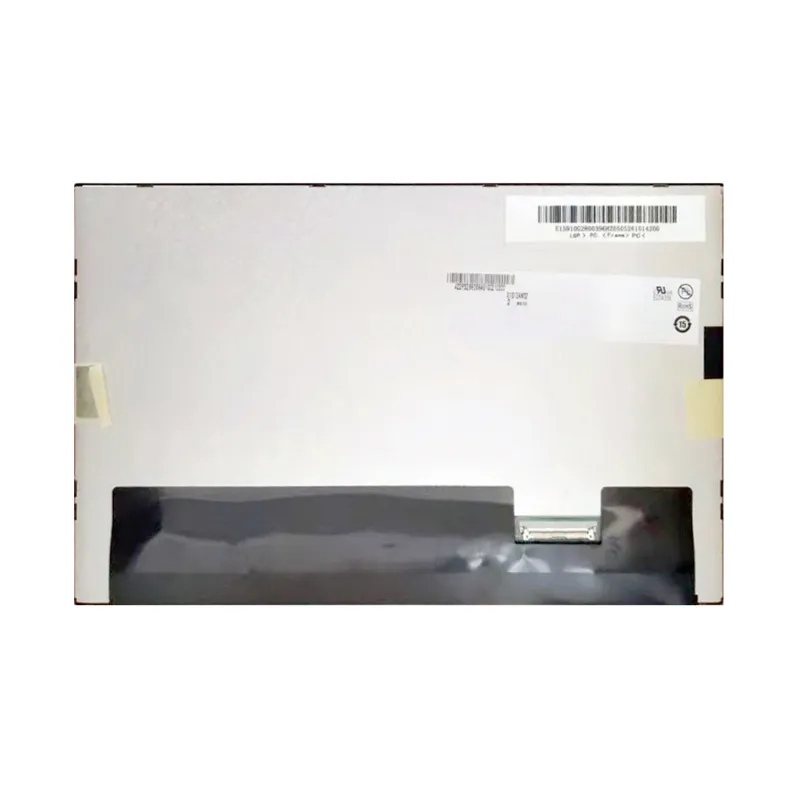

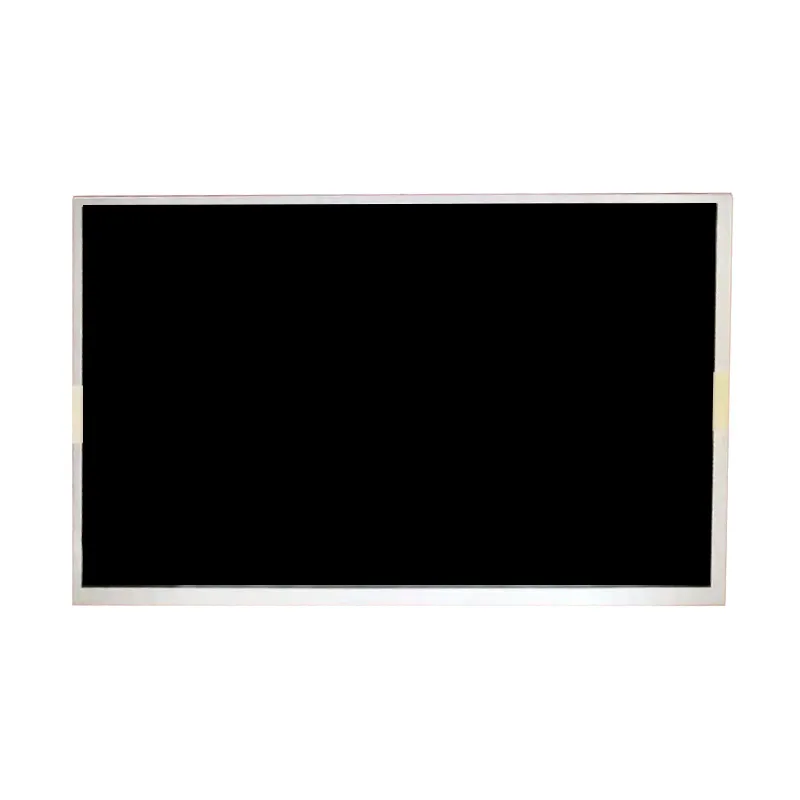

AUO G101EAN02.2 10.1-inch IPS LCD Display - 1280×800 Resolution, 500 Brightness, -20°C~70°C Operation

Artikelnummer: DS50094
Größe:

Modellnummer

G101EAN02.2

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

500

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

G101EAN02.2 10.1-inch High-brightness industrial display: 50k-hour lifespan, 89° viewing angles, 3.3V low power, Sunlight-Readable Screen.

Preisanfrage für Volumen







    Beschreibung

    Sunlight-Readable Screen Key Features:

    The AUO G101EAN02.2 is a premium 10.1-inch IPS LCD display engineered for high-definition visual performance in demanding environments. Featuring a sharp 1280×800 resolution and 500 cd/m² brightness, it delivers crisp, vibrant visuals even under direct sunlight. The IPS panel ensures 89° ultra-wide viewing angles (RLUD) with consistent color accuracy, ideal for multi-user applications. Built for durability, it operates reliably across a broad temperature range (-20°C to 70°C) and withstands thermal stress in industrial or outdoor settings. With an 800:1 contrast ratio and LVDS interface, it provides stable signal transmission and deep blacks for enhanced readability. The slim 7.75mm profile and compact outline (227.91×148mm) optimize space efficiency, while 3.3V low power consumption reduces energy costs. Designed for 50,000 hours of continuous operation, this display minimizes downtime in mission-critical systems.



    Applications & Performance:

    Perfect for industrial HMIs, medical imaging devices, and transportation dashboards, the AU Optronics 10.1-inch G101EAN02.2 excels where precision and reliability matter. Its high brightness and anti-glare performance make it ideal for outdoor digital signage, solar farm monitoring, and smart agriculture displays. In manufacturing, the IPS panel ensures accurate color reproduction for quality control systems and automated assembly line interfaces. The wide temperature tolerance supports freezer storage monitors, EV charging stations, and desert-deployed IoT gateways. For logistics, its slim design integrates seamlessly into warehouse management tablets and fleet tracking systems. The 128×800 resolution enhances detail visibility in aviation navigation tools and portable diagnostic equipment, while the rugged build resists vibration in construction machinery and maritime applications. LVDS compatibility ensures seamless integration with embedded PCs, and the 500nits brightness guarantees readability in bright retail kiosks or outdoor payment terminals.

    10.1" TFT-LCD Product Specifications

    Modellnummer G101EAN02.2
    Größe 10.1
    Auflösung 1280×800
    Umriss Dimension 227.91×148×7.75
    Aktiver Bereich 216.96×135.6
    Helligkeit(cd/m²) 500
    Schnittstelle LVDS
    Ansicht Richtung IPS
    Betriebstemperatur -20~70
    Lagertemperatur -30~80
    LED-Lebensdauer 50000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 800:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    10.1" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G101EAN02.2 10.1-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G101EAN02.2?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G101EAN02.2?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G101EAN02.2 compare with the Innolux EJ101IA-01G?

    Both catalog listings show 10.1 inches, 1280 × 800 and LVDS. The catalog lists −20 °C to +70 °C for the AUO panel and −10 °C to +60 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux EJ101IA-01G

    Is the AUO G101EAN02.2 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G101EAN02.2

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    500

    Touchscreen-Unterstützung:

    Anzeige Typ:
