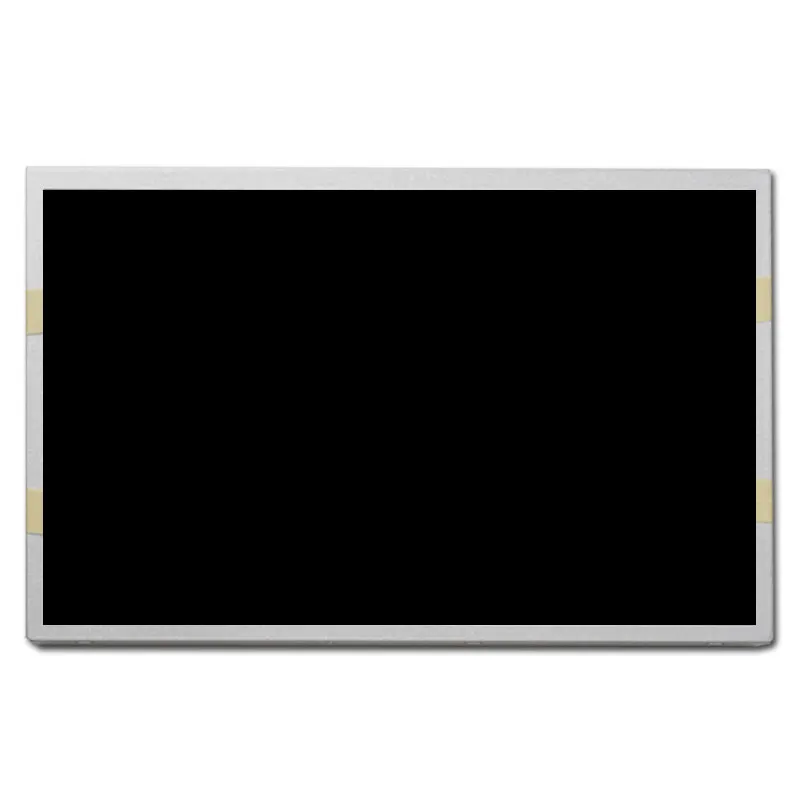

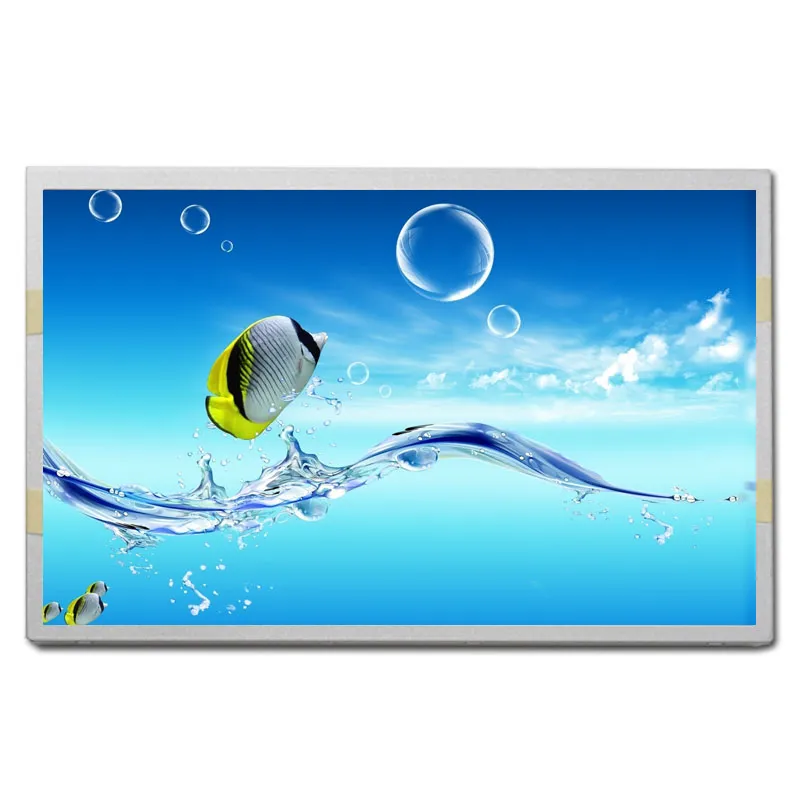

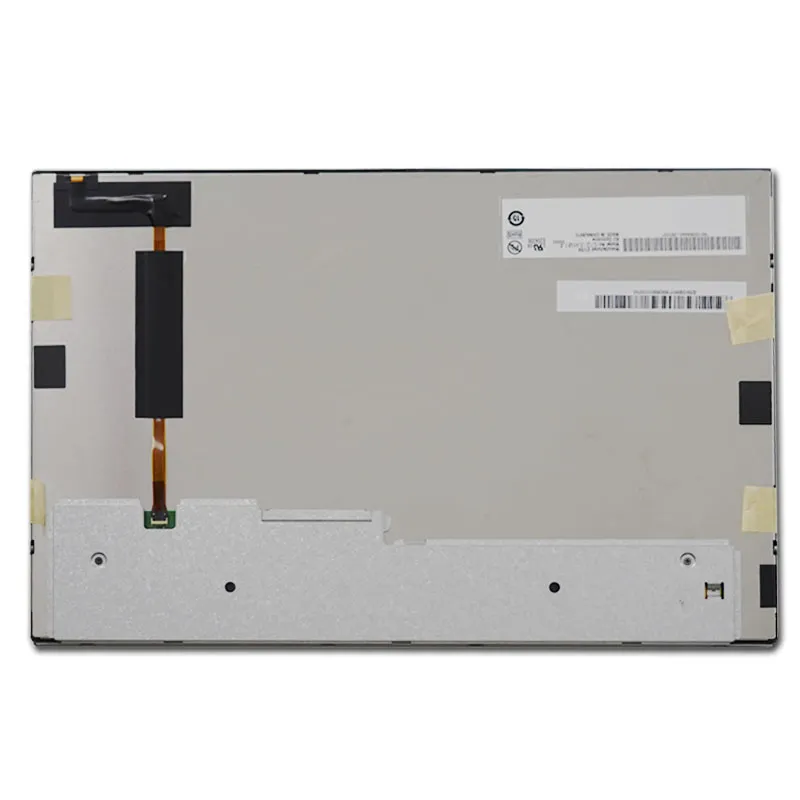

AUO G121EAN01.2 Liquid Crystal Display Module 12.1 inch 1280*800 1000 cd/m²

Artikelnummer: DS50021
Größe:

Modellnummer

G121EAN01.2

Auflösung:

Schnittstelle:

Helligkeit (cd/m²):

1000

Betriebstemperatur:

-30℃~ 85℃

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

G121EAN01.2 from Brand AUO, Resolution 1280*800, Brightness 1000cd/m² Operating Temperature from -30~85℃, LVDS 30 pin, Stable supply, Original A grade quality

Preisanfrage für Volumen







    Beschreibung

    G121EAN01.2 key Features

    The AUO G121EAN01.2 boasts impressive key features, including ultra-high luminance of 1000 cd/m² and a contrast ratio of 1000:1, ensuring vibrant visuals and deep blacks. It offers wide viewing angles of 89 degrees in all directions and a fast response time of 25ms, making it suitable for dynamic content. Designed for versatility, it operates efficiently within a wide temperature range of -30°C to 85°C. Additionally, its compact and lightweight design, combined with a durable LVDS interface featuring a 50,000 connection lifecycle, enhances its reliability and ease of integration into various applications.



    AUO G121EAN01.2 Application

    The AUO G121EAN01.2 12.1-inch WXGA IPS display is versatile and suitable for a wide range of applications across various industries. In industrial and embedded systems, it is ideal for automation equipment, control panels, human-machine interfaces (HMIs), and diagnostic monitoring devices. In the medical field, it serves as a display for patient monitoring equipment, diagnostic imaging systems, surgical equipment, and telemedicine applications. The display is also well-suited for automotive and transportation uses, including in-vehicle infotainment systems, instrument clusters, navigation displays, and commercial vehicle displays. Additionally, it can be utilized in marine and outdoor applications for marine navigation systems, outdoor kiosks, and rugged equipment displays, making it a reliable choice for diverse environments.

    12.1" TFT-LCD Product Specifications

    Modellnummer G121EAN01.2
    Größe 12.1
    Auflösung 1280*800
    Umriss Dimension 278*184*9.94
    Aktiver Bereich 261.12*163.2
    Helligkeit(cd/m²) 1000
    Schnittstelle LVDS
    Ansicht Richtung ALLE
    Betriebstemperatur -30~85
    Lagertemperatur -30~85
    LED-Lebensdauer 50000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 1000:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    12.1" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G121EAN01.2 12.1-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G121EAN01.2?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 12.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G121EAN01.2?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G121EAN01.2 compare with the Innolux G121ICE-L02?

    Both catalog listings show 12.1 inches, 1280 × 800 and LVDS. The catalog lists −30 °C to +85 °C for the AUO panel and −20 °C to +70 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux G121ICE-L02

    Is the AUO G121EAN01.2 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G121EAN01.2

    Auflösung:

    Schnittstelle:

    Helligkeit (cd/m²):

    1000

    Betriebstemperatur:

    -30℃~ 85℃

    Touchscreen-Unterstützung:

    Anzeige Typ:
