G215HVN01.3 Key Features：

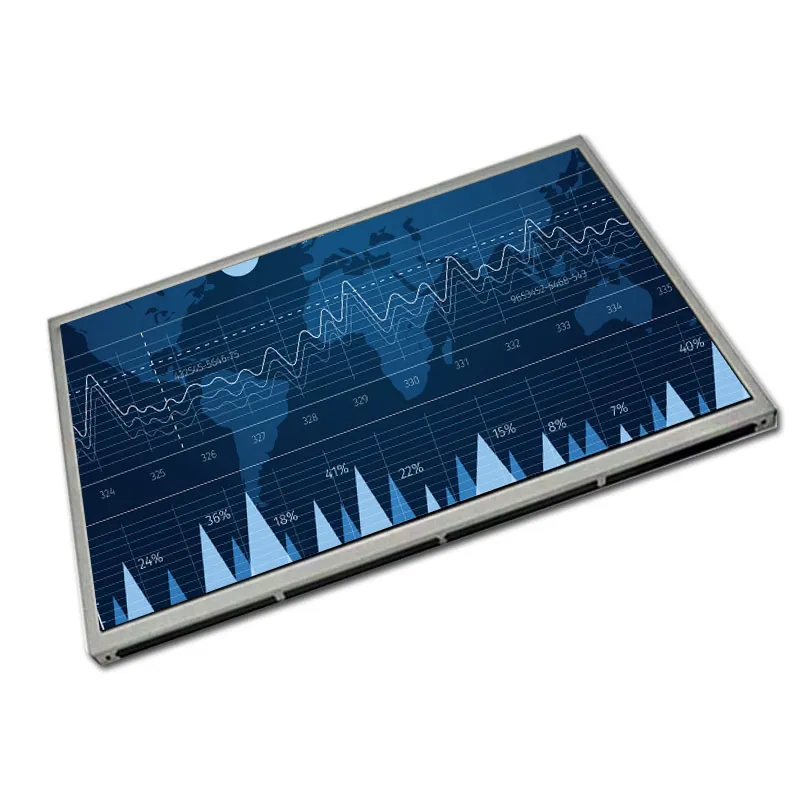

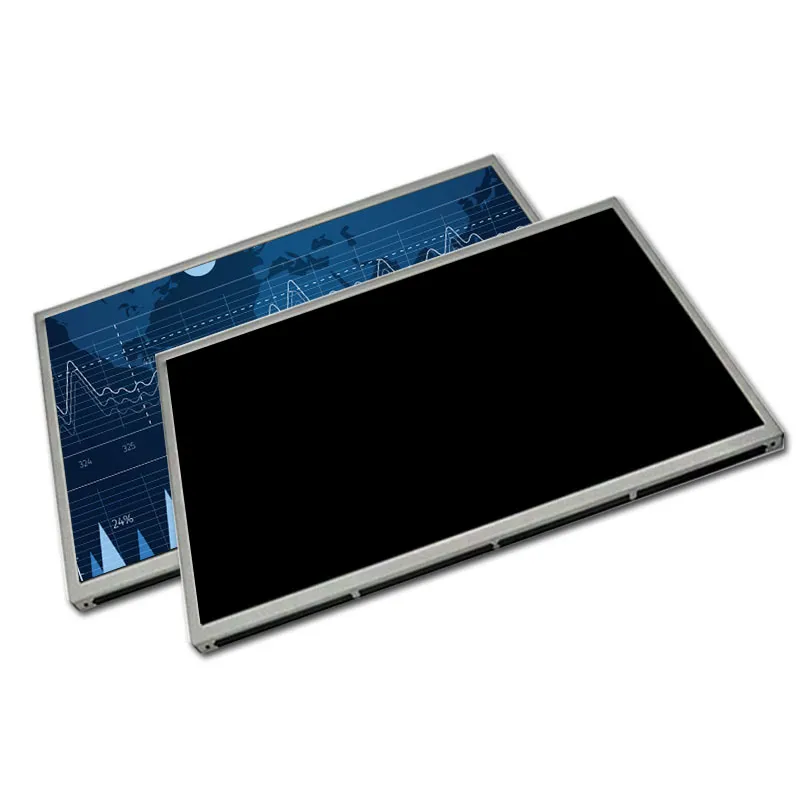

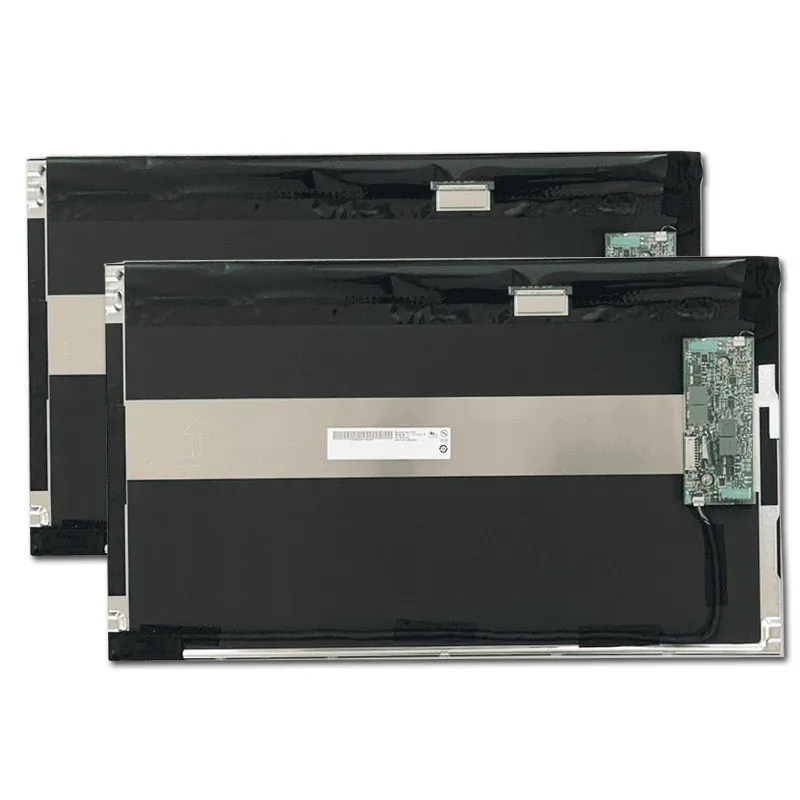

The AUO G215HVN01.3 is a 21.5-inch IPS LCD engineered for extreme environments, delivering 1000 cd/m² ultra-high brightness for sunlight-readable performance. With 1920×1080 Full HD resolution and 5000:1 contrast ratio, it ensures vivid visuals even in harsh lighting conditions. Built for industrial durability, it operates across -20°C to 80°C, ideal for outdoor/indoor transitions. The IPS panel offers 85°/85°/80°/80° viewing angles for collaborative workstations, while the LVDS interface guarantees EMI-resistant signal transmission in factories or transportation hubs. Featuring a 50,000-hour LED lifespan and 5V low-power design, it reduces maintenance costs for 24/7 applications. The 24.05mm rugged profile (495.6×292.2mm) withstands vibrations in heavy machinery integration.
Applications & Performance:
Perfect for outdoor digital billboards, mining control systems, and aviation dashboards, this display thrives in direct sunlight and extreme temperatures. The 1000cd/m² brightness excels in solar-powered signage, port logistics screens, and desert oilfield monitoring. Its -20~80°C range supports arctic cold chain tracking, foundry HMIs, and electric vehicle charging stations. The 5000:1 contrast enhances X-ray imaging in mobile clinics and tunnel inspection systems. IP65-compatible enclosures enable deployment in dusty construction sites or humid marine environments. Applications include military field command units, railway station boards, and smart grid substations. The LVDS interface ensures reliability in CNC lathes, wind turbine controls, and autonomous farming equipment.
21.5″ TN LCD Product Specifications
| Model Number | G215HVN01.3 |
|---|---|
| Größe | 21.5 |
| Auflösung | 1920*1080 |
| Outline Dimension | 495.6×292.2×17.35 |
| Active Area | 476.64×268.11 |
| Brightness(cd/m²) | 1000 |
| Schnittstelle | LVDS |
| Ansicht Richtung | IPS |
| Betriebstemperatur | -20~80 |
| Storage Temperature | -20~80 |
| LED Lifetime | 50000 |
| Touchscreen-Unterstützung | Without |
| Contrast Ratio | 5000:1 |
| Power Supply | 5.0V |
| Anzeige Typ | Color LCD |
21.5″ TFT LCD Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
