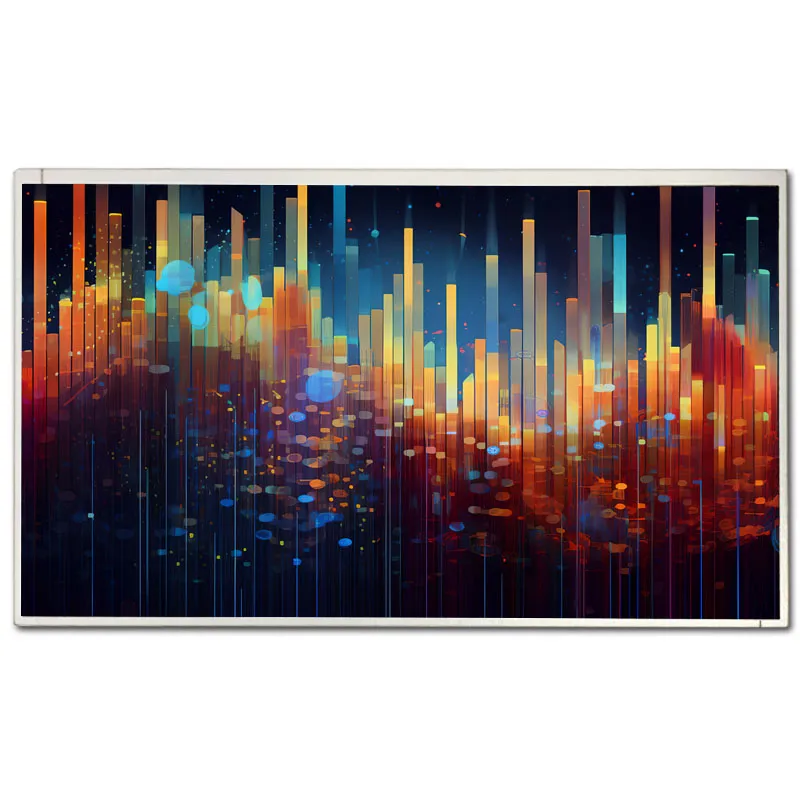

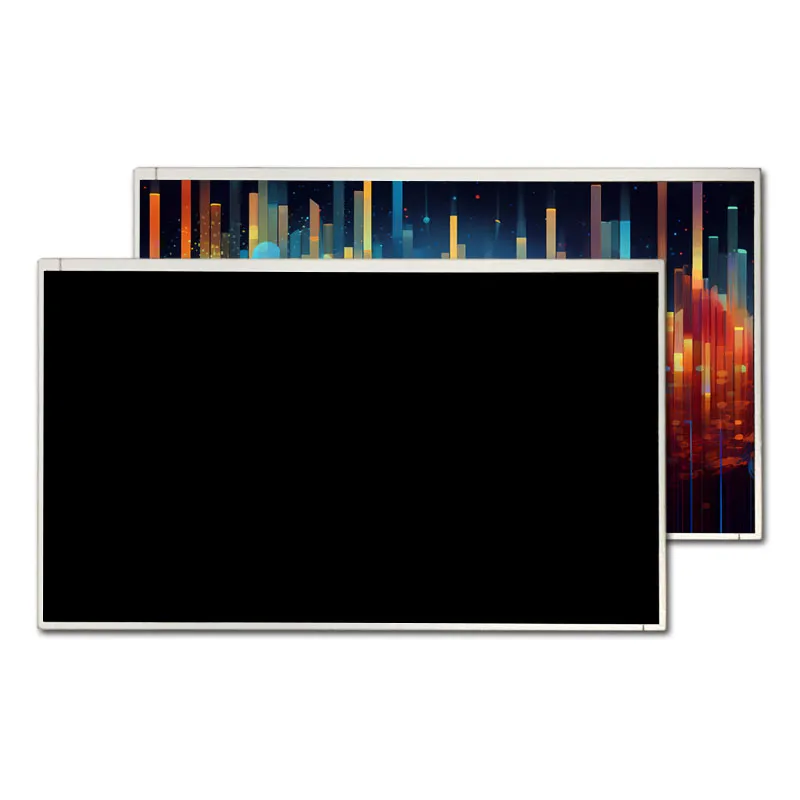

AUO G238HAN01. 0 23.8" FHD IPS Industrial LCD Display Panel, LVDS Interface

Artikelnummer: DS50062
Größe:

Modellnummer

G238HAN01.0

Auflösung:

Schnittstelle:

Betriebstemperatur:

-0℃~50℃

Helligkeit (cd/m²):

250

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

AUO G238HAN01.0 23.8" FHD IPS panel with wide temp range, LVDS interface, 30K-hour LED life. Ideal for industrial and digital signage.

Preisanfrage für Volumen







    Beschreibung

    G238HAN01.0 Key Features:

    The AUO G238HAN01. 0 is a high-performance 23.8-inch Full HD IPS LCD panel designed for industrial and commercial applications. Boasting a 1920x1080 resolution and 250 cd/m² brightness, it delivers crisp visuals with 1000:1 contrast for vibrant image clarity. The IPS technology ensures ultra-wide viewing angles (89°/89°/89°/89°), making it ideal for multi-user environments. Built for durability, it operates in extreme temperatures (-20°C to 60°C) and features a robust 30,000-hour LED lifespan. With an ultra-slim profile (11.65mm thickness) and LVDS interface, this display integrates seamlessly into space-constrained setups. Its 5V power supply reduces energy consumption, while the rugged design ensures reliability in demanding conditions. Perfect for industrial control systems, digital signage, medical devices, and retail POS terminals, the G238HAN01.0 balances performance, longevity, and versatility.



    Applications & Performance:

    Engineered for mission-critical environments, the G238HAN01. 0 excels in 24/7 operations. Its IPS panel ensures consistent color accuracy across 178° angles, ideal for public information displays, factory automation dashboards, and healthcare monitoring systems. The wide temperature tolerance (-20°C to 60°C) supports outdoor kiosks and unheated storage facilities, while anti-glare surface technology enhances readability in bright settings. The LVDS interface guarantees stable signal transmission for industrial PCs and embedded systems. In retail, its slim bezel design enables seamless multi-screen setups for interactive catalogs or menu boards. Medical professionals benefit from flicker-free performance during prolonged diagnostics, while manufacturing lines leverage its shock-resistant construction. With 30,000-hour LED longevity and low power consumption, it minimizes maintenance costs and downtime across industries.

    23.8" TN LCD Product Specifications

    Modellnummer G238HAN01.0
    Größe 23.8
    Auflösung 1920*1080
    Umriss Dimension 543×317.4×11.65
    Aktiver Bereich 527.04×296.46
    Helligkeit(cd/m²) 250
    Schnittstelle LVDS
    Ansicht Richtung IPS
    Betriebstemperatur -0~50
    Lagertemperatur -20~60
    LED-Lebensdauer 30000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 1000:1
    Stromversorgung 5.0V
    Anzeige Typ Farb-LCD

    23.8" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G238HAN01.0 23.8-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G238HAN01.0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 23.8-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G238HAN01.0?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G238HAN01.0?

    Use 1920 × 1080 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G238HAN01.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G238HAN01.0

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -0℃~50℃

    Helligkeit (cd/m²):

    250

    Touchscreen-Unterstützung:

    Anzeige Typ:
