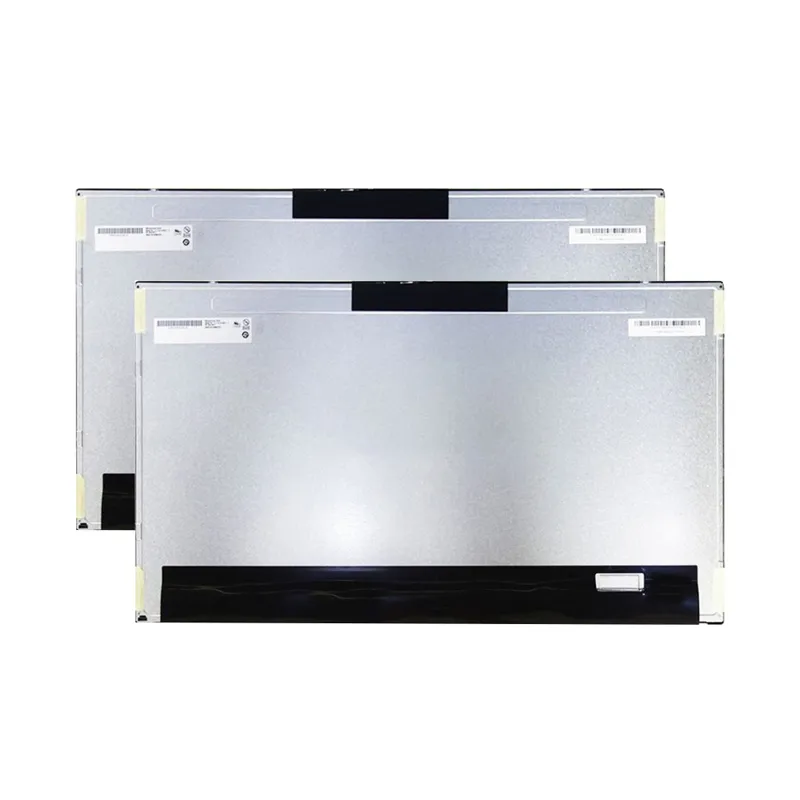

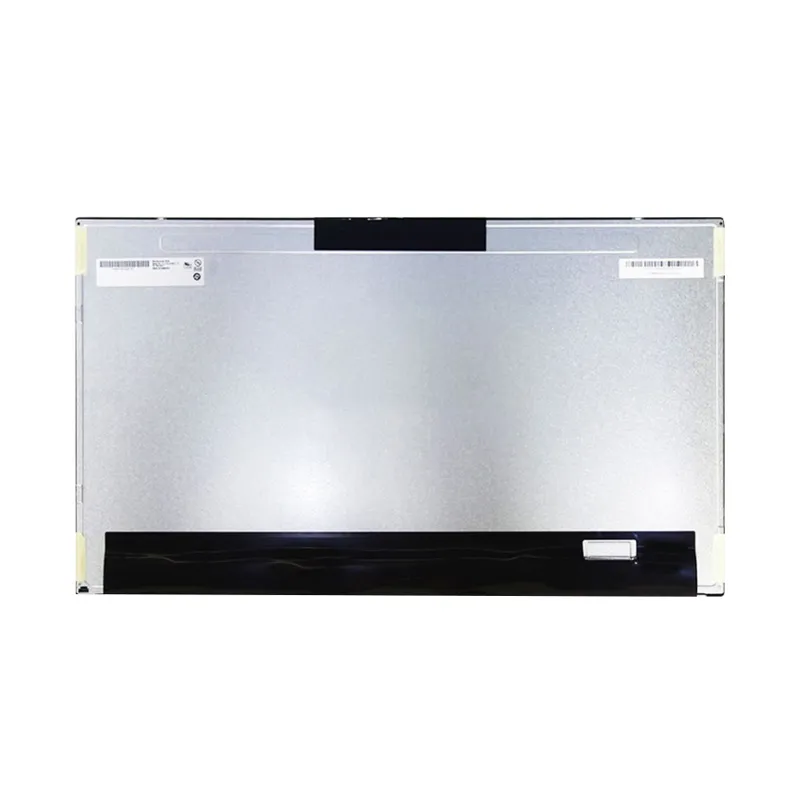

AUO G238HAN01.1 23.8" FHD IPS Industrial LCD Panel - 400cd/m² Brightness, LVDS Interface

Artikelnummer: DS50063
Größe:

Modellnummer

G238HAN01.1

Auflösung:

Schnittstelle:

Betriebstemperatur:

-0℃~50℃

Helligkeit (cd/m²):

400

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

AUO G238HAN01.1 23.8" FHD IPS panel, 400cd/m² brightness, 50K-hour lifespan,Industrial LCD with 178° viewing angles,Ideal for high-light environments.

Preisanfrage für Volumen







    Beschreibung

    G238HAN01.1 Key Features:

    The AUO G238HAN01.1 is a premium 23.8-inch Full HD IPS LCD panel engineered for high-brightness industrial and commercial applications. With a sharp 192×108 resolution and exceptional 400 cd/m² brightness, it delivers vivid, glare-resistant visuals even in brightly lit environments. The IPS panel ensures consistent 89°/89°/89°/89° viewing angles, perfect for collaborative workspaces and public displays. Designed for longevity, its 50,000-hour LED lifespan minimizes replacements, while the robust 100:1 contrast ratio enhances image depth. Operating efficiently at 5V power, it reduces energy costs and supports seamless integration into embedded systems via LVDS. With a slim 11.65mm profile and durable construction, this panel thrives in temperature-controlled settings (°C to 50°C) and survives storage extremes (-20°C to 60°C). Ideal for digital signage, transportation hubs, retail kiosks, and indoor industrial dashboards, the G238HAN01.1 combines reliability with cutting-edge performance.



    Applications & Performance:

    The G238HAN01.1 excels in high-visibility scenarios. Its 400cd/m² brightness ensures clarity in sunlit retail storefronts, airport information boards, and subway timetable displays. The IPS technology maintains color fidelity across 178° angles, ideal for multi-user control rooms or healthcare imaging monitors. The extended 50,000-hour lifespan suits 24/7 operations like factory automation systems or security surveillance centers. LVDS connectivity ensures stable data transfer for industrial PCs, while the slim bezel allows seamless tiling in video walls for advertising or command centers. Though optimized for indoor use (°C–50°C), its storage resilience (-20°C–60°C) ensures safe logistics. Anti-glare surface technology reduces reflections in brightly lit museums or train stations, while flicker-free operation reduces eye strain in prolonged medical diagnostics. Energy-efficient 5V operation aligns with green building standards, making it a sustainable choice for smart offices and public infrastructure.

    23.8" TN LCD Product Specifications

    Modellnummer G238HAN01.1
    Größe 23.8
    Auflösung 1920*1080
    Umriss Dimension 543×317.4×11.65
    Aktiver Bereich 527.04×296.46
    Helligkeit(cd/m²) 400
    Schnittstelle LVDS
    Ansicht Richtung IPS
    Betriebstemperatur -0~50
    Lagertemperatur -20~60
    LED-Lebensdauer 50000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 1000:1
    Stromversorgung 5.0V
    Anzeige Typ Farb-LCD

    23.8" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G238HAN01.1 23.8-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G238HAN01.1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 23.8-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G238HAN01.1?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G238HAN01.1?

    Use 1920 × 1080 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G238HAN01.1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G238HAN01.1

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -0℃~50℃

    Helligkeit (cd/m²):

    400

    Touchscreen-Unterstützung:

    Anzeige Typ:
