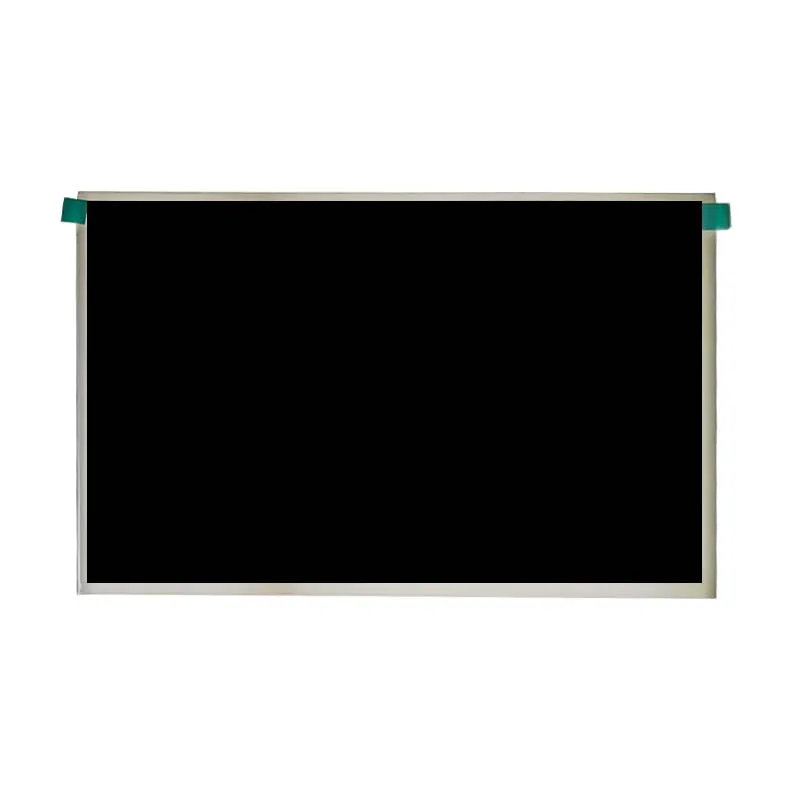

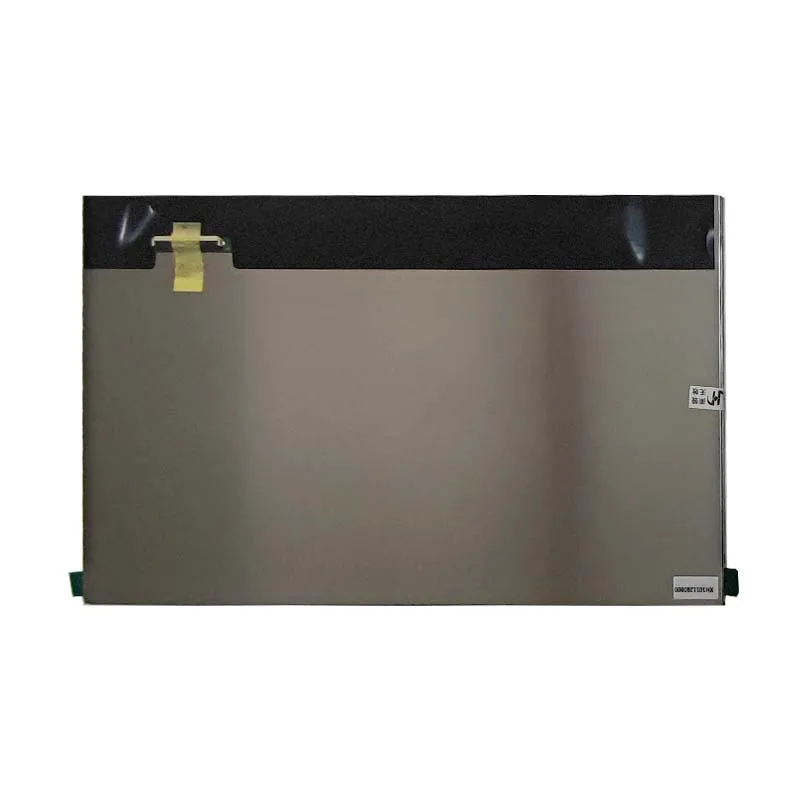

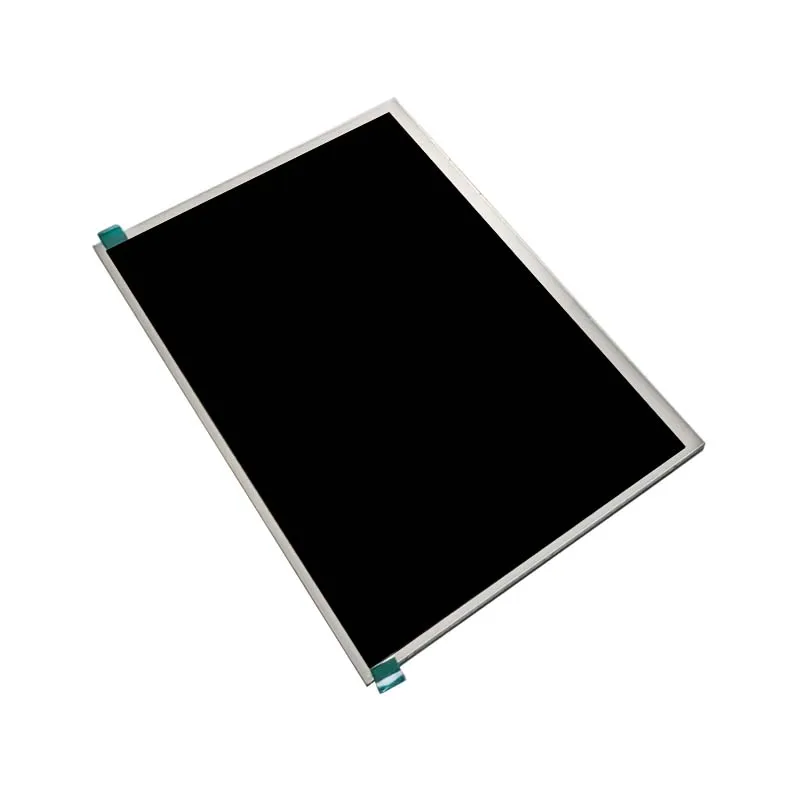

EE101IA-01D 10.1 inch 1280×800 IPS LCD , 85° Viewing Angles, Wide-Temp (-20°C~70°C)

Artikelnummer: DS50216
Größe:

Modellnummer

E101IA-01D

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Touchscreen-Unterstützung:

Anzeige Typ:

Innolux EE101IA-01D 10.1 inch IPS Precision: 1280×800 Clarity in 1.06mm Slim Design for Surgical Imaging & Industrial HMIs.

Preisanfrage für Volumen







    Beschreibung

    EE101IA-01D General Desription

    The Innolux EE101IA-01D revolutionizes visual precision with a 10.1-inch IPS panel offering 1280×800 resolution and 85°/85°/85°/85° ultra-wide viewing angles, ensuring color consistency for collaborative workspaces. Its groundbreaking 1.06mm ultra-slim profile (223.95×144.24mm outline) sets new standards for space-critical embedded systems, while the LVDS interface guarantees interference-free data transmission in EMI-heavy environments. Engineered for -20°C~70°C operation, this display thrives in sterilization chambers or cold storage monitoring. With 800:1 contrast ratio and medical-grade anti-reflective coating, it delivers sharp grayscale imaging for diagnostic applications. The 2.5V~15V wide voltage support enables seamless integration into portable devices and energy-efficient industrial controls.



    Application & Performanc

    Designed for mission-critical visualization, the EE101IA-01D excels in surgical imaging consoles, pharmaceutical lab analyzers, and aerospace diagnostic panels where IPS color accuracy is non-negotiable. Its 1280×800 resolution reveals fine details in semiconductor wafer inspection systems or multilayer PCB diagnostic tools. The ultra-thin design enables integration into wearable medical devices and robotic surgery arms, while 85° viewing angles support multi-angle readability in collaborative engineering stations. LVDS stability ensures reliability in MRI equipment interfaces or power plant control rooms. With humidity-resistant construction, it performs in food processing HMIs and cleanroom monitoring systems, delivering glare-free performance under surgical lighting.

    10.1" Product Specifications

    Diagonale Größe 10,1 Zoll
    Pixel Zahl 1280×800
    Luminance -
    Module Size 223.95×144.24×1.06
    Aktiver Bereich 216.96×135.6
    Viewing Direction IPS
    View Angle(U/D/R/L) 85/85/85/85
    Schnittstelle LVDS
    Kontrastverhältnis 800:1
    Betriebstemperatur -20~70℃
    Lagertemperatur -30~80℃
    LED-Lebensdauer -
    Touchscreen-Unterstützung Ohne
    Stromversorgung 2.5/8.2/15/-13V
    Anzeige Typ Color TFT

    Innolux LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    Innolux EE101IA-01D 10.1-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux EE101IA-01D?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux EE101IA-01D?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux EE101IA-01D compare with the AUO G101EAN02.1?

    Both catalog listings show 10.1 inches, 1280 × 800 and LVDS. The catalog lists −20 °C to +70 °C for the Innolux panel and −20 °C to +60 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G101EAN02.1

    Is the Innolux EE101IA-01D still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    E101IA-01D

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Touchscreen-Unterstützung:

    Anzeige Typ:
