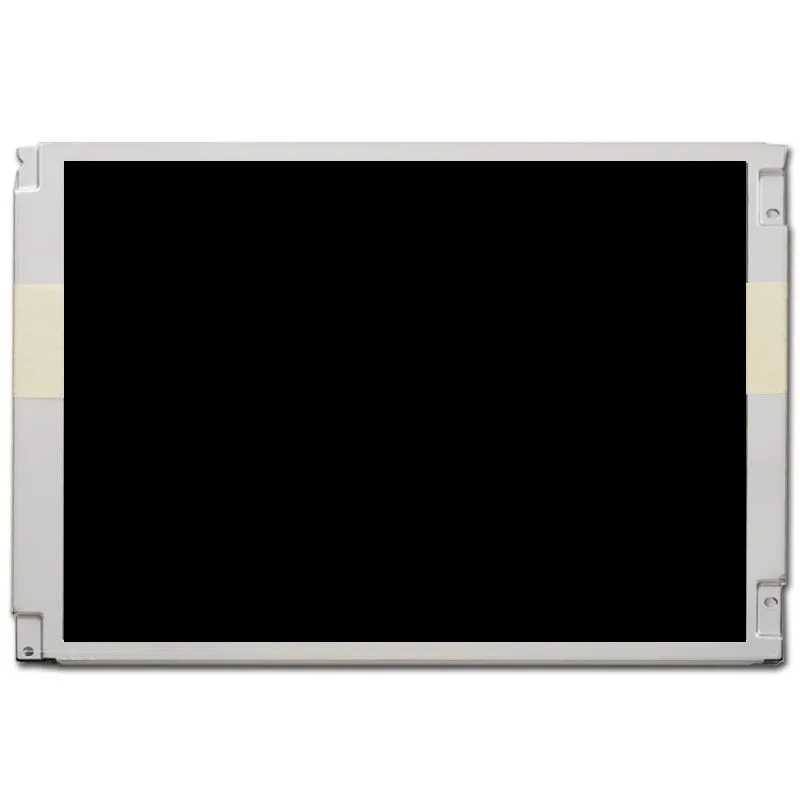

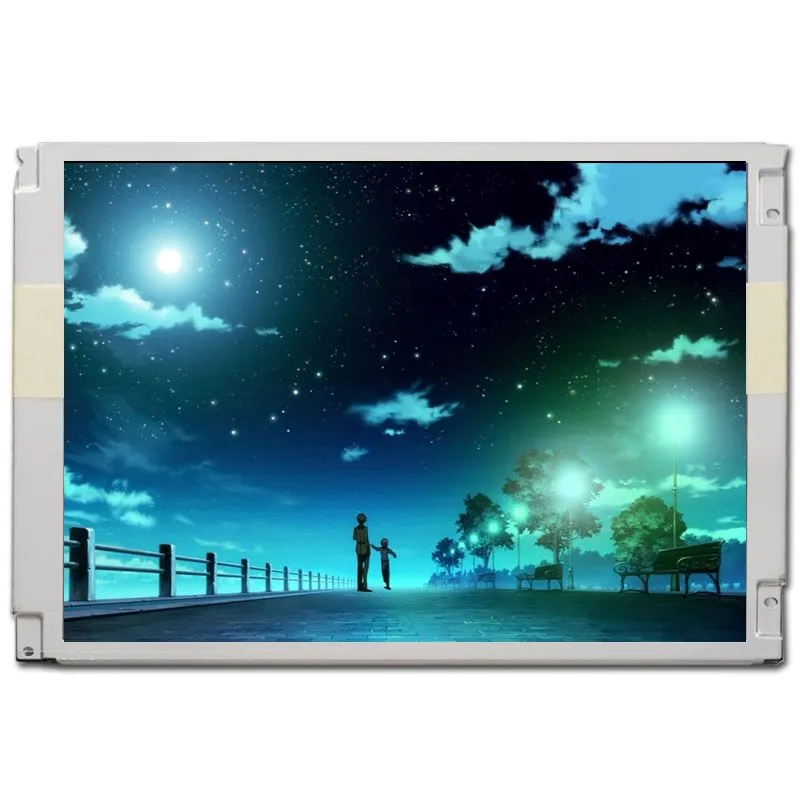

G104VN01 V1 AUO 10.4 inch TN LCD Panel 640*480 Pixels

Artikelnummer: DS50016
Größe:

Modellnummer

G104VN01.V1

Auflösung:

Schnittstelle:

Helligkeit (cd/m²):

450

Betriebstemperatur:

-30℃~ 85℃

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

G104VN01 V1 from Brand AUO, Resolution 640*480, Operating Temperature from -30~85℃,1 channel LVDS Interface, Stable supply, Original A grade quality

Preisanfrage für Volumen







    Beschreibung

    G104VN01 V1 General Description

    The screen format is intended to support VGA (640(H) x 480(V)) screen and 16.2M (RGB 8-bits)or 262k colors (RGB 6-bits). LED driving board for backlight unit is included in G104VN01 V1 and the LED unit is replaceable. G104VN01 V1 designed with wide viewing angle; wide temperature and long life LED backlight,which is well suited for industial ,HMI applications.



    G104VN01 V1 AUO TN LCD Panel Characteristics

    The 10.4 inch AUO TN LCD Panel features an active area of 211.2 mm (H) x 158.4 mm (V) and a resolution of 640 x 480 pixels, arranged in a RGB vertical stripe pattern with a pixel pitch of 0.33 mm. Operating in a TN (Twisted Nematic) normally white display mode, it has a nominal input voltage of 3.3V and a typical power consumption of 5.2W under an all-black pattern. The module weighs approximately 355 grams and has physical dimensions of 243.0 mm (H) x 176.6 mm (V) x 8.0 mm (D). It utilizes a 1-channel LVDS electrical interface and features an anti-glare surface treatment with a hardness rating of 3H, supporting 16.2 million colors (8-bit) and 262K colors (6-bit). Designed for operation and storage within a temperature range of -30°C to +85°C, the module is also RoHS compliant, ensuring adherence to environmental standards.

    10.4" TFT-LCD Product Specifications

    Modellnummer G104VN01.V1
    Größe 10.4
    Auflösung 640*480
    Umriss Dimension 243*176.6*8.5
    Aktiver Bereich 211.2*158.4
    Helligkeit(cd/m²) 450
    Schnittstelle LVDS
    Ansicht Richtung TN
    Betriebstemperatur -30~85
    Lagertemperatur -30~85
    LED-Lebensdauer 50000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 700:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    10.4" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G104VN01 V1 10.4-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G104VN01 V1?

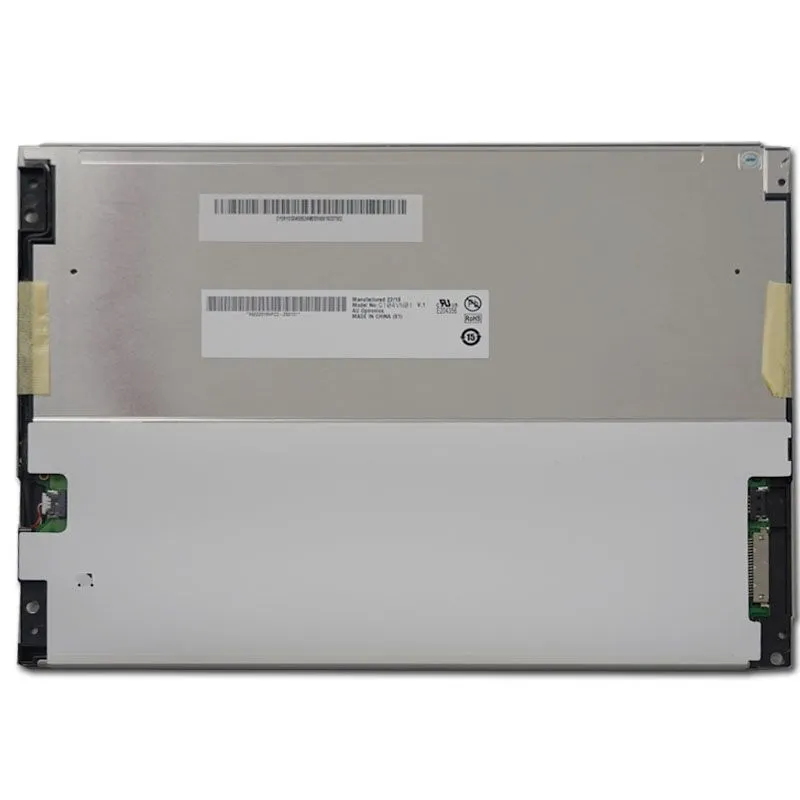

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.4-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G104VN01 V1?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G104VN01 V1?

    Use 640 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G104VN01 V1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G104VN01.V1

    Auflösung:

    Schnittstelle:

    Helligkeit (cd/m²):

    450

    Betriebstemperatur:

    -30℃~ 85℃

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
