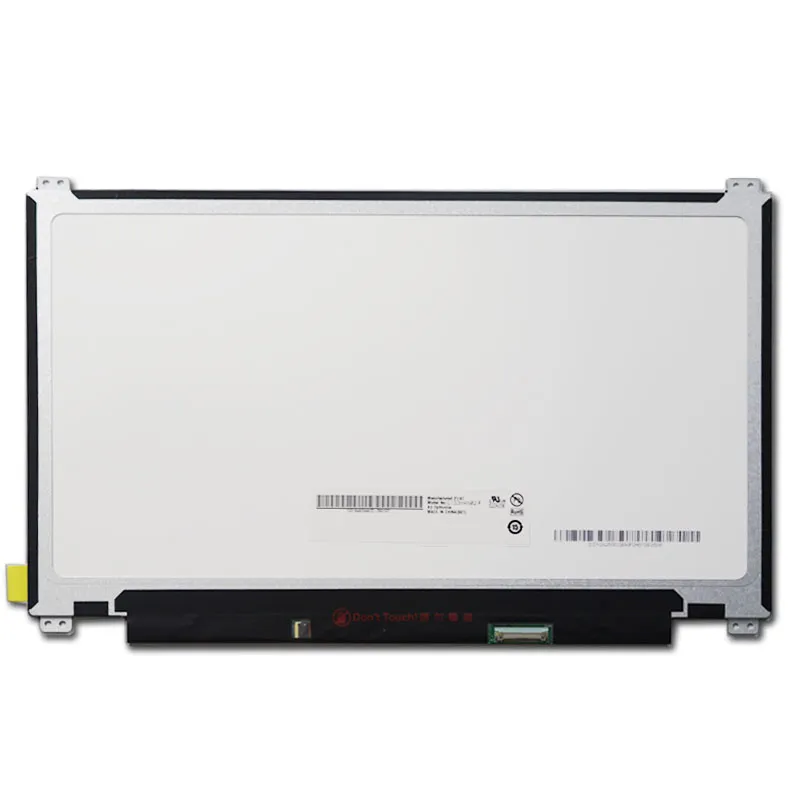

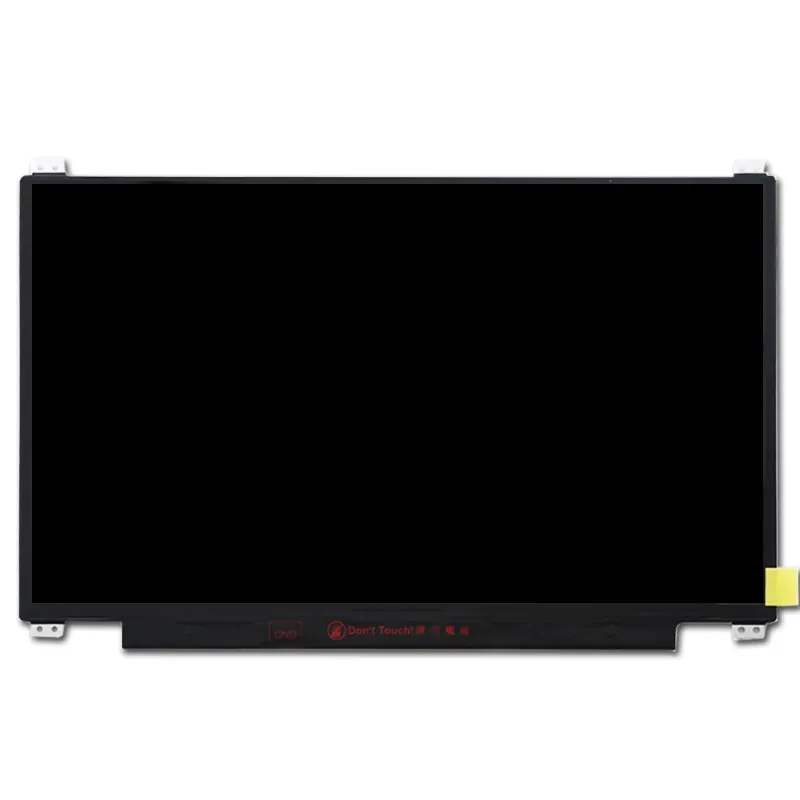

G133HAN02.0 AU Optronics TFT Screen 1920*1080 Luminance 400cd/m²

Artikelnummer: DS50027
Größe:

Modellnummer

G133HAN02.0

Auflösung:

Schnittstelle:

Helligkeit (cd/m²):

400

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

G133HAN02.0 TFT Screen from brand AU Optronics Cooperation  offering high resolution 1920*1080  Brightness 500cd/m²  Operating Temperature from -0~50℃ EDP 30 pin  Stable supply  Original A grade quality

Preisanfrage für Volumen







    Beschreibung

    AU Optronics G133HAN02.0 Key Features

    The G133HAN02.0 TFT screen from AU Optronics is a high-performance display solution designed for demanding applications. With a stunning resolution of 1920 x 1080 pixels, it delivers sharp and vibrant visuals, complemented by a brightness level of 500 cd/m² for excellent visibility in various lighting conditions. Operating efficiently within a temperature range of -0 to 50°C, this screen is ideal for both indoor and controlled outdoor environments. It features a 30-pin eDP interface, facilitating seamless integration into a variety of systems. As an original A-grade quality product with a stable supply, the G133HAN02.0 is perfect for use in industrial applications, consumer electronics, and digital signage, ensuring durability and long-lasting performance.



    AU Optronics G133HAN02.0 Application

    The G133HAN02.0 TFT screen from AU Optronics is versatile and suitable for a wide range of applications across various industries. Its high resolution of 1920 x 1080 pixels and brightness of 500 cd/m² make it ideal for digital signage, where clear and vibrant visuals are essential for capturing audience attention. In industrial settings, it can be integrated into control panels and human-machine interfaces (HMIs), providing operators with reliable visual feedback in environments with varying temperatures from -0 to 50°C. Additionally, its 30-pin eDP interface allows for easy integration into consumer electronics such as monitors and tablet devices, enhancing user experience with high-quality displays. Overall, the G133HAN02.0 is an excellent choice for applications that require durability, clarity, and performance.

    13.3" TFT-LCD Product Specifications

    Modellnummer G133HAN02.0
    Größe 13.3
    Auflösung 1920*1080
    Umriss Dimension 306.3*195.29*3.2
    Aktiver Bereich 293.472*165.078
    Helligkeit(cd/m²) 400
    Schnittstelle eDP
    Ansicht Richtung ALLE
    Betriebstemperatur -0~50
    Lagertemperatur -20~60
    LED-Lebensdauer 30000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 800:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    13.3" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G133HAN02.0 13.3-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G133HAN02.0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 13.3-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing eDP cable and controller with the AUO G133HAN02.0?

    For the listed eDP interface, match lane count, link rate, power sequencing and connector pinout. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G133HAN02.0?

    Use 1920 × 1080 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G133HAN02.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G133HAN02.0

    Auflösung:

    Schnittstelle:

    Helligkeit (cd/m²):

    400

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
