Industrial PMOLED Display OP Temperature from ‐40℃~70℃

Artikelnummer: DS10028
Größe:

Auflösung:

Schnittstelle:

Betriebstemperatur:

‐40℃~70℃

Helligkeit (cd/m²):

200

Touchscreen-Unterstützung:

Anzeige Typ:

0.78 inch Industrial PMOLED Display  Resolution 80*128 pixels  IIC Interface  Operation Temperature ‐40℃~70℃  Application for Electronic bracelet instruments, smart devices

Preisanfrage für Volumen







    Beschreibung

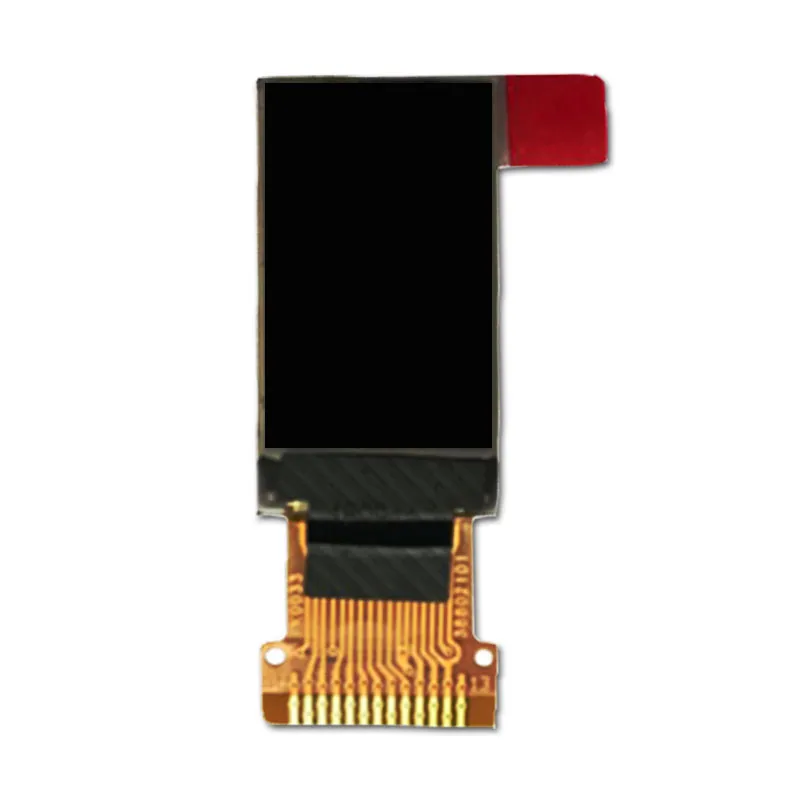

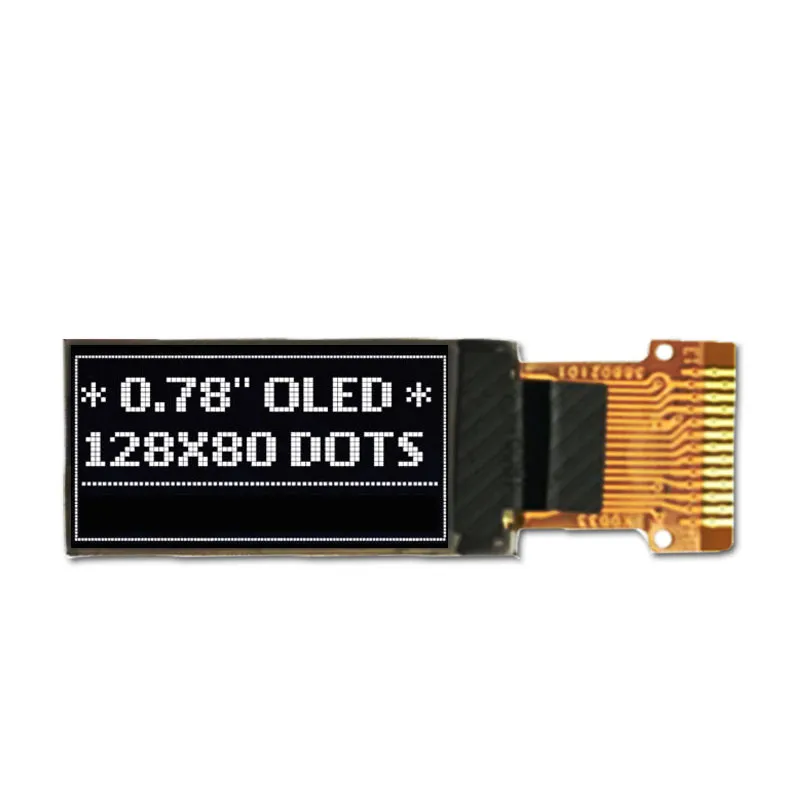

    0.78" pmoled Displays Features

    The 0.78 Inch Industrial PMOLED Display is a compact and efficient visual solution ideal for small devices, boasting a diagonal size that allows for seamless integration without compromising functionality. With a resolution of 80 x 128 pixels, it delivers sharp images and clear text, making it suitable for displaying essential information in confined spaces. The display features an IIC (Inter-Integrated Circuit) interface, which facilitates easy and efficient connectivity with microcontrollers, simplifying the integration process and reducing development time. Designed to operate effectively in extreme conditions, it has a wide temperature range of -40℃ to 70℃, ensuring reliability for industrial and outdoor applications.



    0.78" pmoled Display Application

    The 0.78 Inch Industrial PMOLED Display is an essential component for electronic bracelet instruments and various smart devices, providing a critical interface for displaying health metrics, notifications, and time. Its compact size ensures seamless integration into wearable technology, Designed for durability, it operates effectively in extreme temperatures, ensuring consistent performance in both indoor and outdoor environments, which is vital for active or industrial applications.

    0.78" pmoled Display Product Specifications

    LCD Size(inch) 0.78(Diagonal)
    Number of Pixels 80*128
    Outline Dimension(mm) 12.13*23.6*1.227
    Active Area(mm) 9.68*17.26
    Display type PMOLED
    Schnittstelle IIC
    Betriebstemperatur ‐40℃~70℃
    Lagertemperatur ‐40℃~85℃
    - -
    - -
    - -
    - -
    - -
    - -

    0.78" Pmoled Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    0.78-Inch 80 × 128 I²C PMOLED Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 0.78-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 80 × 128 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed I²C interface, check the controller address, logic levels and bus pull-ups on the intended host. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed PMOLED, compare dark-scene legibility and how your static icons look in an extended run at the intended brightness. Judge readability on the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Individuelle Display-Lösungen

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    ‐40℃~70℃

    Helligkeit (cd/m²):

    200

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
