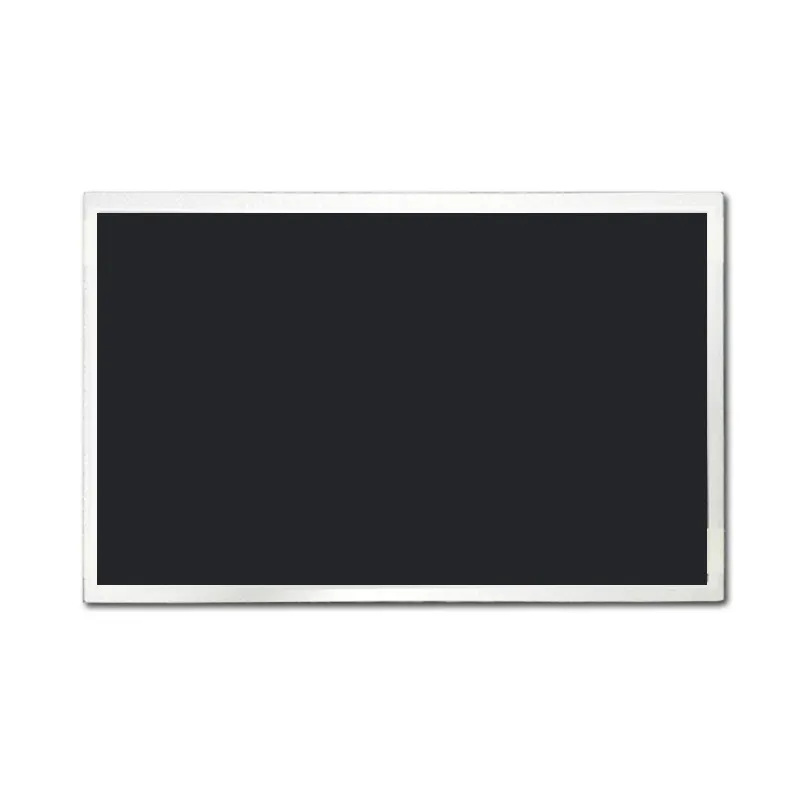

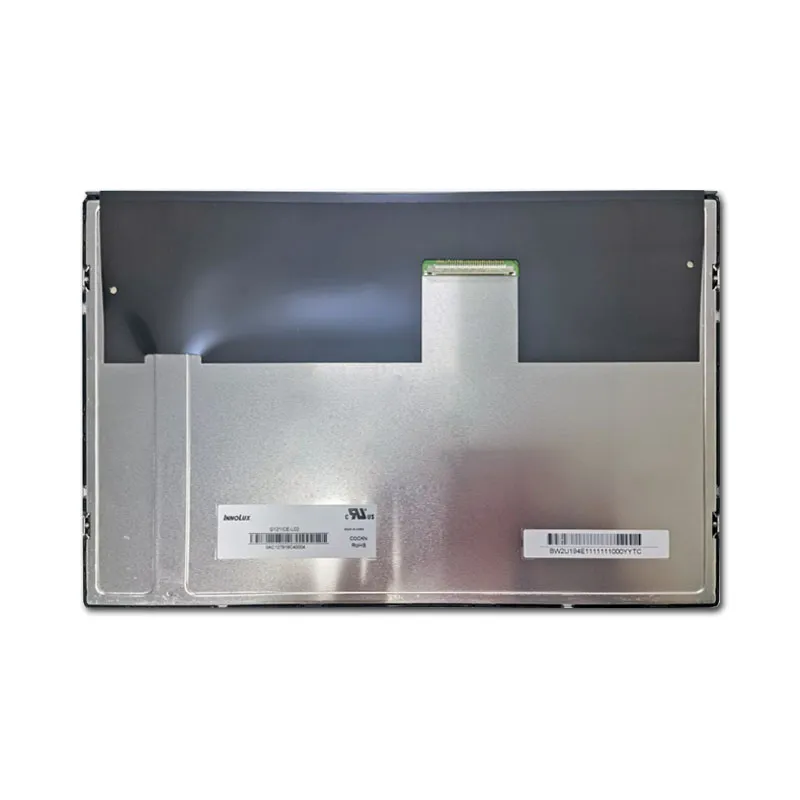

Innolux G121ICE-L02 12.1" LCD TFT Displays - 1280x800, 400nits, LVDS

Artikelnummer: DS50198
Größe:

Modellnummer

G121ICE-L02

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

400

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

Crystal-Clear & Durable! Innolux G121ICE-L02: 12.1" IPS Display, 1280x800 HD, 400nits Brightness, Built for Harsh Environments!

Preisanfrage für Volumen







    Beschreibung

    Innolux G121ICE-L02 General Description

    Innolux G121ICE-L02 12.1-inch IPS LCD panel—engineered for demanding industrial and commercial applications. 1280x800 resolution and 400nits brightness, this display delivers vivid, glare-resistant visuals even in challenging indoor environments like factories, warehouses, and retail hubs.
    it thrives in temperatures from -20°C to 70°C and offers a robust 30,000-hour lifespan, minimizing downtime in 24/7 operations. The IPS technology ensures 178° wide viewing angles and true-to-life colors, perfect for control panels, logistics terminals, and interactive kiosks. With an LVDS interface, it seamlessly integrates into embedded systems, automation controllers, and IoT devices.
    Why Choose This Panel?
    ✅ HD Clarity: Crisp text/graphics for data-heavy interfaces.
    ✅ Rugged Reliability: Shock-resistant design for industrial vibrations.
    ✅ Adaptive Brightness: 400nits ensures readability under ambient light.
    ✅ Plug & Play: LVDS compatibility for quick installation.



    G121ICE-L02 LCD TFT Displays Application

    Factory automation dashboards
    Warehouse management systems
    Self-service terminals & POS systems
    Indoor digital signage
    Customize with anti-glare coatings or touchscreen options (resistive/capacitive) to meet unique project needs.

    12.1" TFT-LCD Product Specifications

    Modellnummer G121ICE-L02
    Größe 12.1
    Auflösung 1280(RGB)×800
    Umriss Dimension 278×184×10
    Aktiver Bereich 261.12×163.2
    Helligkeit(cd/m²) 400
    Schnittstelle LVDS
    Ansicht Richtung IPS
    Betriebstemperatur -20~70
    Lagertemperatur -20~70
    LED-Lebensdauer 30000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 1000:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    12.1" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    Innolux G121ICE-L02 12.1-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G121ICE-L02?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 12.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G121ICE-L02?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux G121ICE-L02 compare with the AUO G121EAN01.0?

    Both catalog listings show 12.1 inches, 1280 × 800 and LVDS. The catalog lists −20 °C to +70 °C for the Innolux panel and −30 °C to +85 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G121EAN01.0

    Is the Innolux G121ICE-L02 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G121ICE-L02

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    400

    Touchscreen-Unterstützung:

    Anzeige Typ:
