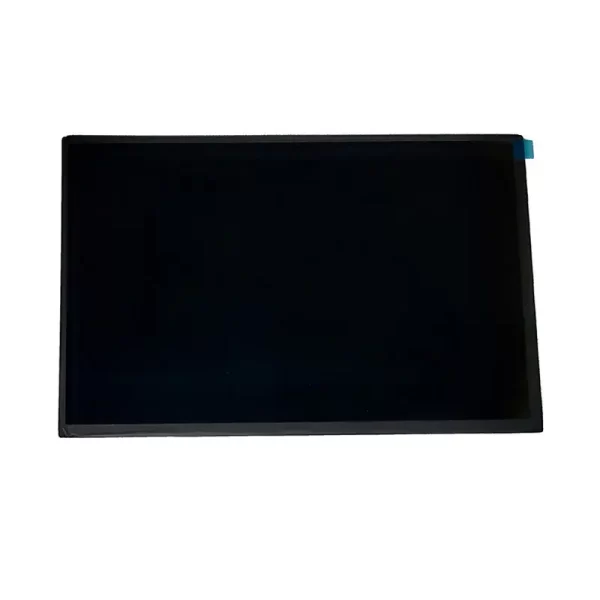

IVO M101GW4G R0 10.1 inch Full HD IPS LCD Display Slim MIPI Interface 1920×1200 Resolution

Artikelnummer: DS50259
Größe:

Modellnummer

M101GW4G

Auflösung:

Schnittstelle:

Betriebstemperatur:

-0℃~60℃

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

IVO m101gw4g r0 inch Full HD IPS LCD with MIPI Interface & Slim 4.8mm Design for Indoor Precision 1920×1200 Display.

Preisanfrage für Volumen







    Beschreibung

    M101GW4G R0 General Desription

    The IVO M101GW4G R0 is a 10.1-inch color LCD screen featuring a sharp Full HD resolution (1920×1200) and IPS technology for 85° wide viewing angles. With 350 cd/m² brightness and a 1000:1 contrast ratio, it delivers vivid visuals for indoor applications. The ultra-slim 4.8mm profile and compact outline (147.78×232mm) suit space-sensitive installations. Powered by a 3.3V supply and MIPI interface, it ensures stable data transmission and energy efficiency. Designed for 0°C to 60°C operation, it offers reliable performance in controlled environments, backed by a 22,000-hour LED lifespan.



    Application & Performanc

    Ideal for medical devices, retail POS systems, and indoor industrial control panels, the IVO M101GW4G R0 balances clarity and durability. Its Full HD resolution enhances detail in diagnostic equipment or digital signage, while the MIPI interface supports fast data transfer for responsive touch-free operations. The slim design integrates seamlessly into kiosks or smart home hubs. With a 0°C~60°C operating range, it thrives in climate-controlled settings like laboratories or warehouses. The anti-glare IPS panel ensures readability under indoor lighting, making it perfect for interactive displays, automation interfaces, and IoT dashboards requiring precision and compact form factors.

    10.1" Product Specifications

    Diagonale Größe 10,1 Zoll
    Pixel Zahl 1200×1920
    Luminance 350
    Module Size 147.78×232×4.8
    Aktiver Bereich 135.36×216.576
    Viewing Direction IPS
    View Angle(U/D/R/L) 85/85/85/85
    Schnittstelle MIPI
    Kontrastverhältnis 1000 : 1
    Betriebstemperatur -0 ~ 60 °C
    Lagertemperatur -20 ~ 60 °C
    LED-Lebensdauer 22000
    Stromversorgung 3.3V
    Touchscreen-Unterstützung Ohne
    Anzeige Typ Color TFT

    IVO LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    IVO M101GW4G R0 10.1-Inch LCD Replacement FAQ

    How do I confirm that I need the IVO M101GW4G R0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing MIPI cable and controller with the IVO M101GW4G R0?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the IVO M101GW4G R0?

    Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the IVO M101GW4G R0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    M101GW4G

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -0℃~60℃

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
