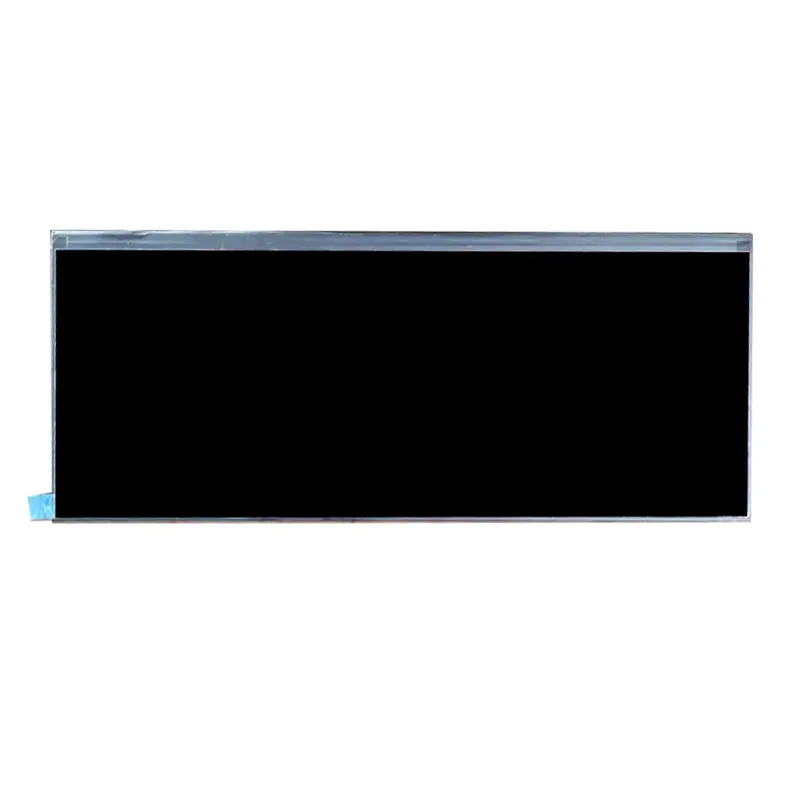

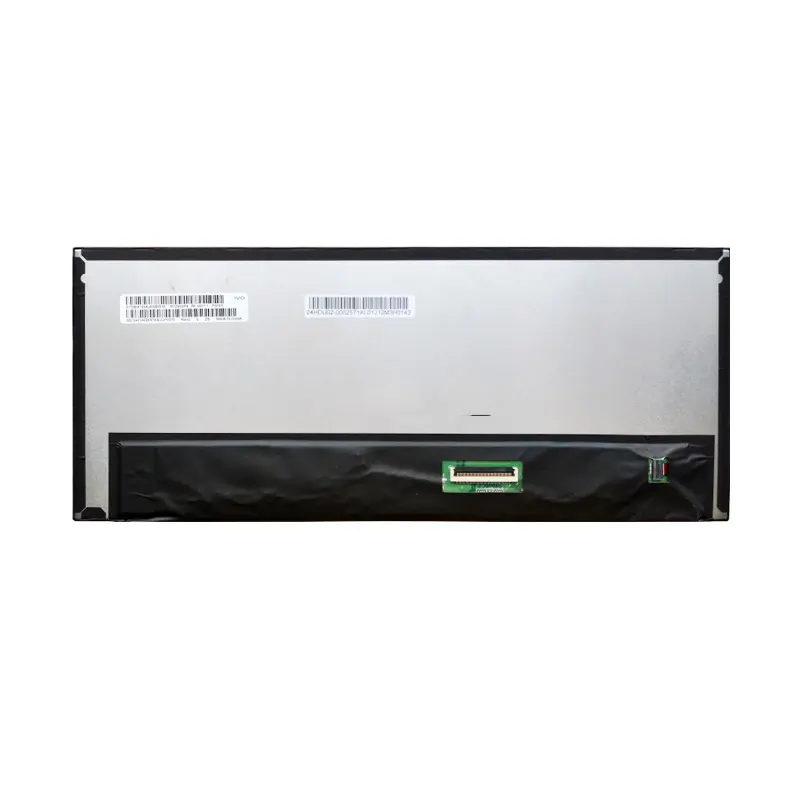

IVO M123AWF4 R0 12.3 inch 940cd/m² High Brightness IPS Display 1920×720 -30°C~85°C Wide Temperature LVDS Interface

Artikelnummer: DS50265
Größe:

Modellnummer

M123AWF4

Auflösung:

Schnittstelle:

Betriebstemperatur:

-30℃~ 85℃

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

IVO m123awf4 r0 940cd/m² IPS Display for Harsh Environments 1920×720, -30°C~85°C Wide Temperature, LVDS Interfacepanel .

Preisanfrage für Volumen







    Beschreibung

    M123AWF4 R0 General Desription

    The IVO M123AWF4 R0 is a 12.3-inch color LCD display designed for extreme environments. With a sharp 1920×720 resolution and 1000:1 contrast ratio, it delivers vibrant visuals even under direct sunlight, thanks to its exceptional 940cd/m² brightness. The IPS panel ensures consistent 85/85/85/85 viewing angles, ideal for multi-user applications. Built to withstand temperatures from -30°C to 85°C and backed by a 30,000-hour LED lifespan, it excels in harsh industrial settings. Its slim profile (299.03×123.012×9.24mm) and low 3.3V power consumption enhance integration flexibility. The LVDS interface guarantees stable signal transmission for mission-critical systems.



    Application & Performanc

    Perfect for outdoor digital signage, automotive dashboards, and heavy machinery interfaces, the M123AWF4 R0 thrives in extreme conditions. Its ultra-high brightness ensures readability in sunlight, while the IPS panel maintains color accuracy for control panels or medical imaging devices. The extended temperature range supports deployment in Arctic logistics or desert solar farms. Rugged construction resists vibrations and dust, making it ideal for construction equipment, aviation displays, and railway systems. LVDS compatibility ensures seamless integration with legacy industrial systems, and the slim design fits space-constrained environments.

    12.3" Product Specifications

    Diagonal Size11.8 12.3 inch
    Pixel Zahl 1920×720
    Luminance 940
    Module Size 299.03×123.012×9.24
    Aktiver Bereich 292.032×109.512
    Viewing Direction TN
    View Angle(U/D/R/L) 85/85/85/85
    Schnittstelle LVDS
    Kontrastverhältnis 1000 : 1
    Betriebstemperatur -30 ~ 85 °C
    Lagertemperatur -40 ~ 90 °C
    LED-Lebensdauer 30000
    Stromversorgung 3.3V
    Touchscreen-Unterstützung Ohne
    Anzeige Typ Color TFT

    IVO LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    IVO M123AWF4 R0 12.3-Inch LCD Replacement FAQ

    How do I confirm that I need the IVO M123AWF4 R0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 12.3-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the IVO M123AWF4 R0?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the IVO M123AWF4 R0?

    Use 1920 × 720 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the IVO M123AWF4 R0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
