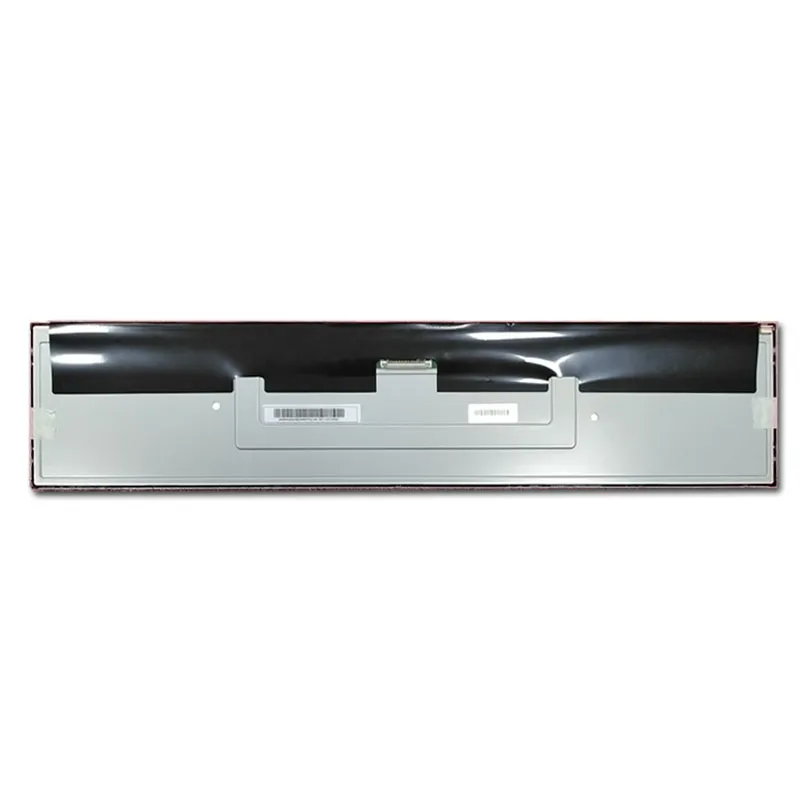

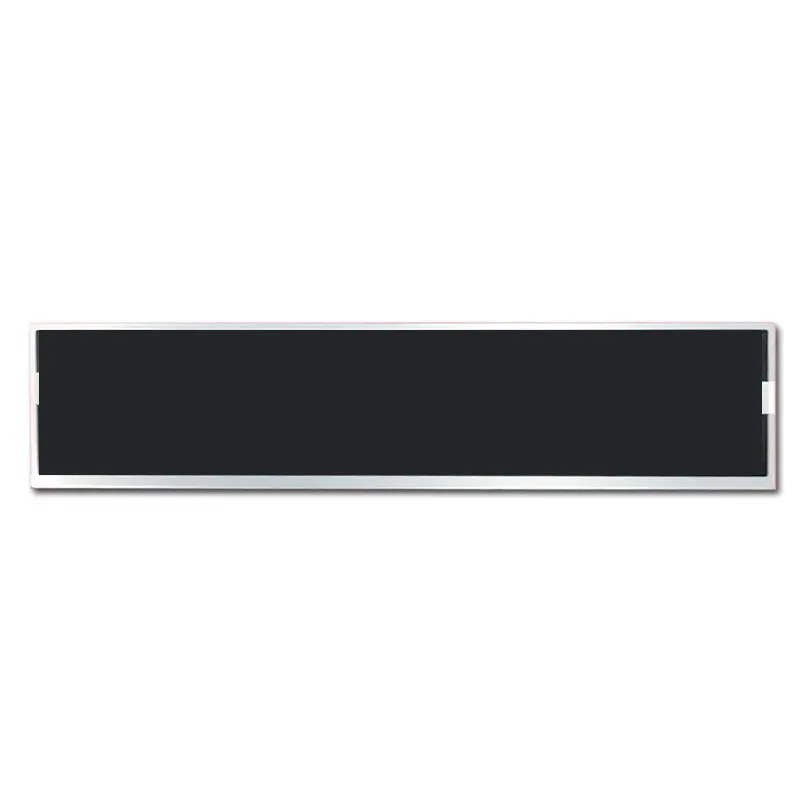

QV240FBM-N10 BOE LCD Panel 24 inch 1920*360 pixels Brightness 300 cd/m²

Artikelnummer: DS20160
Größe:

Modellnummer

V240FBM-N10

Auflösung:

Schnittstelle:

Betriebstemperatur:

-0℃~50℃

Helligkeit (cd/m²):

300

Touchscreen-Unterstützung:

Anzeige Typ:

QV240FBM-N10 BOE LCD Panel, offering resolution 1920*360 pixels, brightness 300 cd/m, AA size 597.888(W)×112.104(H) mm, LVDS (2 ch, 8-bit) , 30 pins Connector

Preisanfrage für Volumen







    Beschreibung

    QV240FBM-N10 General Desription

    QV240FBM-N10 is a 24” diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -0 ~ 50°C , a storage temperature range of -20 ~ 60°C.



    QV240FBM-N10 Features

    --Outdoor High Brightness 300 cd/m
    --WLED Backlight,Life ≥ 50K hours
    --Stretched Bar LCD Display
    --89/89/89/89 IPS Wide Viewing Angle
    --1200:1 High Contrast Ratio
    --RoHS

    QV240FBM-N10 Product Specifications

    Diagonale Größe 24"(Diagonal)
    Pixel Zahl 1920×360 Pixels
    Luminance 300
    Module Size 612.7(H)×132.1(V) ×13.3(D)
    Aktiver Bereich 597.888(W)×112.104(H)
    Viewing Direction ALLE
    View Angle(U/D/R/L) 89/89/89/89
    Schnittstelle LVDS 30
    Kontrastverhältnis 1200
    Betriebstemperatur -0~50℃
    Lagertemperatur -20~60℃
    - -
    - -
    - -
    - -

     Bar LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    BOE QV240FBM-N10 24-Inch Stretched Bar LCD FAQ

    How do I confirm that I need the BOE QV240FBM-N10?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 24-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the BOE QV240FBM-N10?

    Check the connector pinout, video timing, panel supply and backlight enable or dimming against the exact drawing. Send us the controller model or cable diagram before reusing the harness.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the BOE QV240FBM-N10?

    Use 1920 × 360 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the BOE QV240FBM-N10 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and adapt its cable or front assembly?

    We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
