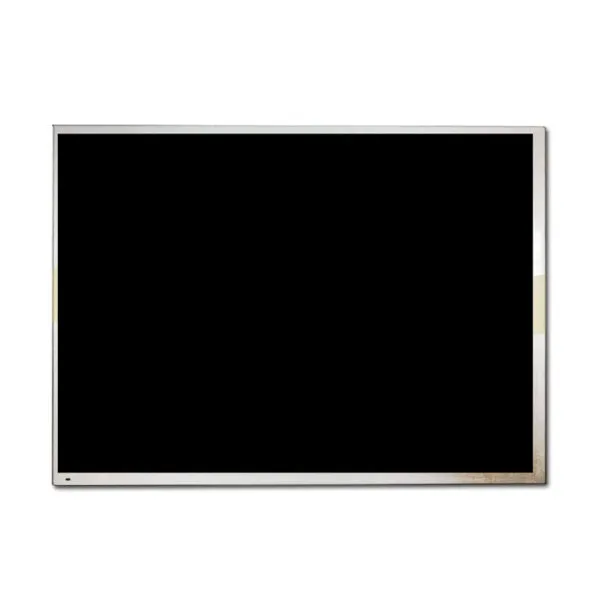

TIANMA TM050RDH03-41 5.0 inch High-Performance LCD for Industrial & Embedded Systems

Artikelnummer: DS50256
Größe:

Modellnummer

M050RDH03-41

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Touchscreen-Unterstützung:

Anzeige Typ:

TIANMA TM050RDH03-41 250cd/m² 5 inch 800×480 Sunlight-Readable LCD for Harsh Industrial Environments (-20°C~70°C).

Preisanfrage für Volumen







    Beschreibung

    TM050RDH03-41 General Desription

    The TIANMA TM050RDH03-41 is a 5.0-inch color LCD module with 800×480 resolution, delivering sharp visuals for critical applications. Featuring 250 cd/m² brightness and a 600:1 contrast ratio, it ensures clarity in direct sunlight or low-light environments. Engineered for reliability, it operates in extreme temperatures (-20°C to 70°C) and supports 3.3V low-power operation for energy efficiency. The TN panel with 70/70/50/70 viewing angles and RGB interface guarantees stable performance in industrial automation. With a compact design (120.7×75.8×3.1mm) and 20,000-hour LED lifespan, this non-touch display is built for 24/7 durability in harsh conditions.



    Application & Performanc

    Ideal for industrial HMIs, medical monitors, and automotive dashboards, the TM050RDH03-41 excels in demanding environments. Its wide temperature tolerance (-20°C~70°C) suits outdoor equipment like solar controllers and construction machinery, while the slim profile fits IoT devices and portable diagnostic tools. The high brightness ensures readability in agricultural sensors and logistics scanners. With fast RGB signal processing, it enables real-time data display for laboratory instruments and smart meters. Ruggedized for vibration resistance, it serves AGVs and factory robots. Medical OEMs leverage its stable performance for patient monitors, while embedded developers value its 3.3V compatibility for battery-powered solutions.

    5.0" Product Specifications

    Diagonale Größe 5.0 inch
    Pixel Zahl 800×480
    Luminance 400
    Module Size 120.7×75.8×3.1
    Aktiver Bereich 108×64.8
    Viewing Direction TN
    View Angle(U/D/R/L) 70/70/50/70
    Schnittstelle RGB
    Kontrastverhältnis 600 : 1
    Betriebstemperatur -20 ~ 70 °C
    Lagertemperatur -30 ~ 80 °C
    LED-Lebensdauer 20000
    Touchscreen-Unterstützung Ohne
    Stromversorgung 3.3V
    Anzeige Typ Color TFT

    TIANMA LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    Tianma TM050RDH03-41 5-Inch LCD Replacement FAQ

    How do I confirm that I need the Tianma TM050RDH03-41?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the Tianma TM050RDH03-41?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Tianma TM050RDH03-41?

    Use 800 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Tianma TM050RDH03-41 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    M050RDH03-41

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Touchscreen-Unterstützung:

    Anzeige Typ:
