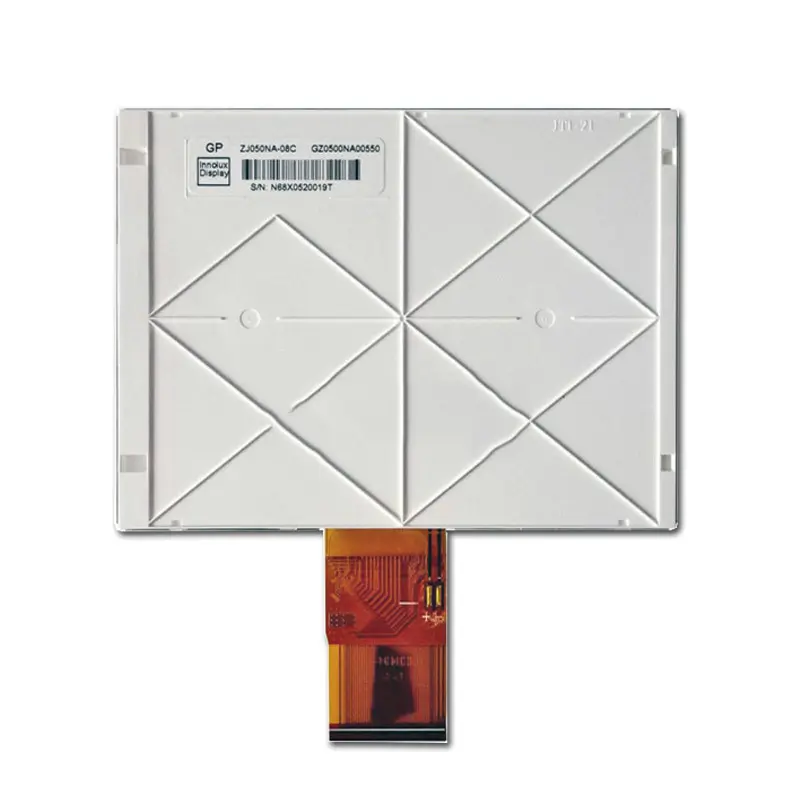

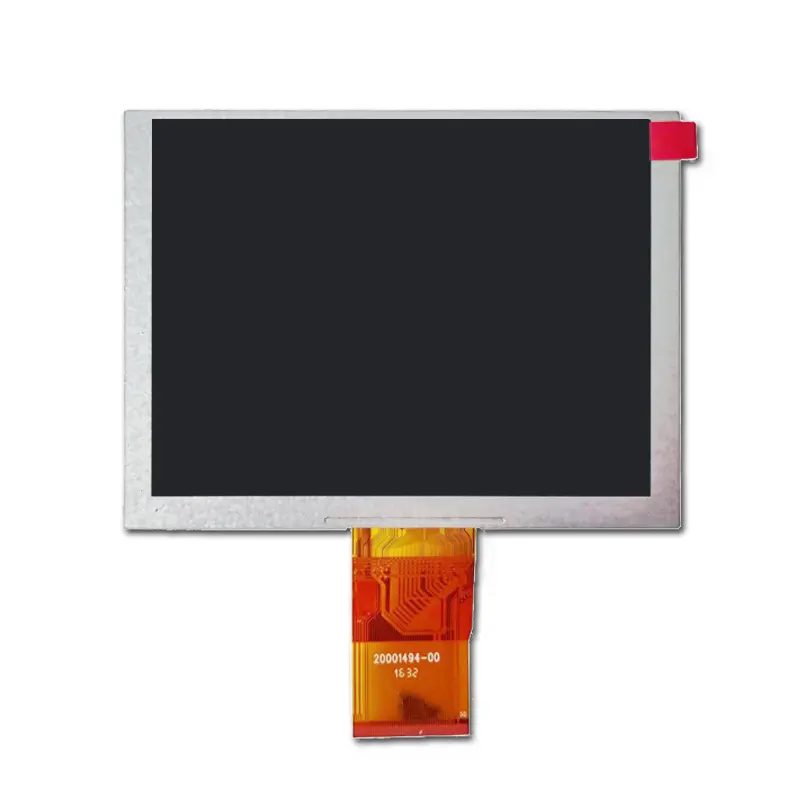

ZJ050NA-08C 5 inch Innolux LCD Display 640×480 Industrial screen

Artikelnummer: DS50277
Größe:

Modellnummer

J050NA-08C

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

250

Touchscreen-Unterstützung:

Anzeige Typ:

ZJ050NA-08C- 5 inch Innolux lcd screen, 640×480, -20~70℃, Industrial grade, medical grade, automotive display, products in stock, price is very nice!

Preisanfrage für Volumen







    Beschreibung

    ZJ050NA-08C General Desription

    The Innolux ZJ050NA-08C is a 5 inch a Si TFT LCD module with an antiglare surface. It features a VGA resolution of 640×480 (159PPI) with an RGB vertical stripe pixel format, a 250 cd/m² typical brightness, and a 500:1 contrast ratio. The display offers a 70°/70°/50°/70° viewing angle (left/right/up/down, CR≥10) in a TN, supporting 16.7 million colors (50% NTSC gamut) with a response time of 10/15ms (Tr/Td). Powered by a WLED backlight with a 15,000-hour lifespan and no integrated driver, it connects via an 8-bit single-channel parallel RGB interface with a 50-pin FPC cable, requiring input voltages of 3.3V (DVDD), 10.4V (AVDD), 17.0V (VGH), and -7.0V (VGL), this 67g panel is ideal for applications like digital photo frames, video door phones, and VOIP phones, with an operating temperature range of -20°C to 70°C and a storage range of -30°C to 80°C.



    Why choose us ( ZJ050NA-08C ) ?

    1)Innolux A-grade ZJ050NA-08C ,  original package. Quality guarantee
    2)Compared with the original manufacturer, we offer more flexible minimum order quantities. Whether you need just 1 unit for testing or require small-batch trial production, we can fulfill your order.
    3)Whether you're purchasing retail items or in small batches, we provide stockpiling prices. Of course, the larger the quantity you order, the more favorable the price will be.

    5" Product Specifications

    Diagonale Größe  5 inch
    Pixel Zahl 640×480
    Luminance 250
    Module Size 117.65×88.43×5.9
    Aktiver Bereich 101.76×76.32
    Viewing Direction TN
    View Angle(U/D/R/L) 70/70/50/70
    Schnittstelle RGB
    Kontrastverhältnis 500 : 1
    Betriebstemperatur -20 ~ 70 °C
    Lagertemperatur -30 ~ 80 °C
    LED-Lebensdauer 15000
    Touchscreen-Unterstützung Ohne
    Stromversorgung 3.3V
    Anzeige Typ Color TFT

    Innolux LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    Innolux ZJ050NA-08C 5-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux ZJ050NA-08C?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the Innolux ZJ050NA-08C?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Innolux ZJ050NA-08C?

    Use 640 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Innolux ZJ050NA-08C still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    J050NA-08C

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    250

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
