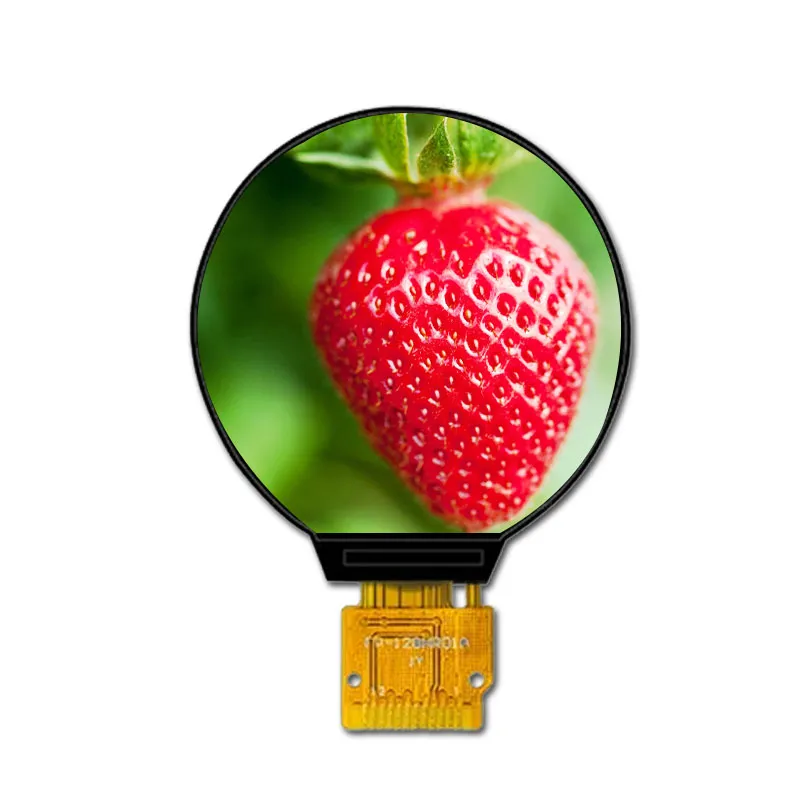

1,28 Pantalla TFT redonda 240*240 IPS para pomo inteligente

SKU: DS20283
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

350

Compatible con pantallas táctiles:

Tipo de pantalla:

1.28 Round TFT Display, circular display interactive interface makes home devices smarter, support FPC/Cover glass/touch custom, support small MOQ.

Solicitar precios por volumen







    Descripción

    1.28 Round TFT Display overview:

    The basic parameters for this 1.28 inch small round lcd screen: resolution 240*240, IPS viewing angle, operating temperature -20~70℃. Featured circular form factor, is optimized for intuitive knob-style interfaces, complemented by ultra-narrow 1.6mm bezels that achieve an 85% screen-to-body ratio—maximizing display area in compact devices. Its low-power design extends battery life in portable systems.



    Why choose us?

    Our mature supply chain and production lines ensure we have strong advantages in both cost control and product quality. With a robust system equipped with professional R&D personnel and comprehensive product documentation, we enable technical teams to quickly select the right products, streamline development and debugging, and troubleshoot issues efficiently. Backed by a one-year warranty and reliable after-sales maintenance, you can purchase with complete peace of mind.

    1.28" Round TFT Display Specifications

    Número de modelo  90-12804-001
    Talla 1.28
    Resolución 240*240
    Contorno Dimensión 35.6*38.1*1.55
    Área activa 32.4*32.4
    Brillo(cd/m²) 350
    Interfaz SPI
    Ver Dirección ALL
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 1200:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    1.28" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    1.28-Inch 240 × 240 Round LCD Display FAQ

    Will the bezel cover any of my dial labels or icons?

    Use the 1.28-inch diagonal to shortlist round displays, then check the exact drawing for fit. Make a mask from the active circle and bezel drawing. Try your dial, long labels and controls with the mask applied on a 240 × 240 canvas before committing to the enclosure.

    How do I check that the driver and artwork align with the visible circle?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Check orientation and any address-window offsets in the initialization code, then show a marked test grid to verify the center and edge alignment.

    Should I choose a round display or place a rectangular display behind a round bezel?

    Compare the visible arc, text clipping, module clearance and flex routing for both approaches. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. A mock-up with your longest labels will show how much of the nominal screen you can actually use.

    Can I add custom cover glass, change the flex cable, or add touch?

    Send the visible circle, cover outline and thickness, desired flex exit and touch interface. We can evaluate a cover-only design and a separate touch assembly around the panel.

    Custom Touch Screen Solutions

    What affects the cost and lead time of a custom round display sample?

    Include your cover drawing, host board, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    350

    Compatible con pantallas táctiles:

    Tipo de pantalla:
