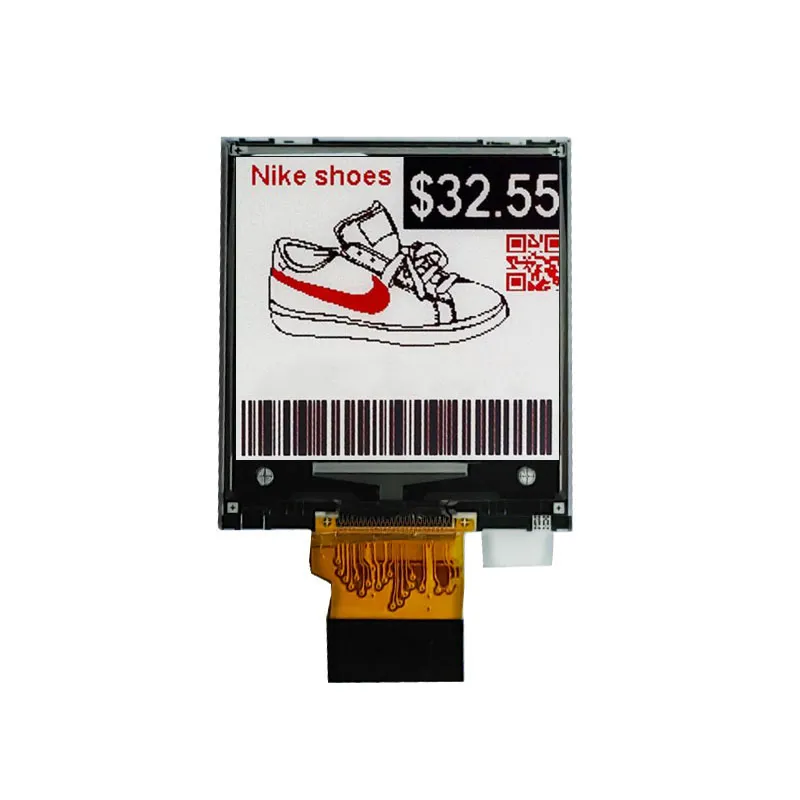

1.54 inch E-ink display Tri-Color Black/White/Red

SKU: DS40001
Tamaño:

Resolución:

Interfaz:

,

Temperatura de funcionamiento:

-0℃~40℃

Brillo (cd/m²):

200

Compatible con pantallas táctiles:

Tipo de pantalla:

1.54 inch E-ink display Tri-Color Black/White/Red  Resolution 152*152    3-wire SPI / 4-wire SPI Interface Drive IC SSD1680  Operation Temperature 0℃ ~ +40℃v

Solicitar precios por volumen







    Descripción

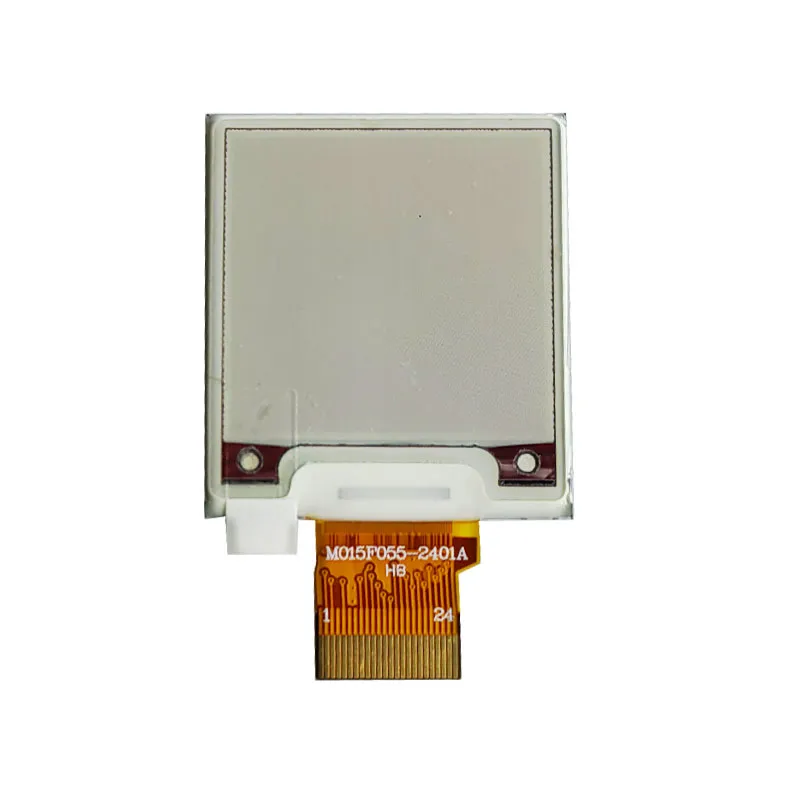

    1.54" E-ink Displays Features

    The 1.54 inch E-Ink Display utilizes advanced E-Ink technology, mimicking the look of traditional ink on paper for exceptional readability in bright sunlight while reducing eye strain. Its compact size is perfect for small devices, providing clear visuals without taking up much space. With a resolution of 152 x 152 pixels, it delivers sharp images and crisp text, making it suitable for a variety of applications. The display supports a tri-color palette of black, white, and red, enhancing visual appeal and effective information communication. It features both 3-wire and 4-wire SPI interfaces for flexible integration with various microcontrollers, and is equipped with the SSD1680 drive IC for reliable operation and efficient performance.



    1.54" E-ink Display Application

    The 1.54 inch E-Ink Display Module is highly versatile and ideal for a range of applications, including wearable devices like smartwatches and fitness trackers, where power efficiency and readability are essential. It is also suitable for IoT devices, particularly in smart home products that require clear, low-power displays. Additionally, this display can be utilized in digital signage, such as electronic shelf labels, where visibility and energy efficiency are critical. Furthermore, it serves as an excellent choice for DIY projects, appealing to hobbyists and makers who seek to create innovative designs using unique display technology.

    1.54" E-ink Display Product Specifications

    Panel Size(inch) 1.54(Diagonal)
    Número de píxeles 152*152
    Dimensiones exteriores (mm) 31.8*37.32*0.9
    Área activa (mm) 27.512*27.512
    Border 28.51*28.51
    Paso de píxeles 181*181
    PPI 139
    Display Colors Black/White/Red
    Modo de visualización Electrophoretic Bitmap Display
    Interfaz 3-wire SPI / 4-wire SPI
    Conductor IC SSD1680
    Bi-stable state -
    Operation Temperature 0℃ ~ +40℃
    Temperatura de almacenamiento -25℃~ +60℃
    Weight 2.4g ±0.2g

    1.54" E-ink Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    1.54-Inch 152 × 152 E-Paper Display FAQ

    Will the text and symbols on this e-paper display be readable in my installation?

    Use the 1.54-inch diagonal to shortlist e-paper panels, then check the exact drawing for fit. Compare the visible area and bezel against your enclosure. Try your smallest text, icons and any barcodes on a 152 × 152 canvas before committing to the enclosure. Test the result under the lowest available ambient light.

    What has to match between the e-paper panel, controller, and waveform?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Ask for the waveform and initialization for the exact panel revision. Confirm its supported update modes before deciding whether to use partial refresh.

    Is this e-paper display suitable for content that changes throughout the day?

    For the listed e-paper, compare readability in available light and how long the actual content takes to refresh. Measure the change-to-visible time and check for ghosting with the actual sequence of graphics. If updates must be frequent or animation is essential, compare the result with a continuously refreshed display under your power and lighting constraints.

    Can the connector, mounting, or front window be adapted to my device?

    Share the mechanical opening, cover material, board connector and host voltage. We can review the mounting or cable scope and check whether the planned changes affect the exact panel revision or waveform.

    What do I send for an e-paper sample quote and delivery estimate?

    Include the host, update pattern, panel revision if known, quantities and proposed acceptance checks. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    ,

    Temperatura de funcionamiento:

    -0℃~40℃

    Brillo (cd/m²):

    200

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
