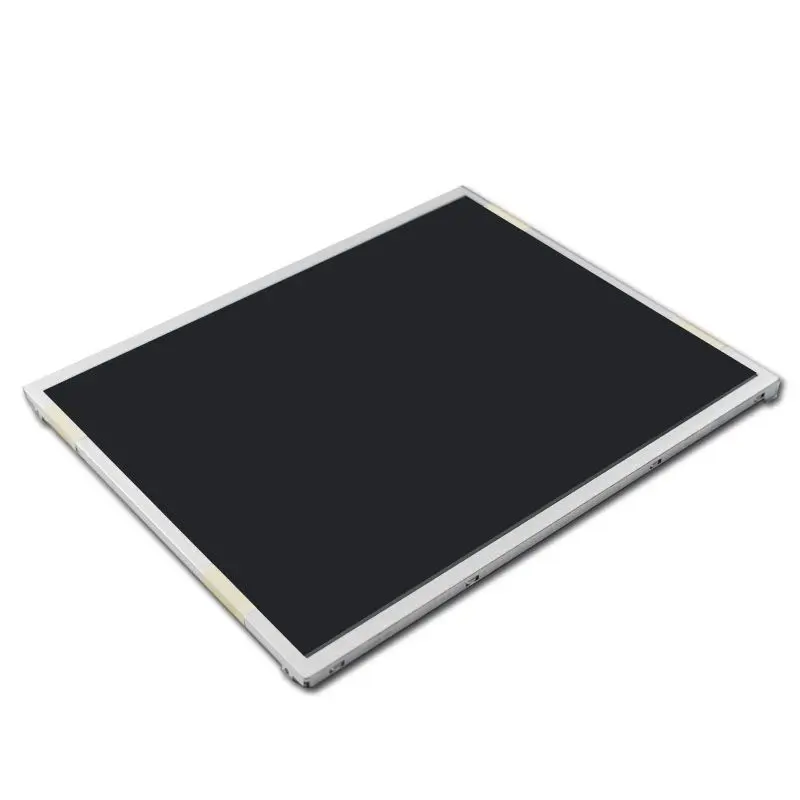

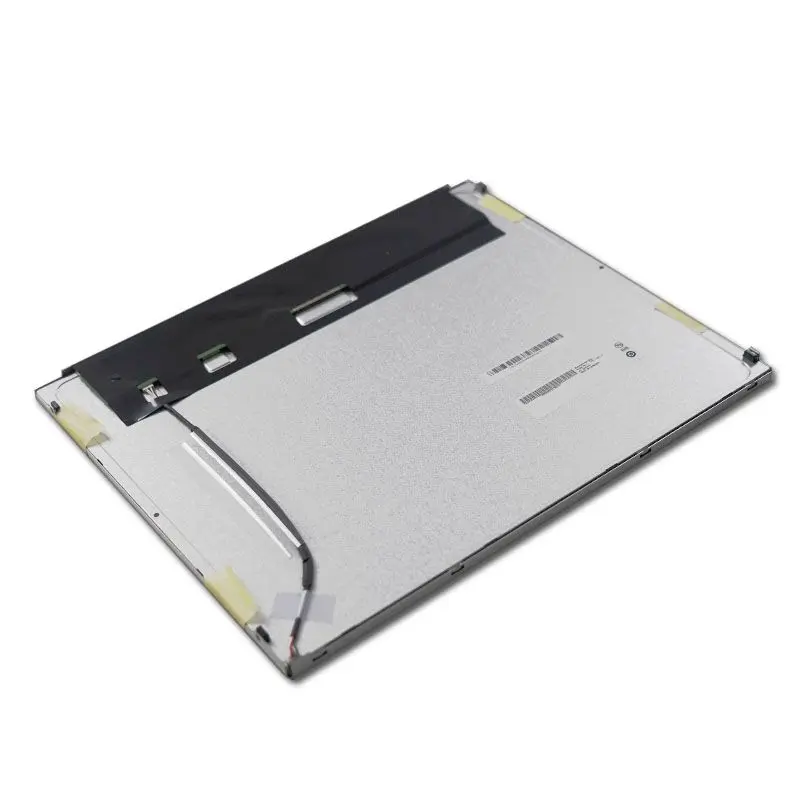

17 inch AUO G170ETN02.0 TN LCD Panel 1280*1024 Brightness 400cd/m²

SKU: DS50044
Tamaño:

Número de modelo

G170ETN02.0

Resolución:

Interfaz:

Brillo (cd/m²):

400

Temperatura de funcionamiento:

-30℃~ 85℃

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

17 inch AUO G170ETN02.0 TN LCD Panel  offering Resolution 1280*1024  Brightness 400cd/m²  Operating Temperature from -30~85℃ Interface LVDS 30 pin  Stable supply  Original A grade quality

Solicitar precios por volumen







    Descripción

    AUO G170ETN02.0 Key Features

    The 17 inch AUO G170ETN02.0 TN LCD Panel is engineered for high-performance applications, featuring a resolution of 1280 x 1024 pixels that delivers sharp and clear visuals. With a brightness level of 400 cd/m², this panel ensures excellent visibility in various lighting conditions, making it suitable for both indoor and outdoor environments. It operates efficiently across an extensive temperature range of -30 to 85°C, providing reliable performance even in extreme conditions. The display utilizes a 30-pin LVDS interface, allowing for seamless integration into a variety of systems and enhancing its versatility across multiple applications. As an original A-grade quality product with a stable supply, the G170ETN02.0 is ideal for industrial automation, medical devices, and other demanding applications, ensuring durability and long-lasting performance.



    AUO G170ETN02.0 Application

    The 17 inch AUO G170ETN02.0 TN LCD Panel is highly versatile and suitable for a wide range of applications across various industries. Its resolution of 1280 x 1024 pixels and brightness of 400 cd/m² make it ideal for industrial automation, where clear and reliable visuals are essential for monitoring and control systems. The panel's wide operating temperature range of -30 to 85°C ensures dependable performance in harsh environments, making it suitable for outdoor displays and transportation applications. Additionally, its 30-pin LVDS interface facilitates easy integration into medical equipment, kiosks, and consumer electronics, providing consistent performance in applications that require high-quality display solutions. This makes the G170ETN02.0 an excellent choice for sectors such as manufacturing, logistics, and healthcare.

    17.0" TFT-LCD Product Specifications

    Número de modelo G170ETN02.0
    Talla 17.0
    Resolución 1280*1024
    Contorno Dimensión 358.5*296.5*12.95
    Área activa 337.92*270.336
    Brillo(cd/m²) 400
    Interfaz LVDS
    Ver Dirección TN
    Temperatura de funcionamiento -30~85
    Temperatura de almacenamiento -30~85
    Vida útil del LED 50000
    Soporte de pantalla táctil Sin
    Relación de contraste 800:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    17.0" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    AUO G170ETN02.0 17-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G170ETN02.0?

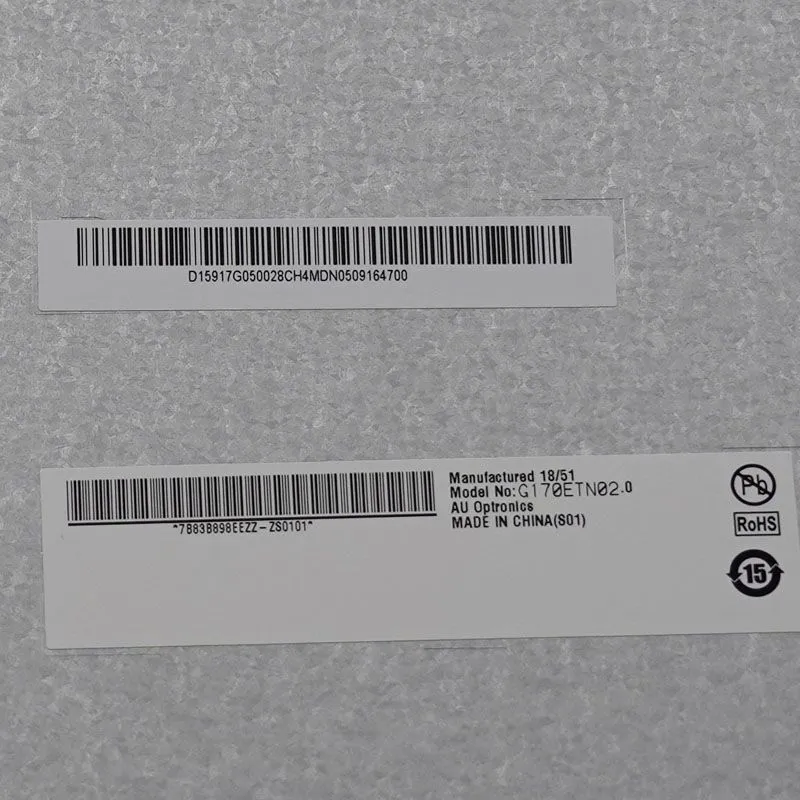

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 17-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G170ETN02.0?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G170ETN02.0 compare with the BOE DV170E0M-N10?

    Both catalog listings show 17 inches, 1280 × 1024 and LVDS. The catalog lists −30 °C to +85 °C for the AUO panel and 0 °C to +50 °C for the BOE panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare BOE DV170E0M-N10

    Is the AUO G170ETN02.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    G170ETN02.0

    Resolución:

    Interfaz:

    Brillo (cd/m²):

    400

    Temperatura de funcionamiento:

    -30℃~ 85℃

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
