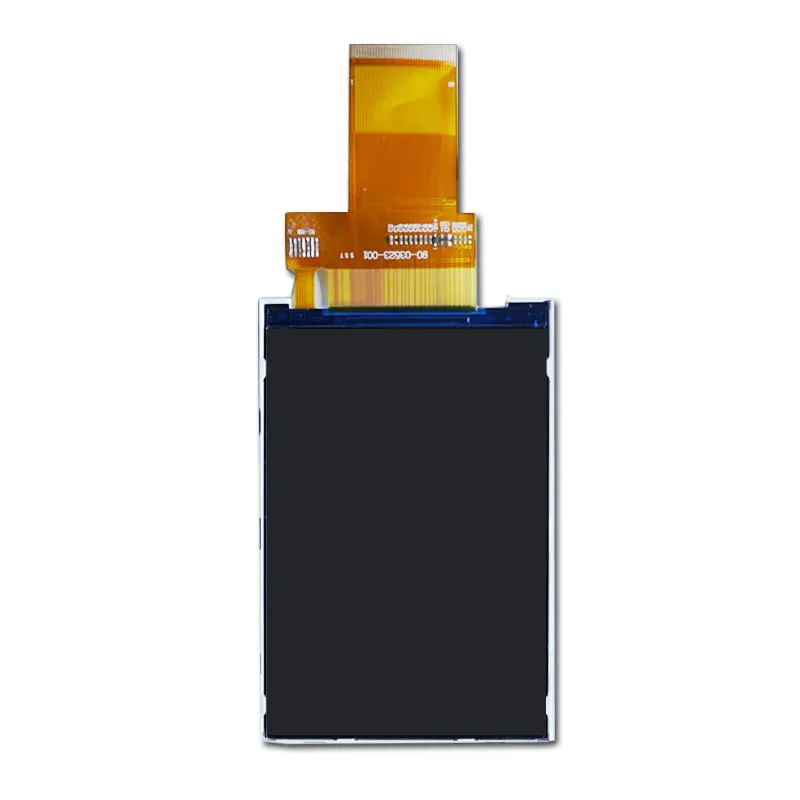

3.5 inch Liquid Crystal Display 320*480 MCU

SKU: DS20029
Tamaño:

Resolución:

Interfaz:

,

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

350

Compatible con pantallas táctiles:

Tipo de pantalla:

3.5 inch Liquid Crystal Display  320*480 Pixels  Serial MCU Interface  ST7701 Driver IC  Customized touch screen

Solicitar precios por volumen







    Descripción

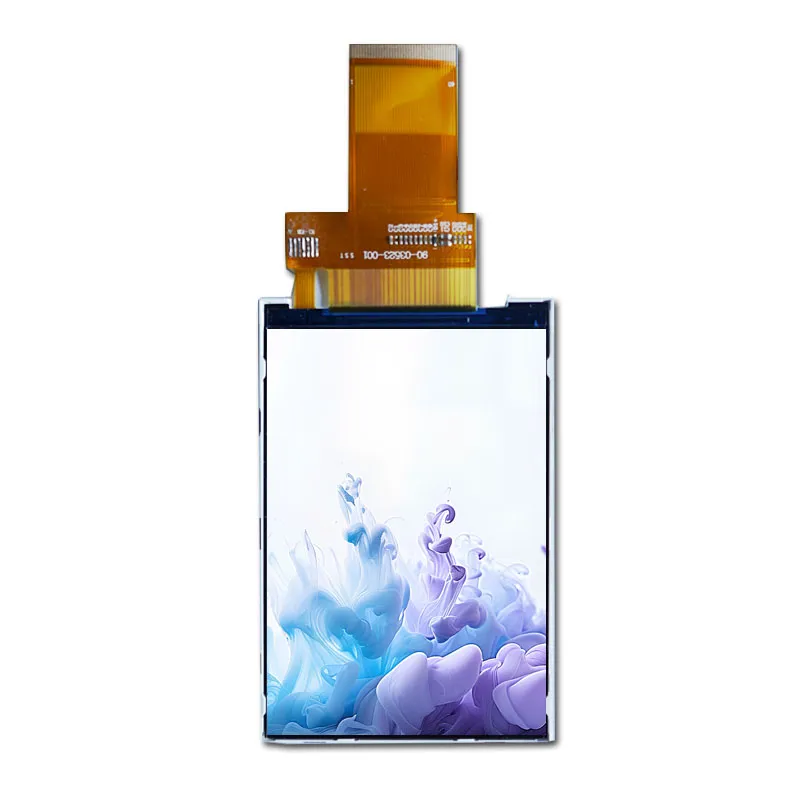

    3.5" TFT Module with IPS Technology

    The 3.5 inch liquid crystal display offers an 80° viewing angle in all directions, enhancing color consistency and minimizing distortion, thanks to its advanced IPS technology. This technology ensures superior color reproduction and brightness, making it ideal for applications where image quality is critical. Whether for handheld devices, industrial uses, or multimedia displays, this display guarantees an exceptional viewing experience with outstanding clarity and detail from any angle



    3.5” TFT LCD Various Application

    The 3.5-inch IPS TFT LCD display is highly versatile, suitable for various applications including industrial equipment, smart home control panels, and medical devices. In industrial settings, it excels in control panels and monitoring systems due to its durability and visibility in diverse lighting conditions. For home automation, it provides an engaging interface for users to manage their systems effectively. In medical applications, its clarity and color accuracy are essential for precise data representation and patient monitoring, making it a reliable choice across these critical fields.

    3.5" TFT-LCD Product Specifications

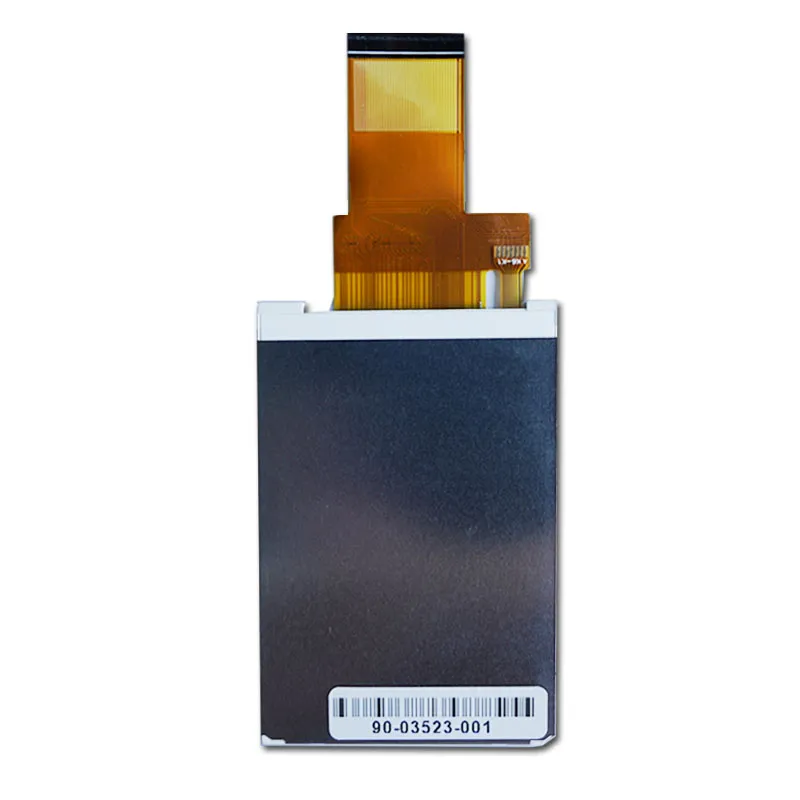

    Número de modelo  90-03523-001
    Talla  3.5
    Resolución 320*480
    Contorno Dimensión 54.5*83*2.15
    Área activa 48.96*73.44
    Brillo(cd/m²) 350
    Interfaz MCU/RGB
    Ver Dirección ALL
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 1000:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    3.5" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    3.5-Inch 320 × 480 LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 320 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    The catalog mentions MCU and RGB. Send us your host model and ask us to confirm the role and wiring of each connection on the configuration you plan to order. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluciones de exposición personalizadas

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    ,

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    350

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
