3 inch Industrial 240*400 LCD Display Module

SKU: DS20016
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

400

Compatible con pantallas táctiles:

Tipo de pantalla:

3.0 inch LCD Display Module  240*400pixels  MCU Interface  37 pin FFC ZIF Connection  Customized touch screen

Solicitar precios por volumen







    Descripción

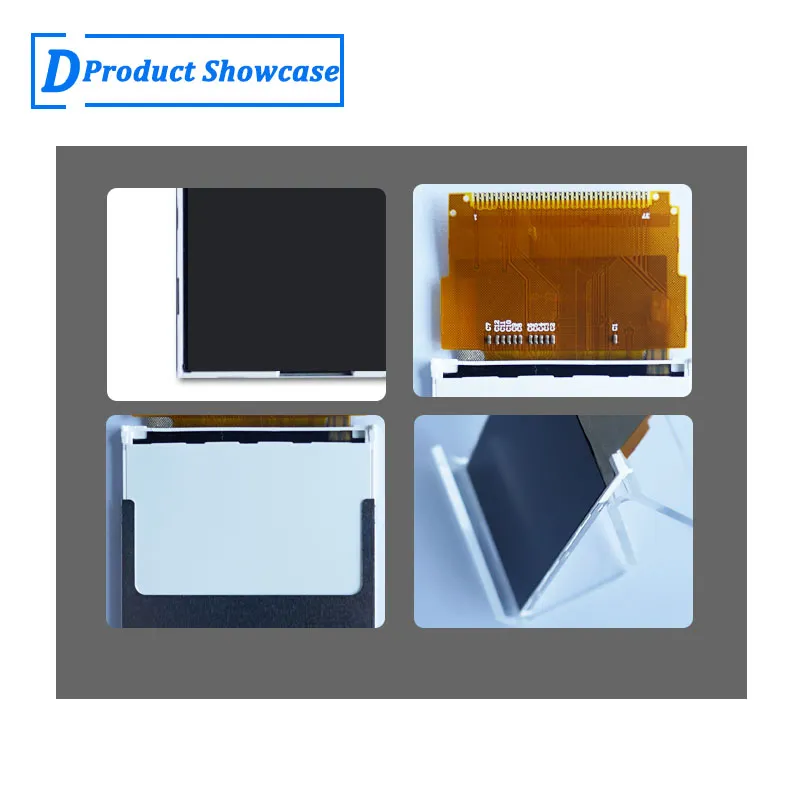

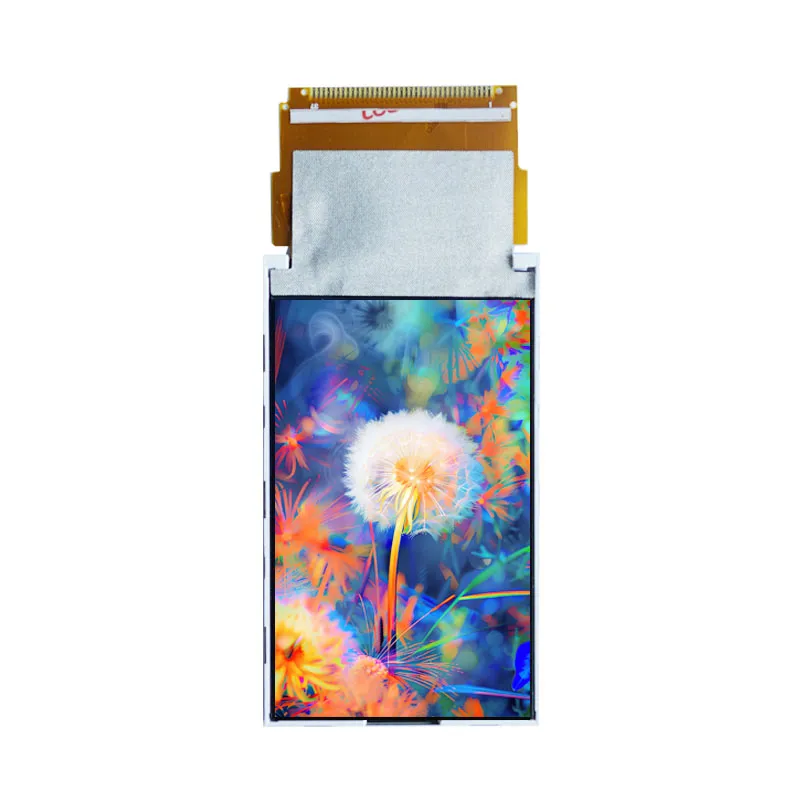

    3" Industrial LCD Display Module

    This 3 inch LCD Display Module with a brightness level of 400 cd/m², it guarantees good visibility in diverse lighting conditions, making it suitable for both indoor and outdoor applications. The LED backlight is rated for 20,000 hours, ensuring long-lasting performance and reliability for continuous use across various applications. Furthermore, the module operates efficiently within a temperature range of -20°C to 70°C, providing flexibility for different environments.



    3 inch MCU LCD Display Module with 37-pin FFC ZIF Connection

    The MCU interface can accommodate various communication protocols, such as SPI (Serial Peripheral Interface) or I2C (Inter-Integrated Circuit). This versatility allows developers to choose the protocol that best suits their project requirements, enhancing compatibility with different microcontroller platforms. Additional, the MCU interface is built to withstand various operating conditions, ensuring reliable performance in diverse environments. It is vital for applications in industrial settings, medical devices, and outdoor equipment.

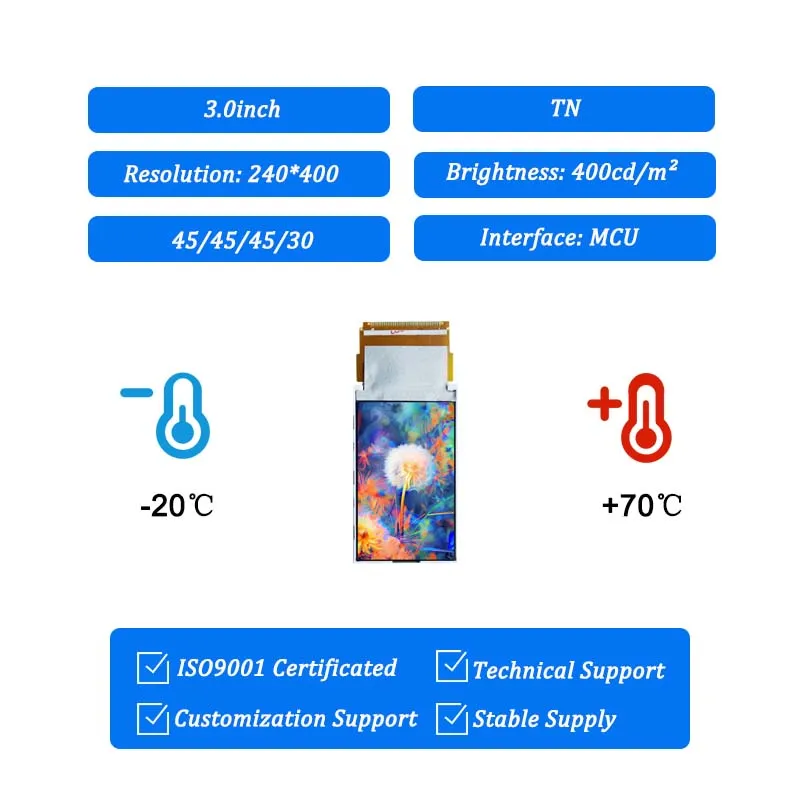

    3" TFT-LCD Product Specifications

    Número de modelo  90-03002-001
    Talla  3.0
    Resolución 240*400

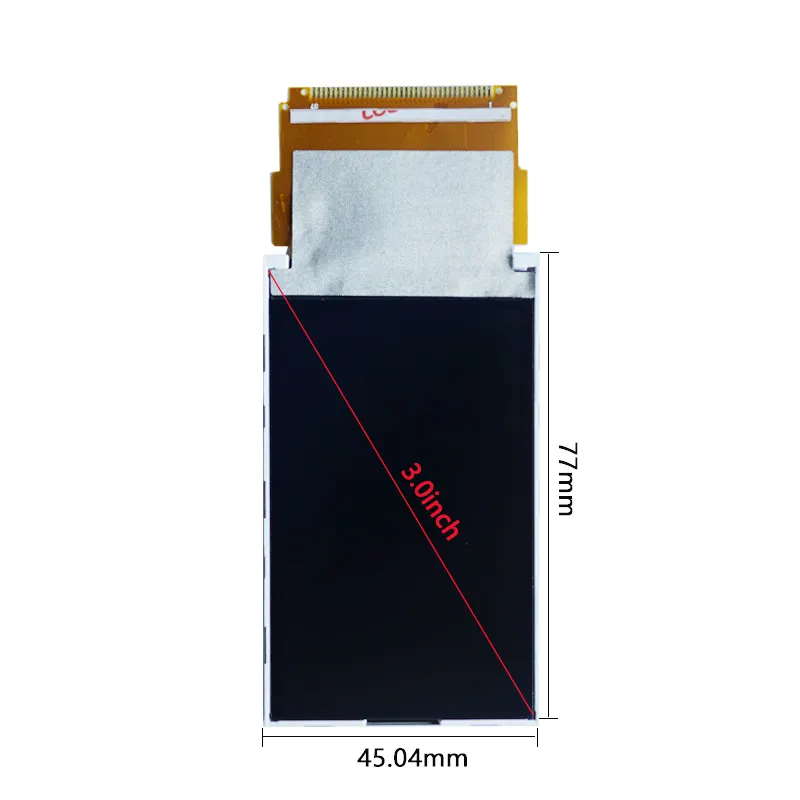

    Contorno Dimensión 45.05*77*2.4
    Área activa 38.88*64.8
    Brillo(cd/m²) 400
    Interfaz MCU
    Ver Dirección 12 O"clock
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 500:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    3" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    3-Inch 240 × 400 LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 240 × 400 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MCU interface, match the exact bus mode, pin assignments, logic levels and display controller commands. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 400 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluciones de exposición personalizadas

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    400

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
