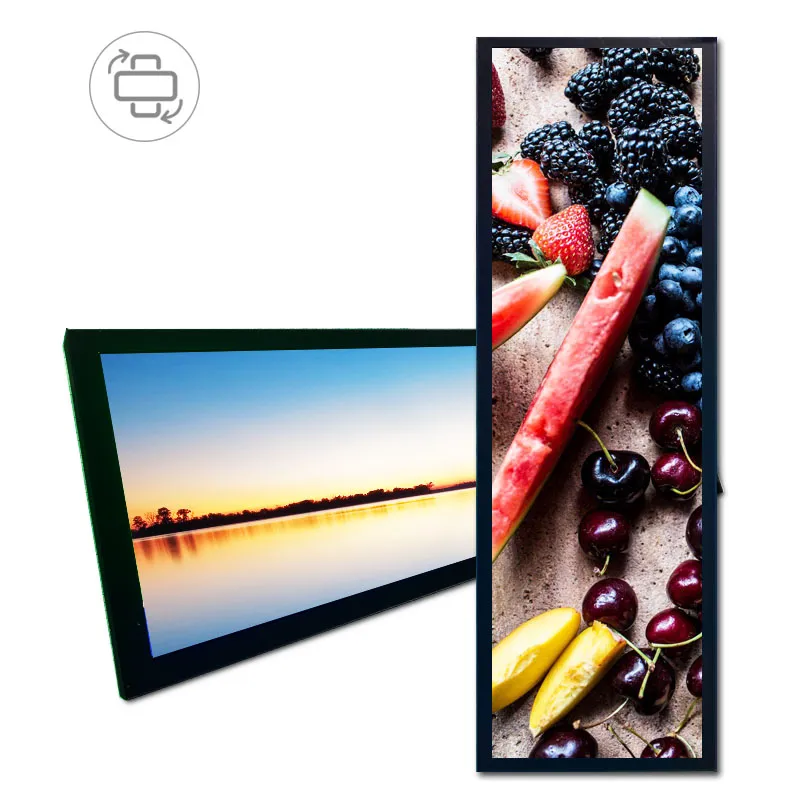

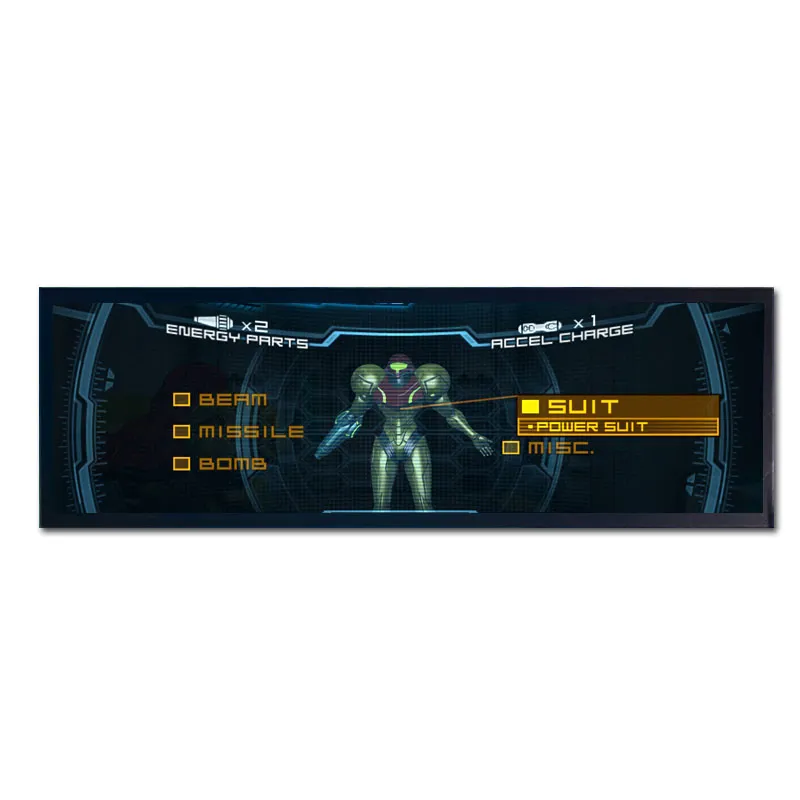

38.5 inch Bar LCD Screen 1920*560 IPS Wide Viewing Display

SKU: DSB026
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-0℃~50℃

Brillo (cd/m²):

700

Compatible con pantallas táctiles:

Tipo de pantalla:

28 inch Stretched TFT LCD Resolution 1920*360 IPS technology Anti-glare treatment and 3H surface hardness for durability LVDS Interface 50K hours Long life

Solicitar precios por volumen







    Descripción

    38.5" Bar LCD Display Features

    The 38.5" Bar LCD Screen offers a super wide viewing angle, providing consistent image clarity and vibrant colors from any perspective, making it ideal for larger audiences. With a super high contrast ratio, it achieves deeper blacks and brighter whites, resulting in a visually striking display that enhances content presentation. Its super fast response time ensures fluid motion and reduced blur during fast-paced scenes, making it perfect for action-packed videos and gaming. The screen features a DE (Data Enable) Only Mode for simplified integration with display controllers, and an LVDS interface that supports high-speed data transmission, minimizing signal loss for clear image quality. Additionally, it is RoHS compliant, meeting environmental regulations and ensuring safety and sustainability in electronic devices.

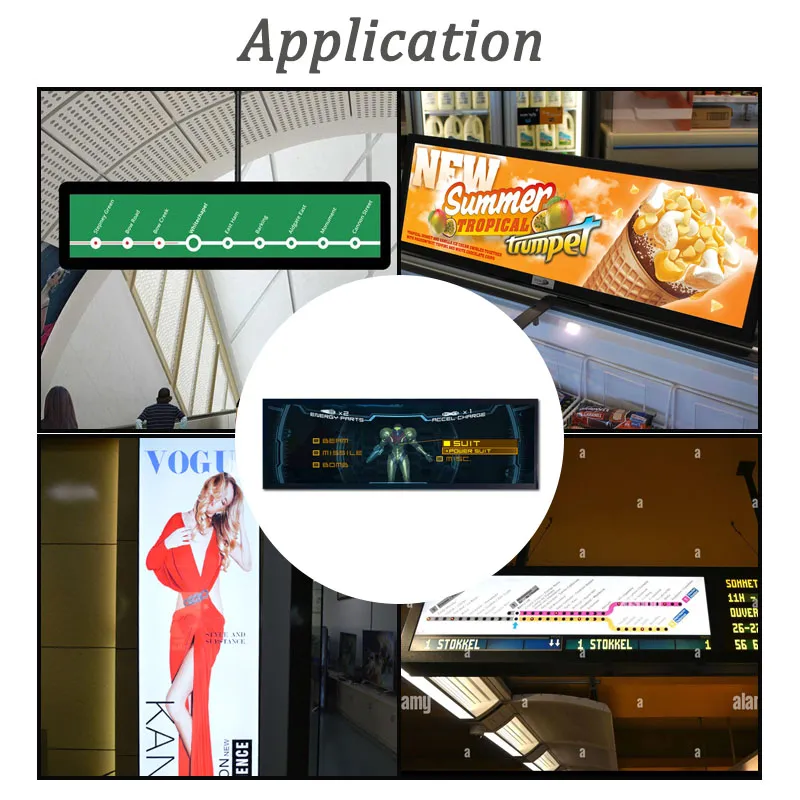

    38.5" Bar LCD Display Application

    The 38.5" Bar LCD Screen is versatile and suitable for a wide range of applications, including TFT-LCD TVs, where it delivers a premium viewing experience, and multi-media displays for digital signage, presentations, and other multimedia needs that require high-quality visuals. Combining cutting-edge technology with robust design, this module is an excellent choice for enhancing display solutions in both consumer electronics and commercial settings. Engineered to meet the demands of today’s high-definition content, the display ensures a captivating viewing experience for all users.

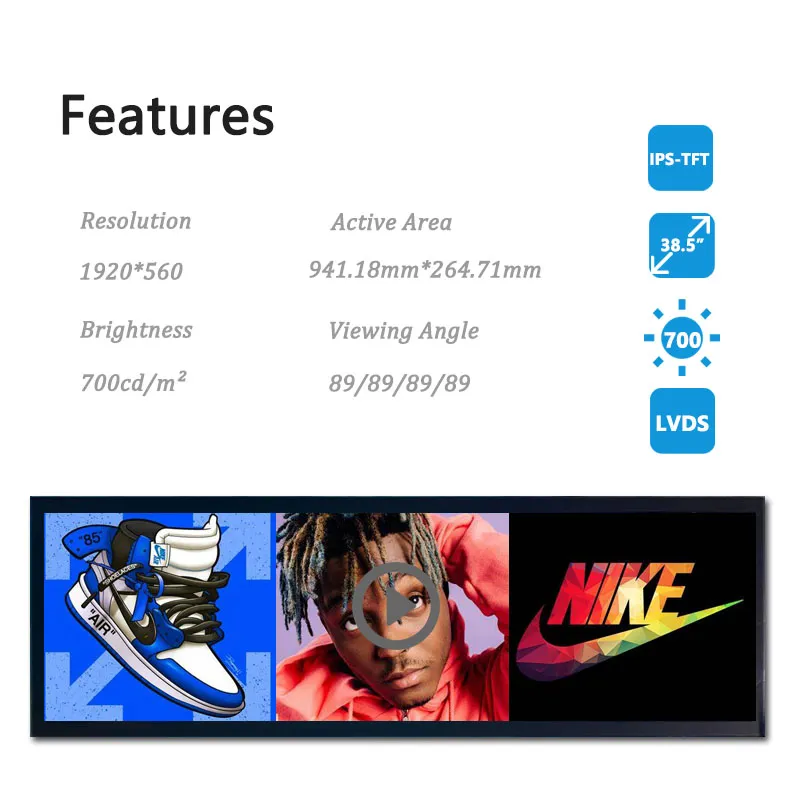

    38.5" Bar LCD Display Product Specifications

    Tamaño diagonal 38.5"(Diagonal)
    Número de píxeles 1920*540 Pixels
    Luminancia 700

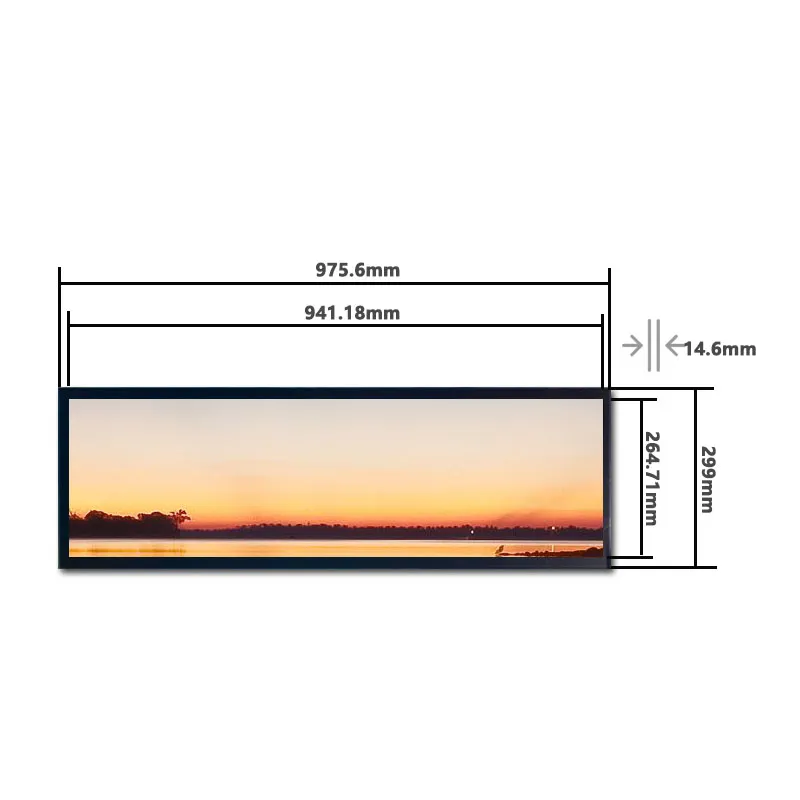

    Tamaño del módulo 975.6*299*14.6
    Área activa 941.18*264.71
    Dirección de visualización ALL
    Ángulo de visión (U/D/R/L) 89/89/89/89
    Treatment Anti-glare
    Surface Hardness 3H
    Life Span 50k
    Interfaz LVDS
    Temperatura de funcionamiento 0~+50℃
    Temperatura de almacenamiento -20~+60℃
    - -
    - -

    38.5" Bar LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the exact drawing to decide whether the bar displays fits. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Ask for the native pixel layout, then mock up your labels and graphics at that layout.

    Can I run a horizontal layout with this bar LCD and my controller?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 700 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -0℃~50℃

    Brillo (cd/m²):

    700

    Compatible con pantallas táctiles:

    Tipo de pantalla:
