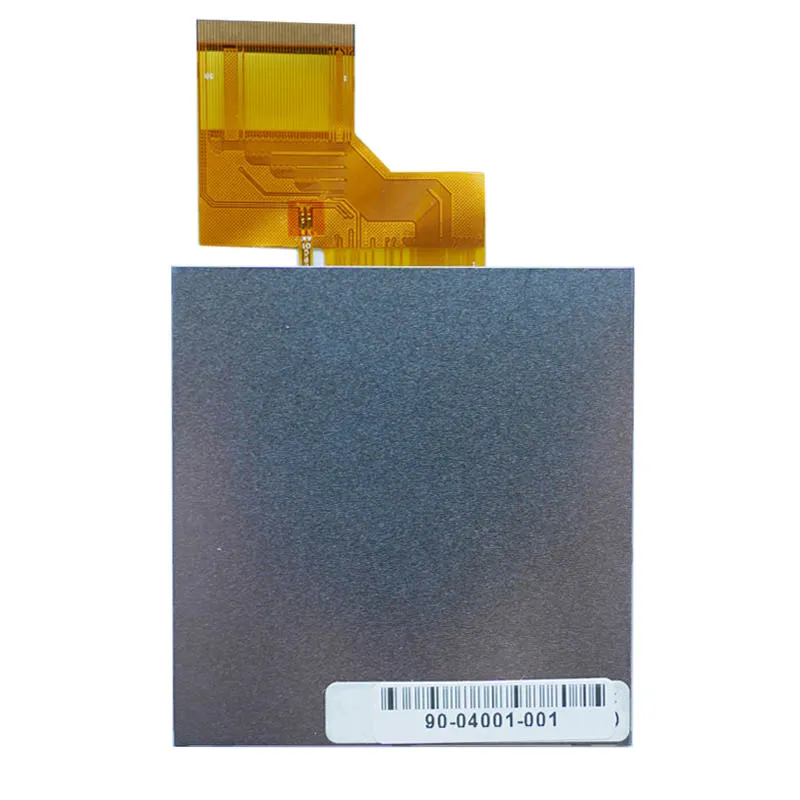

4 inch Square 480*480 ST7701 Wide Temperature TFT LCD

SKU: DS20031
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

300

Compatible con pantallas táctiles:

Tipo de pantalla:

4.0 wide temperature lcd display  480*480 Pixels  Serial RGB Interface 50pin FFC Connection  Customized touch screen

Solicitar precios por volumen







    Descripción

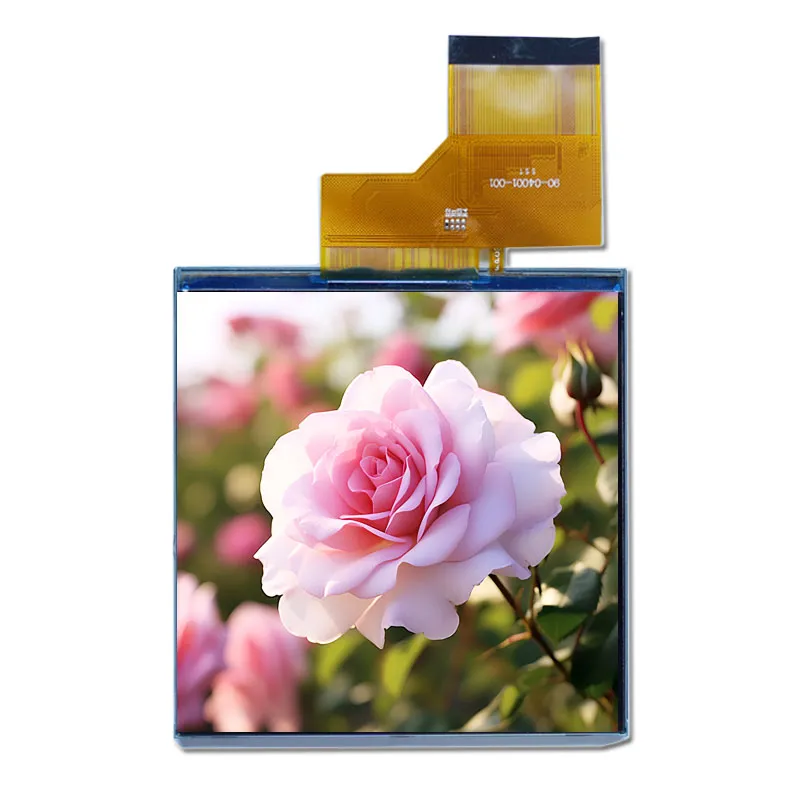

    4.0” Wide Temperature TFT LCD

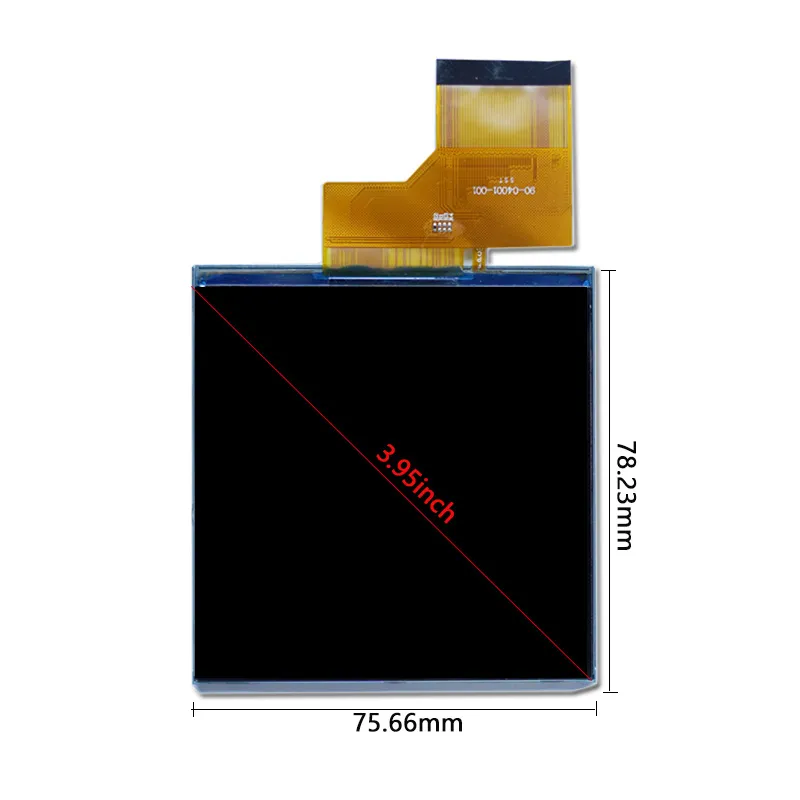

    The 4 inch Wide Temperature LCD Display features a resolution of 480 x 480 pixels, providing sharp and detailed visuals within an active area of 71.86 mm x 70.18 mm. Its compact dimensions of 75.66 mm x 78.23 mm x 2.2 mm ensure a sleek design, while an 80° viewing angle enhances color consistency and reduces distortion. With a brightness of 300 cd/m² and a contrast ratio of 800:1, it delivers vibrant images in various lighting conditions. The display has a long LED lifetime of 20,000 hours and boasts an exceptional operating temperature range of -30°C to 85°C, making it highly versatile for outdoor, industrial, and other extreme environments, ensuring reliable performance and durability.



    -30~80 °C Operating Temperature

    The 4-inch IPS TFT LCD display operates effectively within a wide temperature range of -30°C to 85°C, making it suitable for diverse environments, from frigid outdoor settings to high-temperature industrial applications. Its reliability in extreme conditions ensures consistent functionality, which is essential for harsh climates, such as cold weather equipment and hot machinery control panels. This display is ideal for outdoor use, maintaining performance despite temperature fluctuations, and is perfectly suited for industrial environments where machinery generates heat or where equipment is utilized in unheated spaces during winter months.

    4.0" TFT-LCD Product Specifications

    Número de modelo  90-04001-001
    Talla 4.0
    Resolución 480*480
    Contorno Dimensión 71.86*78.23*2.2
    Área activa 71.86*70.18
    Brillo(cd/m²) 300
    Interfaz RGB
    Ver Dirección ALL
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 800:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    4.0" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    4-Inch 480 × 480 RGB TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 4-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 480 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 300 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluciones de exposición personalizadas

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    300

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
