5 inch Industrial 480*854 RGB IPS LCD Sreen

SKU: DS20042
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

400

Compatible con pantallas táctiles:

Tipo de pantalla:

5 tft lcd module  480*854 Pixels  Serial RGB Interface  40pin FFC Connection  Customized touch screen

Solicitar precios por volumen







    Descripción

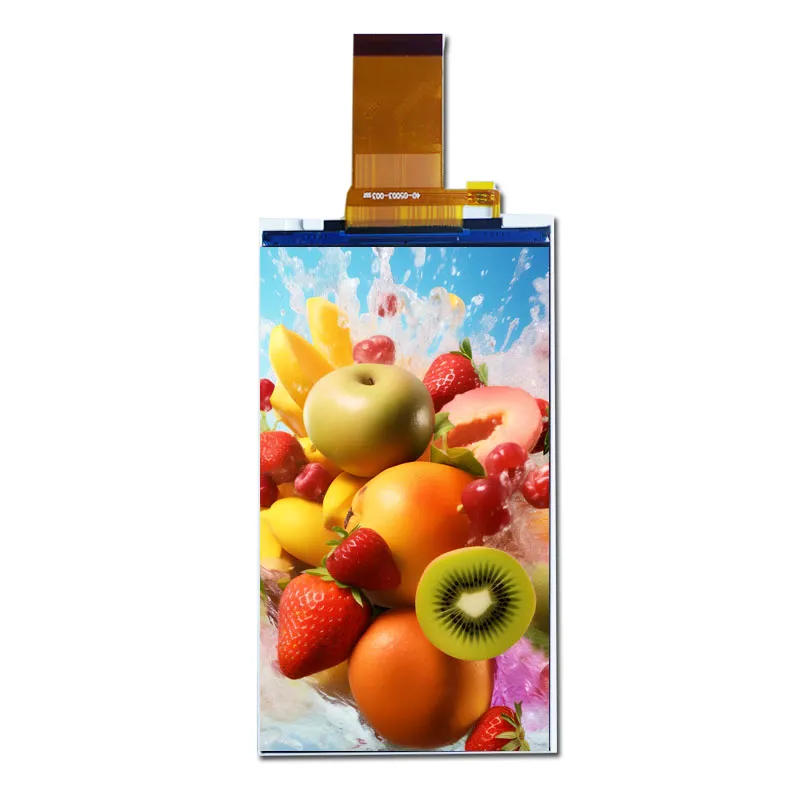

    5" TFT LCD Screen Overview

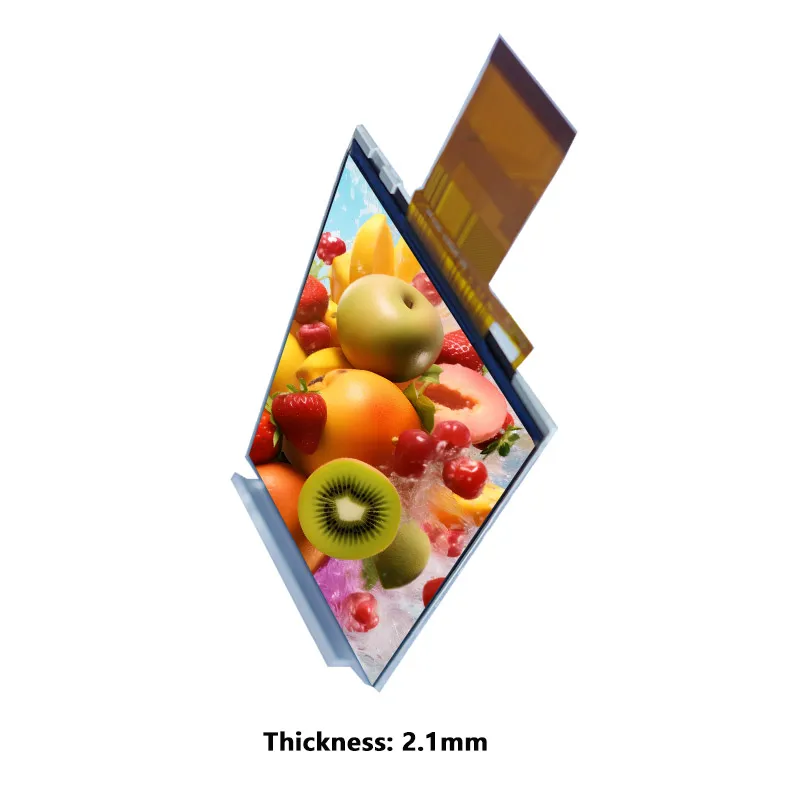

    The 5 inch IPS LCD Sreen features a resolution of 480 x 854 pixels, providing clear and vibrant images for an enhanced viewing experience. With an active area of 61.56 mm x 109.53 mm and outline dimensions of 66.4 mm x 120.05 mm x 2.1 mm, it boasts a slim profile for easy integration into various devices. The display offers an 80° viewing angle in all directions, ensuring consistent visibility and color accuracy, along with a brightness of 400 cd/m² and a contrast ratio of 1500:1 for exceptional image quality. Designed for durability, it has an LED lifetime of 20,000 hours, operates within a temperature range of -20°C to 70°C, and can be stored between -30°C to 80°C, making it suitable for diverse environments.



    5" TFT LCD Display with High Contrast Ratio

    The 1500:1 contrast ratio of the 5-inch TFT LCD display (model 90-05003-002) significantly enhances image clarity by ensuring that the brightest white is 1500 times brighter than the darkest black, allowing for sharper distinctions between light and dark areas. This high contrast ratio also improves color representation, enabling the display to reproduce a wider range of vibrant hues, which is crucial for multimedia applications. Furthermore, it enhances detail visibility in both shadows and highlights, making it especially beneficial for graphic design, photography, and video playback, where subtle details are vital for quality.

    5.0" TFT-LCD Product Specifications

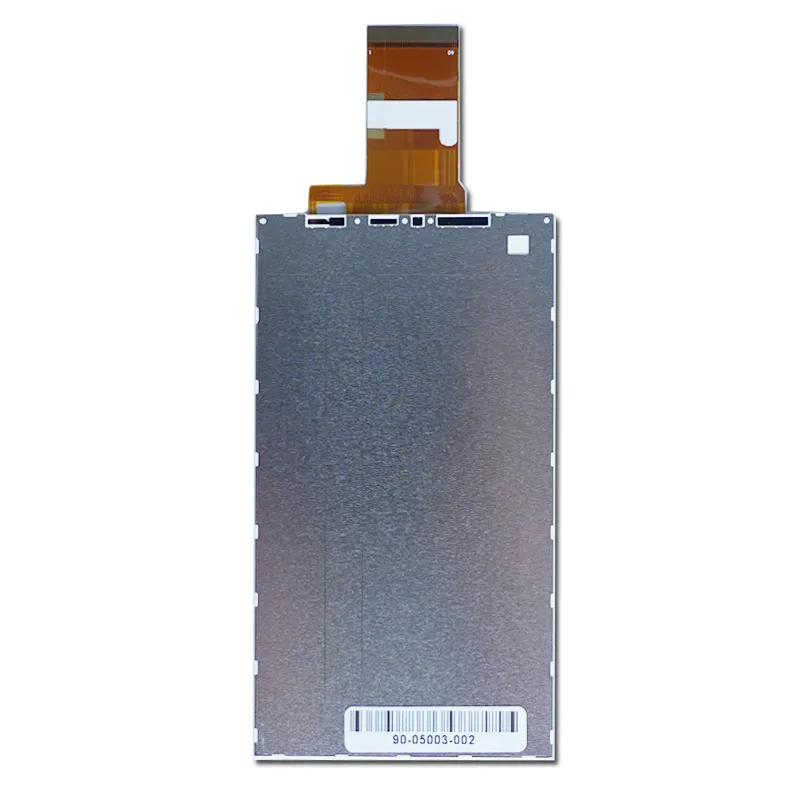

    Número de modelo  90-05003-002
    Talla 5.0
    Resolución 480*854

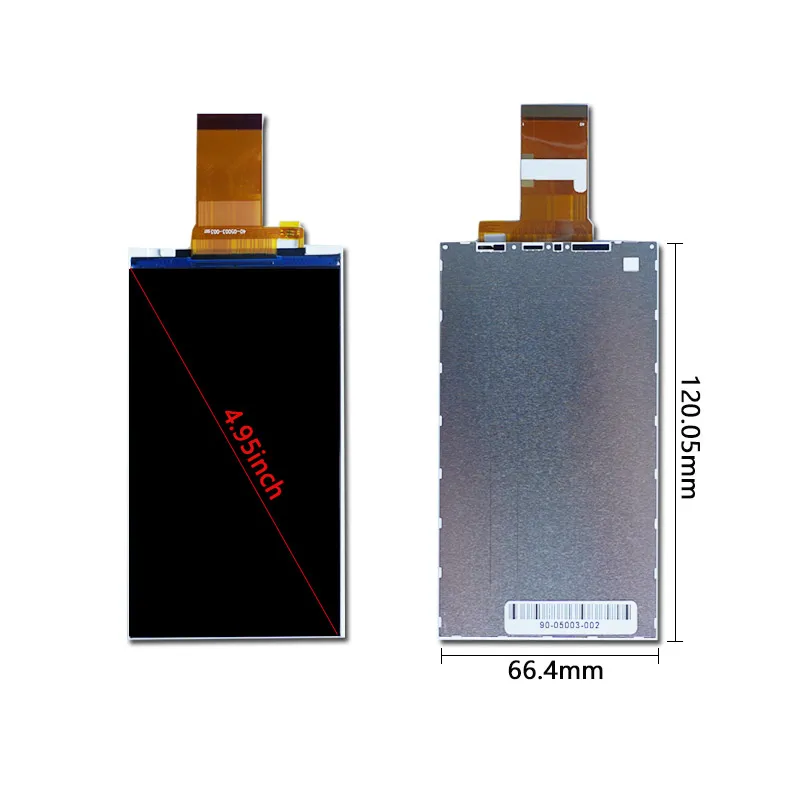

    Contorno Dimensión 66.4*120.05*2.1
    Área activa 61.56*109.53
    Brillo(cd/m²) 400
    Interfaz RGB
    Ver Dirección ALL
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 1500:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    5.0" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    5-Inch 480 × 854 RGB LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 480 × 854 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 400 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
