5 inch IPS 480*854 MIPI Outdoor LCD Display

SKU: DS20052
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

450

Compatible con pantallas táctiles:

Tipo de pantalla:

5 inch Liquid crystal display module  480*854 Pixels  Serial MIPI Interface  40 pin FFC connection  Customized touch screen

Solicitar precios por volumen







    Descripción

    5" Colour TFT Displays Features

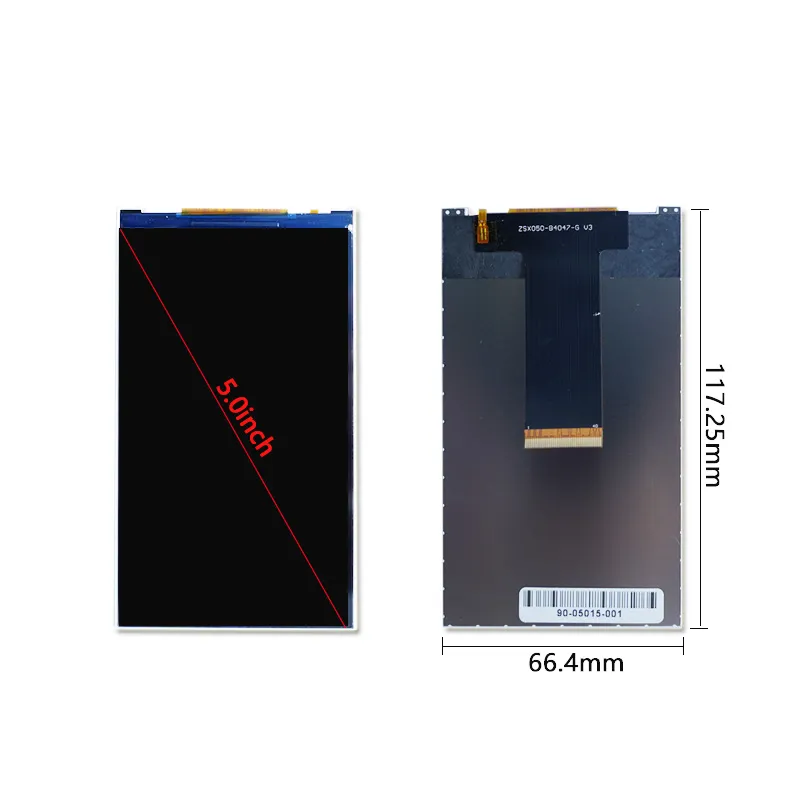

    The 5 inch Liquid crystal display module features a resolution of 480x854 pixels, making it ideal for applications that require clear and detailed imagery. It has an active area of 61.56mm x 109.53mm and compact overall dimensions of 66.4mm x 120.05mm x 2.05mm, allowing for seamless integration into various device designs. The display provides an 80° viewing angle in all directions, ensuring consistent image quality and color accuracy. With a brightness level of 450 cd/m², it maintains excellent visibility in various lighting conditions.



    5" LCD Panel with MIPI interface

    The 5-inch TFT-LCD features a 40-pin MIPI for connectivity, enabling high-speed communication between the display and host device. MIPI is a widely adopted standard in embedded industries, facilitating efficient processor-to-display communication with high-speed data transfer rates essential for smooth video playback and responsive user interfaces. The 40-pin configuration includes a mix of power, ground, and signal pins, providing comprehensive connectivity while maintaining compactness. Additionally, MIPI employs differential signaling for data transfer, minimizing electromagnetic interference and enhancing signal integrity over longer distances.

    5.0" TFT-LCD Product Specifications

    Número de modelo  90-05015-001
    Talla 5.0
    Resolución 480*854
    Contorno Dimensión 66.4*120.05*2.05
    Área activa 61.56*109.53
    Brillo(cd/m²) 450
    Interfaz MIPI
    Ver Dirección ALL
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 800:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    5.0" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    5-Inch 480 × 854 MIPI LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 480 × 854 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 450 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluciones de exposición personalizadas

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    450

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
