6.39 inch Amoled Display with High Contrast Ratio

SKU: DS10013
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

430

Compatible con pantallas táctiles:

Tipo de pantalla:

6.39 inch Amoled Display  Offering Resolution 1080*2160  With 100000:1 High Contrast Ratio  MIPI 4 LANE Interface  Smart Home Appliance

Solicitar precios por volumen







    Descripción

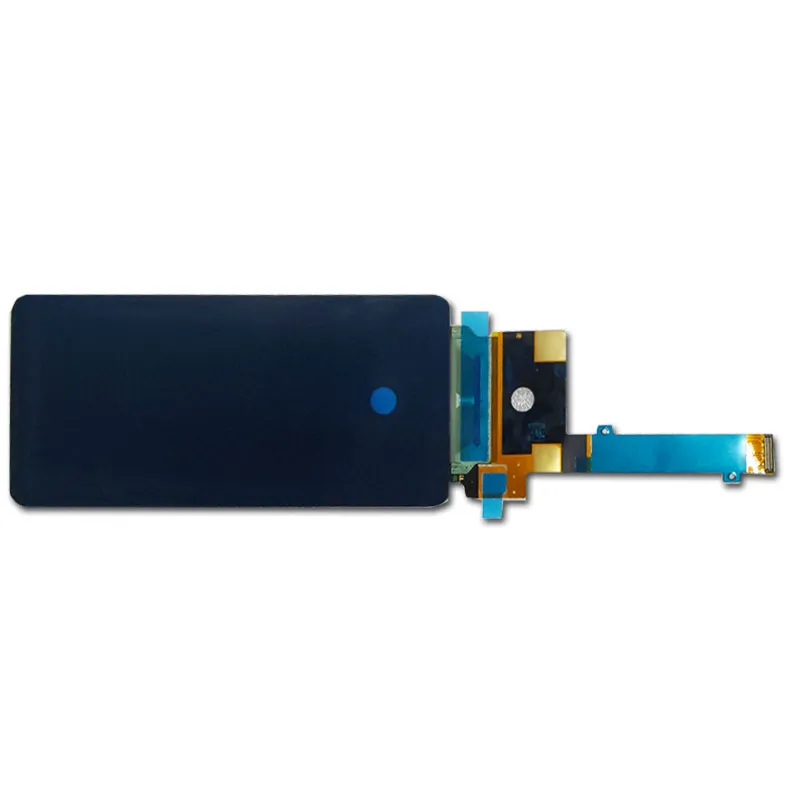

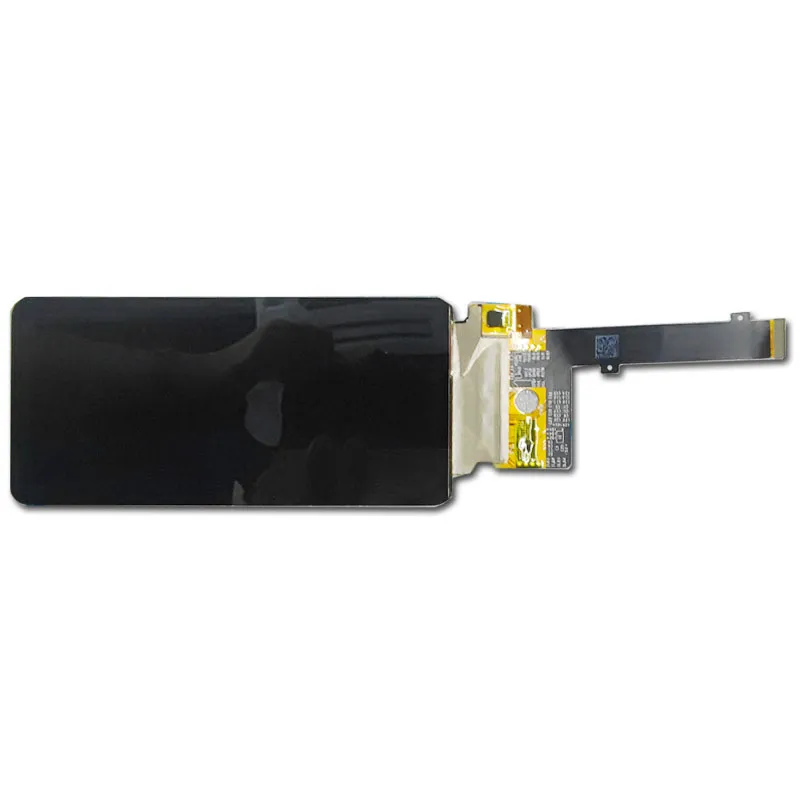

    6.39" Amoled Displays Features

    The 6.39 inch Amoled Display features a sizable viewing area, measuring diagonally at 6.39 inches, making it suitable for various applications. It offers a pixel resolution of 1080 x 2340, delivering sharp and detailed visuals ideal for high-definition content. The display utilizes a MIPI interface, enabling high-speed communication with microcontrollers and processors. With an impressive contrast ratio of 100,000, it provides exceptional depth and detail, enhancing the overall visual experience. Additionally, the typical luminance of 430 cd/m² ensures good visibility across different lighting conditions.



    6.39" Amoled Display Application

    This display is ideal for automotive applications, including dashboard and infotainment systems, where high-quality visuals are essential for navigation, entertainment, and information systems. It can also be seamlessly integrated into industrial devices, serving effectively in control panels and interfaces to provide clear visuals and touch interaction for monitoring and control tasks. Additionally, the display is well-suited for embedded systems and various custom electronics projects that require a high-quality display with interactive features, making it a versatile choice for a wide range of applications.

    6.39" Amoled Display Product Specifications

    Tamaño LCD (pulgadas) 6.39(Diagonal)
    Número de píxeles 1080(h)*2340(v)
    Pixel Pitch(um) 31.5(H)X63(V)
    Contorno Dimensión 69.84(W) ×150.42(H) ×0.643(D)
    Área activa 68.04(H) ×147.42(V)
    Tipo de pantalla AMOLED
    Interfaz MI PI
    View direction ALL
    Fuente de alimentación 3.3v
    Relación de contraste 100000
    Operation Temperature -20℃~70℃
    Luminancia 430(TYP.)
    Conductor IC RM692C9
    - -
    - -

    6.39" Amoled Soluciones a medida

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    6.39-Inch MIPI AMOLED Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 6.39-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Get the native pixel layout first, then try your menus and text at that layout before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed AMOLED, compare dark-scene legibility and how your static icons look in an extended run at the intended brightness. Use the listed 430 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
