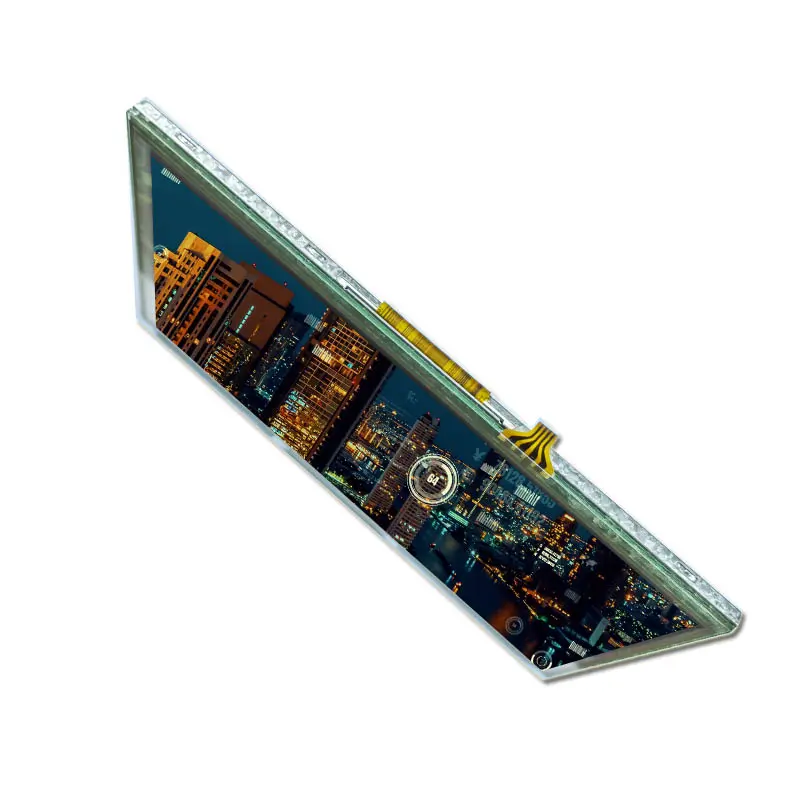

7 inch LCD Display with Resistive Touch 1024*600 RGB

SKU: DS40068
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

300

Compatible con pantallas táctiles:

Tipo de pantalla:

7 inch lcd display with resistive touch, 2 line, resolution 1024*600 Pixels for industrial control devices.

Solicitar precios por volumen







    Descripción

    7 inch LCD Display with Resistive Touch Features

    This is a standard 7-inch RGB 50-pin module with a 2-wire resistive touch, designed for industrial equipment display.
    If special structures or cables are required, please contact our sales team for a customized solution.
    With over 15 years of expertise in the LCD display industry, we specialize in providing complete TFT solutions (including production) for small, medium and large enterprises. We excel in offering display services for specialized sectors such as industrial control equipment and automotive medical applications.

    7'' TFT-LCD Display Module

    Número de modelo  91-07011-BH2
    Talla  7
    Resolución 1024*600
    Contorno Dimensión 164.9*100*3.5
    Área activa 154.21*85.92
    Brillo(cd/m²) 300
    Interfaz RGB
    Ver Dirección IPS
    Temperatura de funcionamiento -20℃ to 70℃
    Temperatura de almacenamiento -30℃ to 80℃
    Vida útil del LED 20000
    Soporte de pantalla táctil Resistive touch
    Relación de contraste 800:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    7" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    7-Inch 1024 × 600 RGB LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 7-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 1024 × 600 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 300 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluciones de exposición personalizadas

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    300

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
