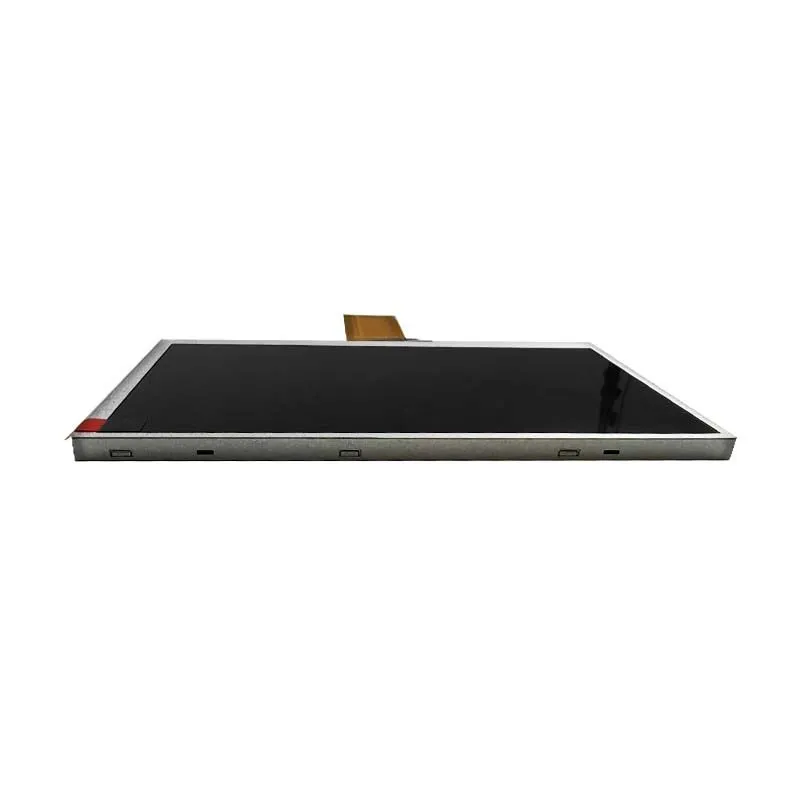

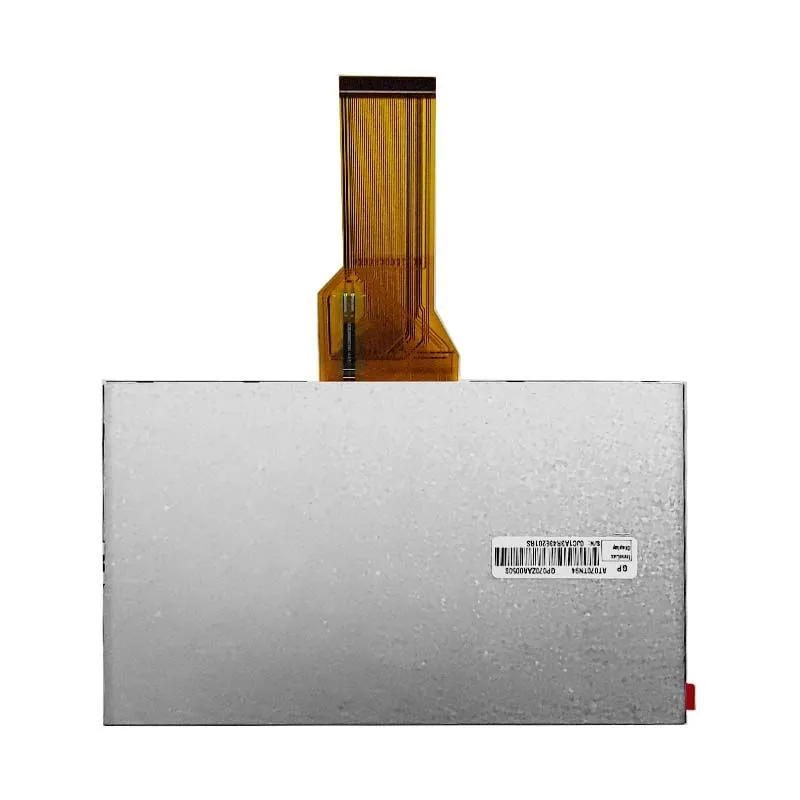

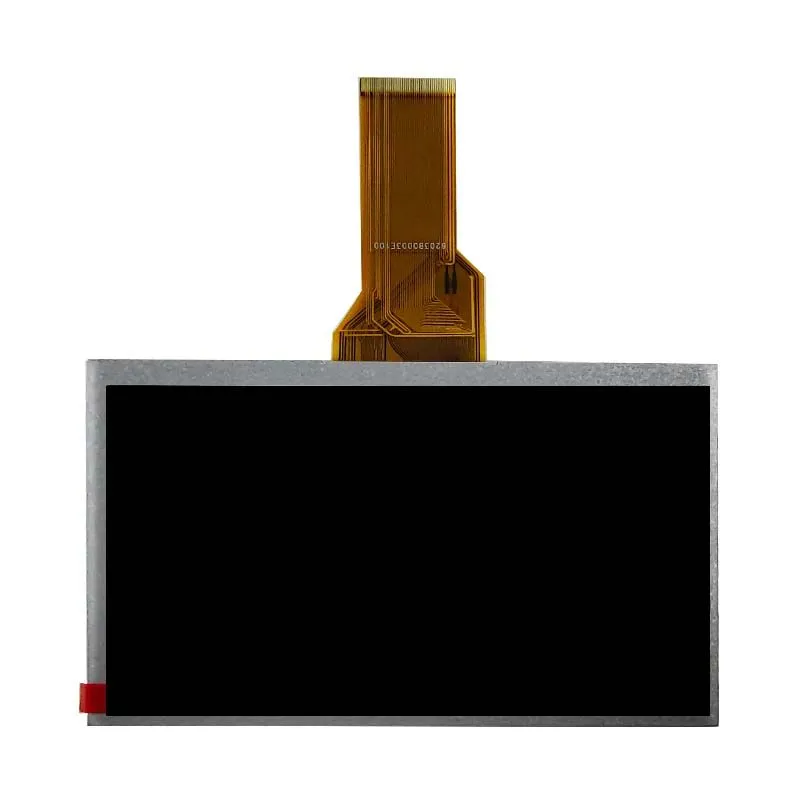

AT070TN94 Pantalla LCD de 7 pulgadas - 400cd/m² de brillo, funcionamiento a altas temperaturas (-30°C~85°C)

SKU: DS50213
Tamaño:

Número de modelo

T070TN94

Resolución:

Interfaz:

Temperatura de funcionamiento:

-30℃~ 85℃

Brillo (cd/m²):

400

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

Innolux AT070TN94 7" Sunlight-Readable LCD: 400cd/m² Brightness, -30°C~85°C Endurance for Industrial Automation & Outdoor Tech.

Solicitar precios por volumen







    Descripción

    AT070TN94 General Desription

    The Innolux AT070TN94 is a 7-inch TFT LCD designed for demanding applications, featuring 800×480 resolution and 400cd/m² high brightness for clear visibility under direct sunlight. With a TN panel offering 500:1 contrast ratio and a compact outline (164.9×100×6mm), it integrates seamlessly into space-constrained systems. Its industrial-grade design supports operation from -30°C to 85°C, ensuring reliability in extreme conditions. The RGB interface delivers stable signal transmission, while a low-power design (3.3V~16V) reduces energy consumption. Backed by 20,000-hour LED lifespan, this display is built for long-term deployment in automation, transportation, or outdoor digital signage without touchscreen distractions.



    Aplicación y rendimiento

    Engineered for rugged environments, the AT070TN94 excels in industrial control panels, heavy machinery HMI, and outdoor kiosks where temperature fluctuations and dust exposure are common. Its 70/70/50/70 viewing angles ensure readability from multiple positions in vehicle dashboards or medical monitoring devices. The anti-glare surface and 400cd/m² brightness combat sunlight interference in agricultural equipment or construction-site displays. With vibration resistance and wide voltage compatibility (3.3~16V), it reliably powers logistics tracking systems, factory automation, and HVAC controllers. The 6mm slim profile allows integration into portable field instruments or compact IoT terminals requiring durable visual feedback.

    7.0" Product Specifications

    Tamaño diagonal 7.0"
    Número de píxeles 800×480
    Luminancia 400
    Tamaño del módulo 164.9×100×6
    Área activa 154.08×85.92
    Dirección de visualización TN
    Ángulo de visión (U/D/R/L) 70/70/50/70
    Interfaz RGB
    Relación de contraste 500:1
    Temperatura de funcionamiento -30~85℃
    Temperatura de almacenamiento -30~85℃
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3/10.4/16.0/-7.0V
    Tipo de pantalla TFT en color

    Innolux LCD Display Soluciones a Medida

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Innolux AT070TN94 7-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux AT070TN94?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the Innolux AT070TN94?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Innolux AT070TN94?

    Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Innolux AT070TN94 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
