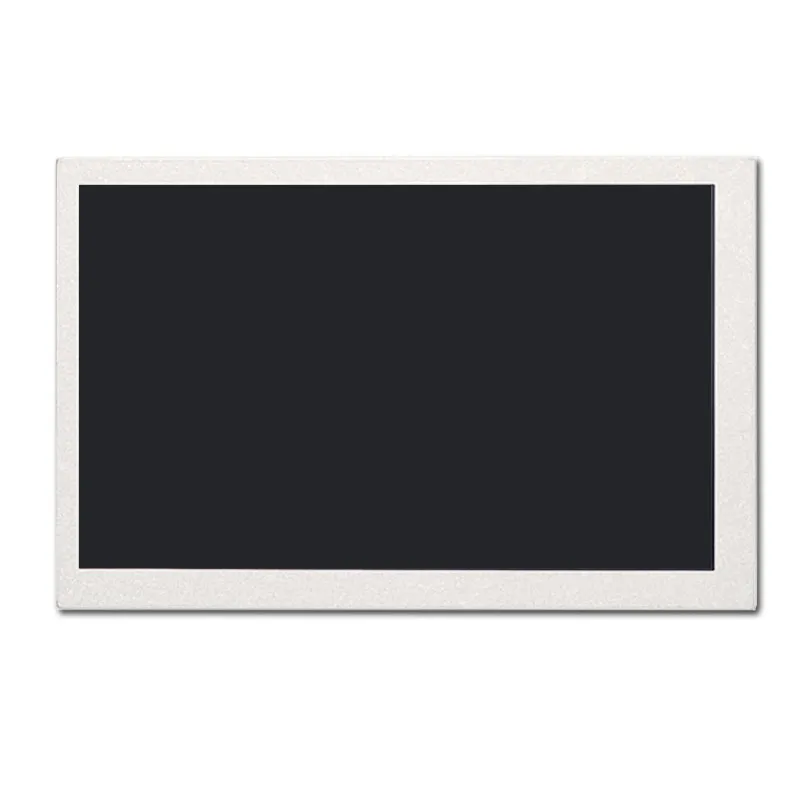

AUO G070VAN01.0 7" Industrial Display Screen - 800x480, 480nits, LVDS, -30~80°C

SKU: DS50116
Tamaño:

Número de modelo

G070VAN01.0

Resolución:

Interfaz:

Temperatura de funcionamiento:

-30℃~80℃

Brillo (cd/m²):

480

Compatible con pantallas táctiles:

Tipo de pantalla:

AUO G070VAN01.0 7-inch IPS LCD with 800x480 resolution, 480nits brightness, LVDS interface, wide operating temperature (-30~80°C), 50K-hour lifespan. Ideal for harsh environments.

Solicitar precios por volumen







    Descripción

    G070VAN01.0 General Desription

    The AUO G070VAN01.0 is a robust 7-inch IPS LCD panel engineered for industrial and outdoor applications requiring high reliability. With a resolution of 800×480 pixels and 480nits brightness, it delivers clear visibility even in direct sunlight or low-light conditions. Its ultra-wide operating temperature range (-30°C to 80°C) ensures stable performance in extreme environments, while the 50,000-hour lifespan minimizes maintenance costs.
    Key Features:
    High Brightness & Durability: 480nits anti-glare screen for outdoor readability.
    Extended Temperature Range: Operates reliably in -30°C to 80°C environments.
    Industrial-Grade Interface: LVDS signal compatibility for seamless integration.
    Long Lifespan: 50,000-hour MTBF ensures reduced downtime.



    G070VAN01.0 Application

    Industrial HMIs, outdoor kiosks, transportation systems, and ruggedized equipment.
    Applications demanding resistance to temperature fluctuations, dust, and vibration.
    This display combines cost-efficiency with rugged performance, making it a top choice for mission-critical systems. Contact us for customization and bulk pricing.

    G070VAN01.0 Product Specifications

    Tamaño diagonal 7.0"(Diagonal)
    Número de píxeles 800×480 Pixels
    Luminancia 480
    Tamaño del módulo 166.6(W)×107(H) ×10(D)
    Área activa 152.4(W)×91.44(H)
    Dirección de visualización IPS
    Ángulo de visión (U/D/R/L) 89/89/89/89
    Interfaz LVDS
    Relación de contraste 1300
    Temperatura de funcionamiento -30~80℃
    Temperatura de almacenamiento -30~80℃
    Vida útil del LED 50K
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3v
    Tipo de pantalla TFT en color

     BOE LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    AUO G070VAN01.0 7-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G070VAN01.0?

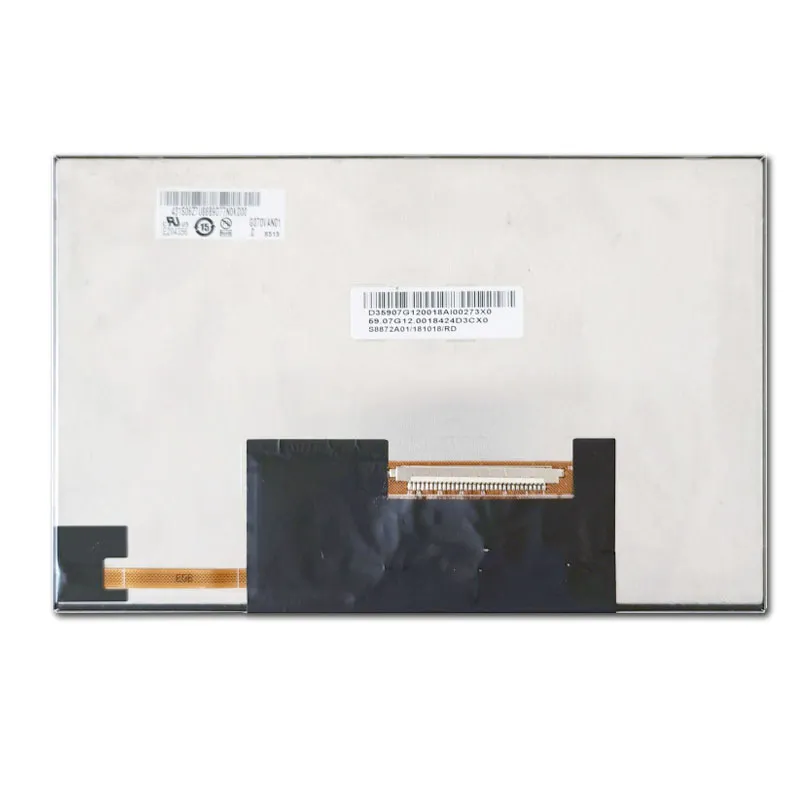

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G070VAN01.0?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G070VAN01.0 compare with the Innolux G070ACE-L01?

    Both catalog listings show 7 inches, 800 × 480 and LVDS. The catalog lists −30 °C to +80 °C for the AUO panel and −30 °C to +85 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux G070ACE-L01

    Is the AUO G070VAN01.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
