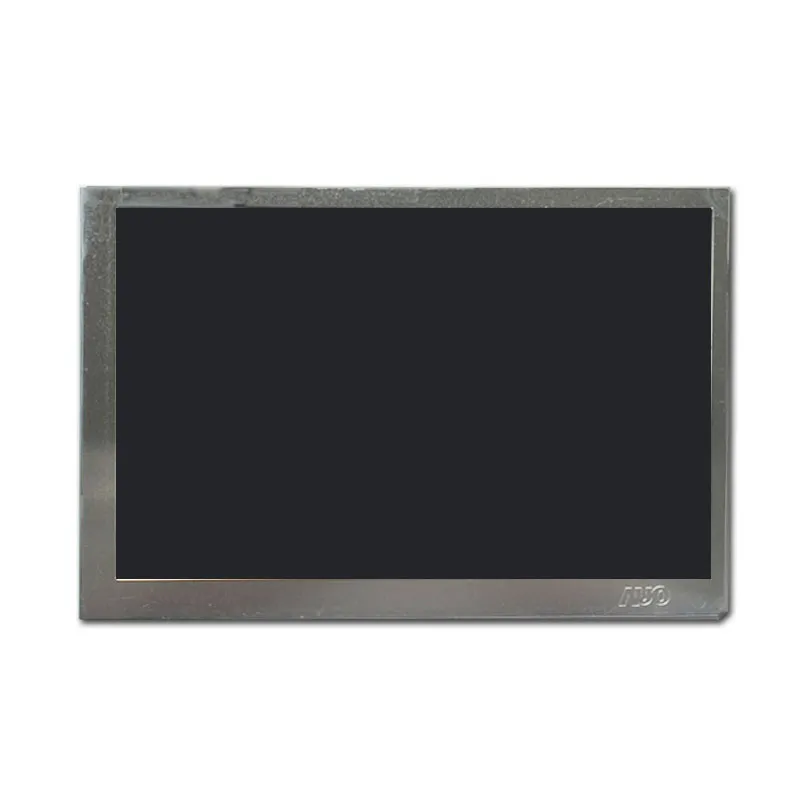

AUO LCD Display G070VW01 V0 7" - 800x480, 400nits, LVDS, -30~85°C

SKU: DS50118
Tamaño:

Número de modelo

G070VW01 V0

Resolución:

Interfaz:

Temperatura de funcionamiento:

-30℃~ 85℃

Brillo (cd/m²):

400

Compatible con pantallas táctiles:

Tipo de pantalla:

G070VW01 V0 7-inch AUO LCD Display: 800x480 resolution, 400nits brightness, LVDS interface, wide operating temperature (-30~85°C), 50K-hour lifespan.

Solicitar precios por volumen







    Descripción

    G070VW01 V0 General Desription

    The AUO G070VW01 V0 is a high-performance 7-inch TN LCD panel designed for industrial and outdoor applications demanding durability and reliability. With a resolution of 800×480 pixels and 400nits brightness, it ensures clear visibility in challenging lighting conditions, including direct sunlight. Engineered for extreme environments, it operates seamlessly across a wide temperature range of -30°C to 85°C and offers a lifespan of 50,000 hours (MTBF), reducing long-term maintenance costs.
    Key Features:
    High Brightness & Clarity: 400nits anti-glare screen for outdoor readability.
    Ultra-Wide Temperature Range: Stable performance in extreme cold (-30°C) and heat (85°C).
    Industrial-Grade Interface: LVDS compatibility ensures seamless integration with control systems.
    Robust Design: Resistant to vibration, dust, and humidity for harsh environments.



    G070VW01 V0 Application

    Industrial HMIs, outdoor kiosks, automotive dashboards, and ruggedized equipment.
    IoT devices, medical instruments, and energy systems requiring temperature resilience.
    This display combines cost-efficiency with rugged reliability, making it a top choice for mission-critical operations. Customization options and bulk pricing available.

    G070VW01 V0 Product Specifications

    Tamaño diagonal 7.0"(Diagonal)
    Número de píxeles 800×480 Pixels
    Luminancia 600
    Tamaño del módulo 170(W)×111(H) ×8(D)
    Área activa 152.4(W)×91.44(H)
    Dirección de visualización TN
    Ángulo de visión (U/D/R/L) 80/80/80/80
    Interfaz LVDS
    Relación de contraste 750
    Temperatura de funcionamiento -30~85℃
    Temperatura de almacenamiento -30~85℃
    Vida útil del LED 50K
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3v
    Tipo de pantalla TFT en color

    AUO LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    AUO G070VW01 V0 7-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G070VW01 V0?

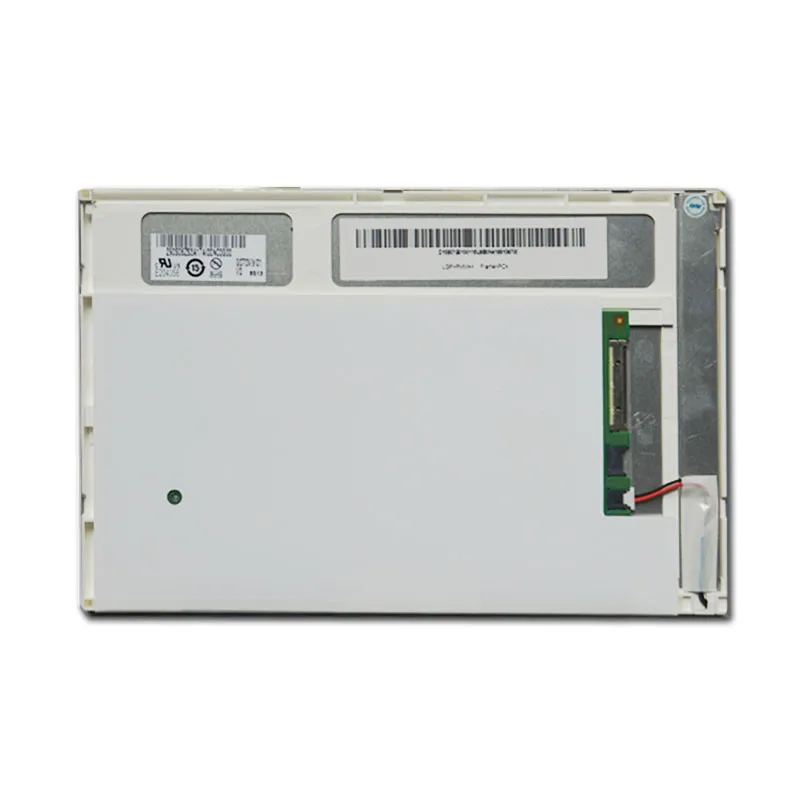

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G070VW01 V0?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G070VW01 V0?

    Use 800 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G070VW01 V0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    G070VW01 V0

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -30℃~ 85℃

    Brillo (cd/m²):

    400

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
