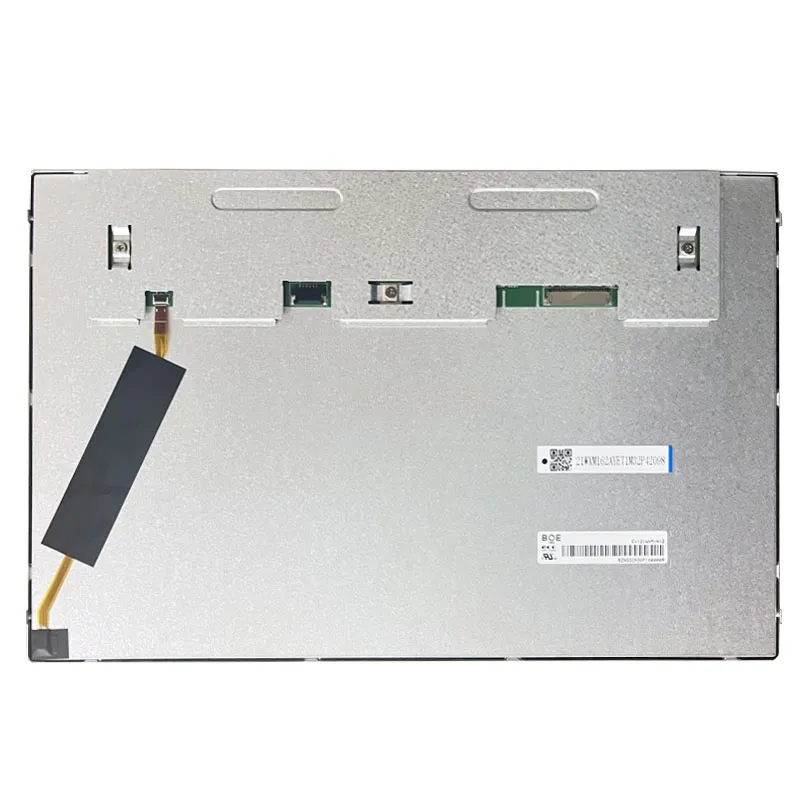

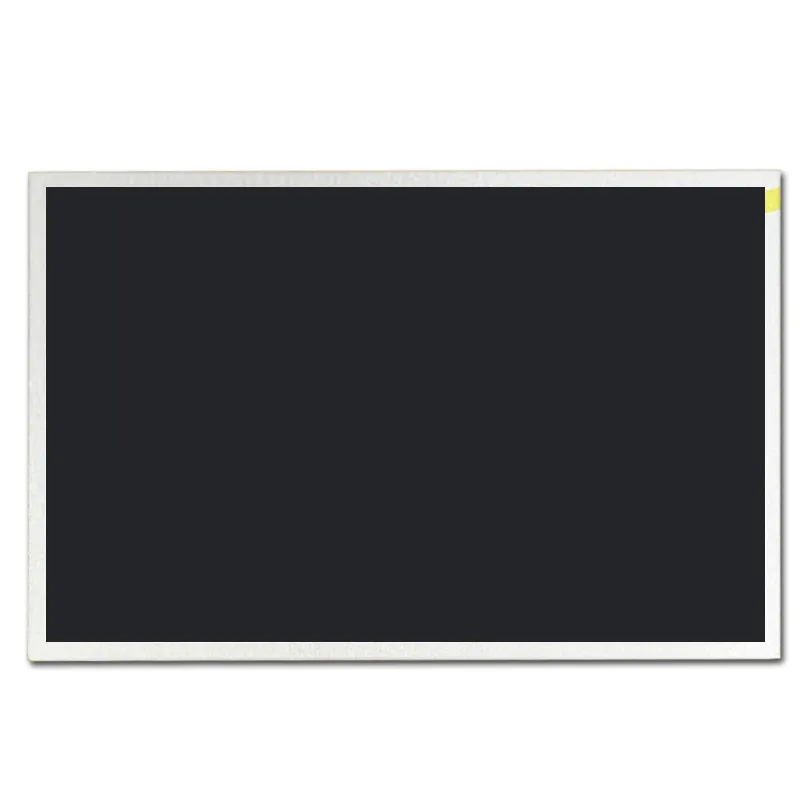

BOE EV121WXM-N12 12.1" IPS LCD Panel 1280x800 500nits LVDS -20~70°C

SKU: DS50208
Tamaño:

Número de modelo

V121WXM-N12

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

500

Compatible con pantallas táctiles:

Tipo de pantalla:

BOE EV121WXM-N12: 12.1" IPS industrial panel, 1280x800 resolution, 500nits brightness, LVDS interface, -20~70°C operation

Solicitar precios por volumen







    Descripción

    EV121WXM-N12 General Desription

    The BOE EV121WXM-N12 is a 12.1-inch IPS industrial-grade LCD engineered for R&D teams developing HMI equipment, medical devices, and outdoor POS systems. With 500nits high luminance and 1280x800 WXGA resolution, it delivers 178° wide viewing angles and sunlight readability for mission-critical applications.



    EV121WXM-N12 Features

    Premium Optical Performance: 1000:1 contrast ratio with 8-bit color depth (16.7M colors)
    Extended Durability: 50,000-hour LED lifespan (tested at 25°C, 70% brightness)
    Signal Integrity: LVDS interface with ±1.5kV ESD protection (IEC 61000-4-2 compliant)
    Thermal Resilience: Validated for cold-start operation at -20°C and continuous 70°C ambient

    EV121WXM-N12 Product Specifications

    Tamaño diagonal 12.1"(Diagonal)
    Número de píxeles 1280×800 Pixels
    Luminancia 500
    Tamaño del módulo 277.7(H)×180.6(V) ×9.2(D)
    Área activa 261.12(W)×163.2(H)
    Dirección de visualización IPS
    Ángulo de visión (U/D/R/L) 85/85/85/85
    Interfaz LVDS
    Relación de contraste 1200
    Temperatura de funcionamiento -20~70℃
    Temperatura de almacenamiento -30~80℃
    Vida útil del LED 50K
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3v
    Tipo de pantalla TFT en color

     BOE LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    BOE EV121WXM-N12 12.1-Inch LCD Replacement FAQ

    How do I confirm that I need the BOE EV121WXM-N12?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 12.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the BOE EV121WXM-N12?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the BOE EV121WXM-N12 compare with the AUO G121EAN01.2?

    Both catalog listings show 12.1 inches, 1280 × 800 and LVDS. The catalog lists −20 °C to +70 °C for the BOE panel and −30 °C to +85 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G121EAN01.2

    Is the BOE EV121WXM-N12 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    V121WXM-N12

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    500

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
