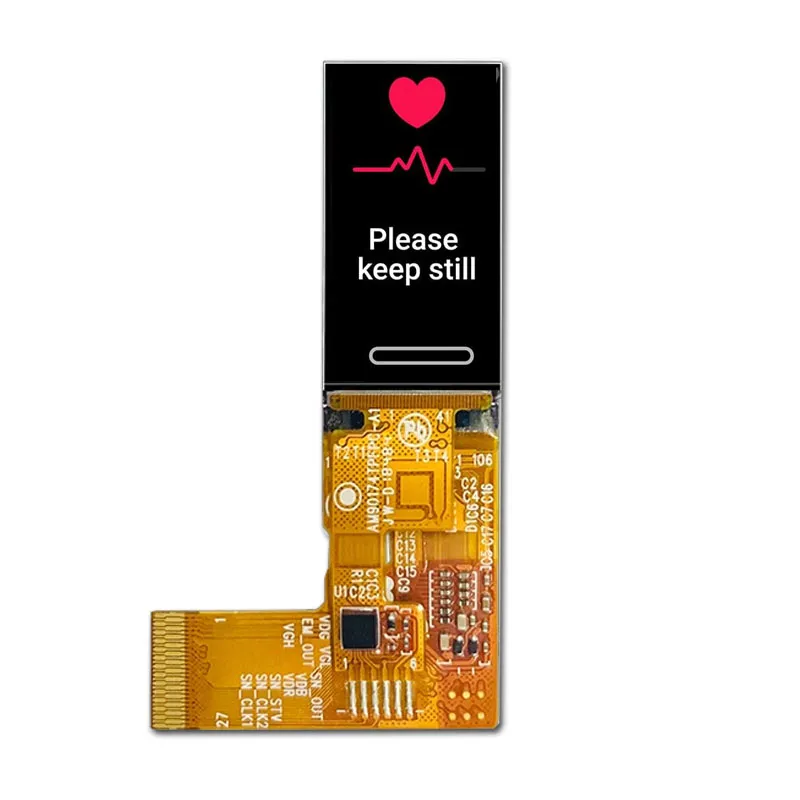

Custom AMOLED Display 0.95 inch High Contrast OLED Display for Wearables

SKU: DS10025
Tamaño:

Resolución:

Interfaz:

, ,

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

450

Compatible con pantallas táctiles:

Tipo de pantalla:

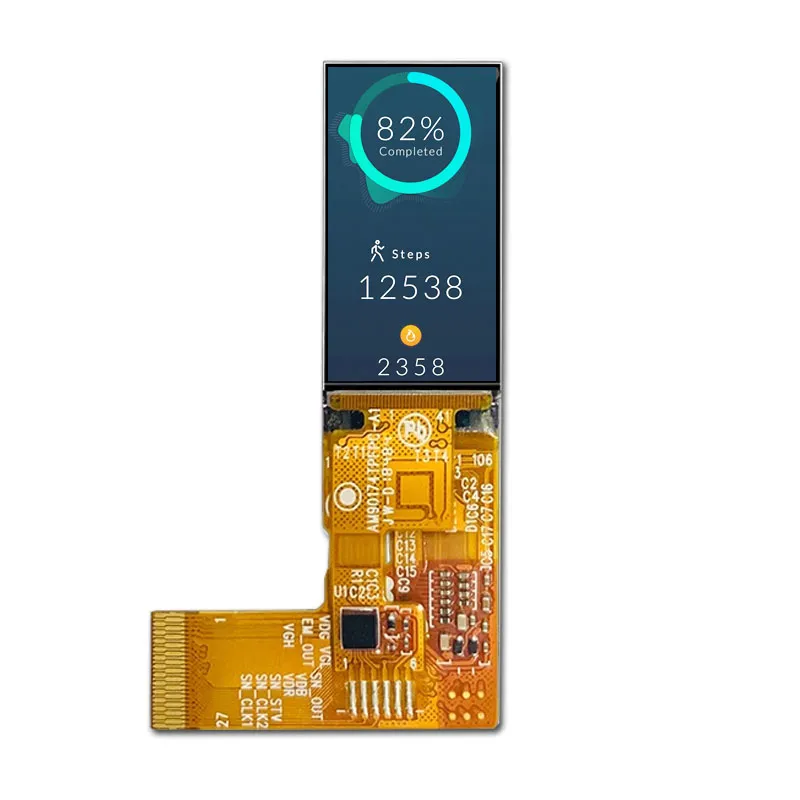

0.95 inch Custom AMOLED Display offering resolution 120*240, with Oncell Touch function , 1000000:1 high contrast ratio,  0.5mm super thickness LCD, SPI/MIPI/I2C Optional Interface

Solicitar precios por volumen







    Descripción

    0.95" Amoled Displays Features

    The 0.95 inch custom AMOLED display features vibrant colors, high contrast ratios, and deep blacks, enhancing clarity in various lighting conditions. Its compact size makes it ideal for wearables, where space is limited but visibility is crucial. The display offers a high contrast ratio, ensuring clear visibility and readability for both outdoor and indoor use. Utilizing OLED technology, it lights up individual pixels for energy efficiency, resulting in improved battery life for wearable devices. Additionally, the customizable design allows for tailored specifications such as resolution, interface compatibility, and form factor, while its low power consumption is optimized for extended battery life, making it perfect for prolonged use between charges.



    0.95" Amoled Display Application

    The AMOLED display is highly versatile, making it ideal for various wearable devices. In smartwatches, it provides a clear, high-contrast interface for time, notifications, and health data, while its battery efficiency extends usage due to minimal power consumption. For fitness trackers, the high contrast ensures visibility in different lighting conditions, displaying real-time metrics like distance and calories burned with clarity. In healthcare devices, it accurately shows vital signs for continuous monitoring and can be customized for personalized health solutions.

    0.95" Amoled Display Product Specifications

    Tamaño LCD (pulgadas) 0.95(Diagonal)
    Número de píxeles 120*240
    Pixel Density(ppi) 282
    Dimensiones exteriores (mm) 12.8 ×27.35 ×0.5
    Área activa (mm) 10.8 ×21.6
    Tipo de pantalla AMOLED
    Interfaz SPI/MI PI/I2C
    Color Gamut DCI-P3 Typ. 100%
    Profundidad de color 24/16 bits
    Relación de contraste 1000000
    Power Consumption(mW) 50
    Refresh Rate 60/AOD15
    Luminance(Cd/m2) 450
    TP Oncell
    - -

    0.95" Amoled Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    0.95-Inch 120 × 240 AMOLED Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 0.95-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 120 × 240 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    The catalog mentions SPI and I²C. Send us your host model and ask us to confirm the role and wiring of each connection on the configuration you plan to order. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed AMOLED, compare dark-scene legibility and how your static icons look in an extended run at the intended brightness. Use the listed 450 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluciones de exposición personalizadas

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    , ,

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    450

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
